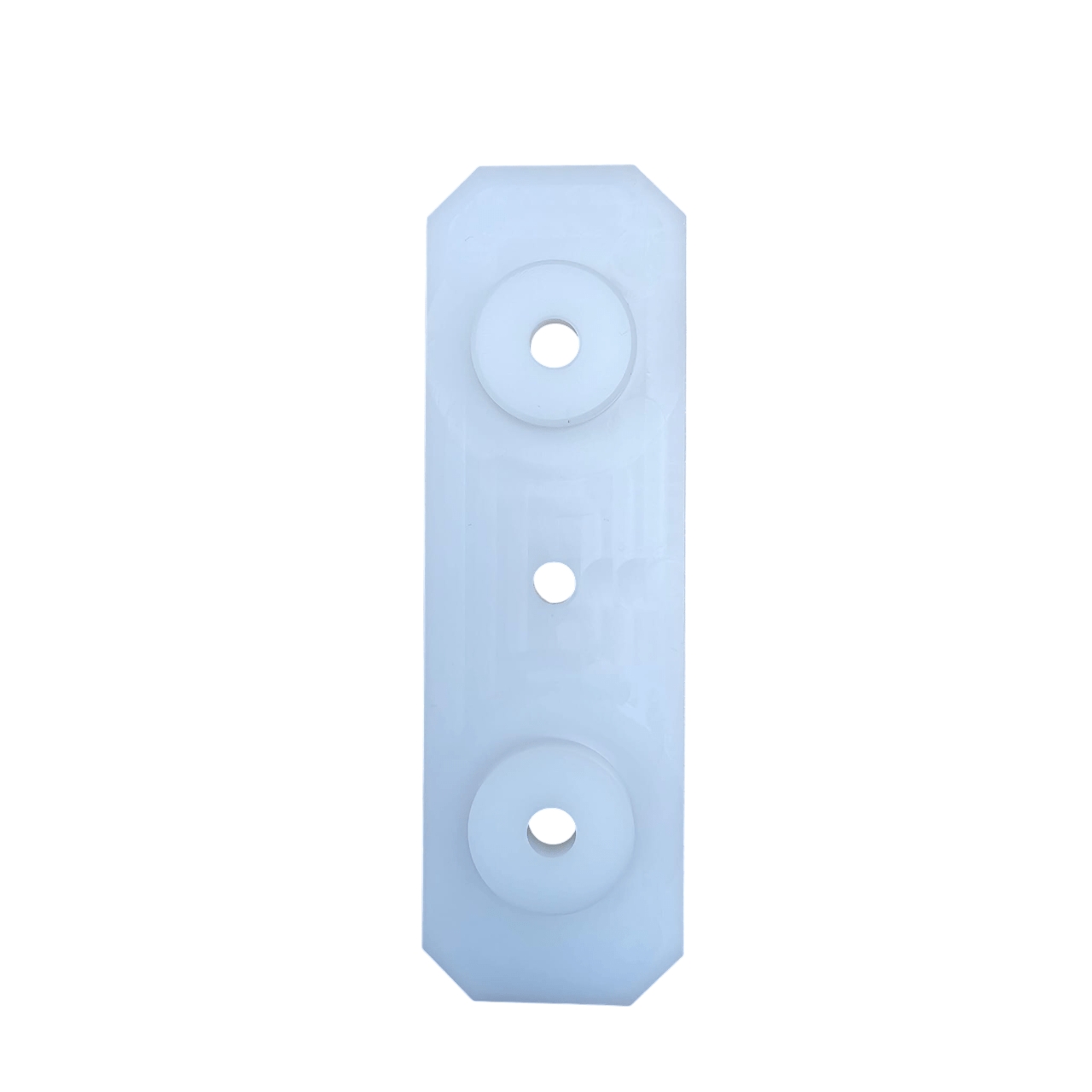

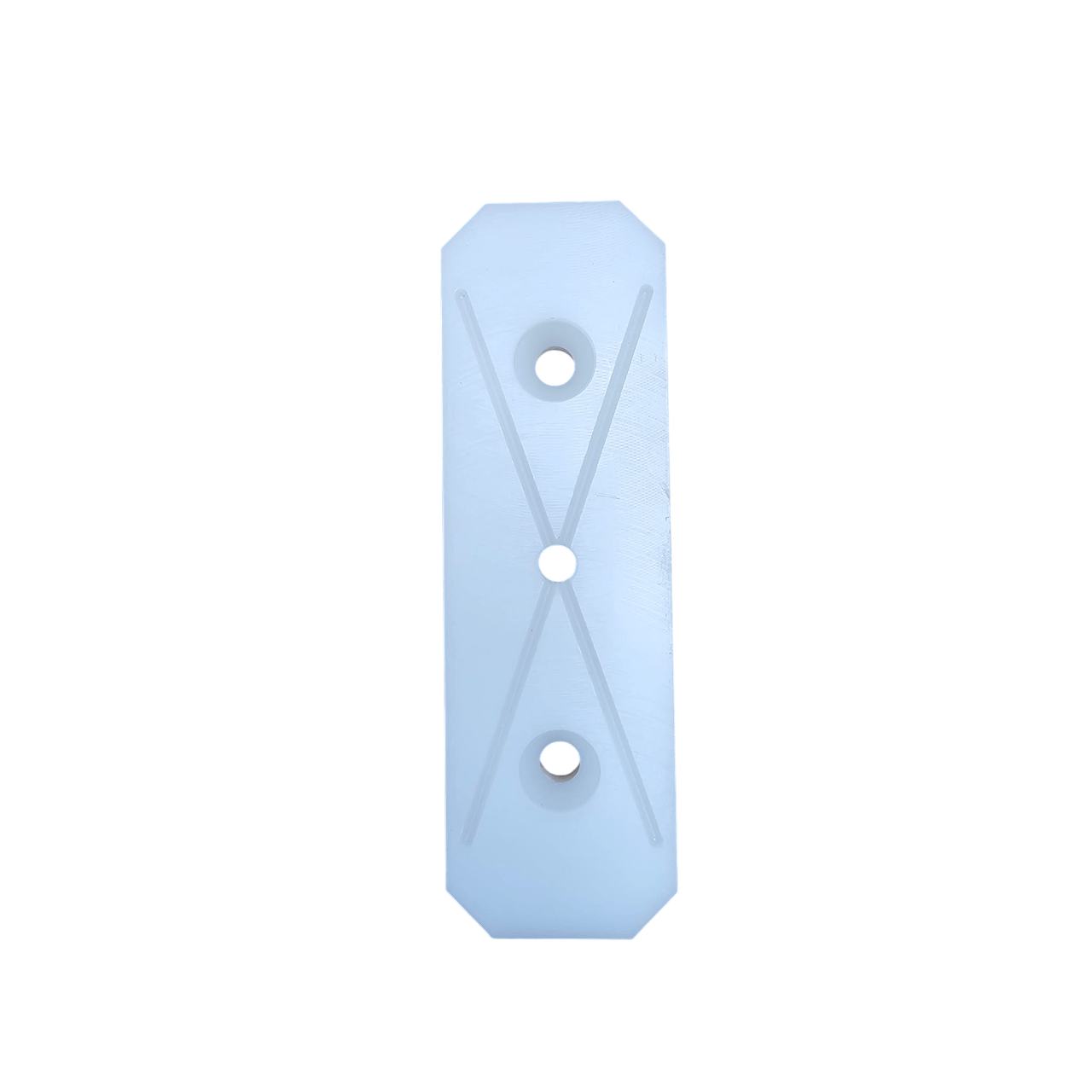

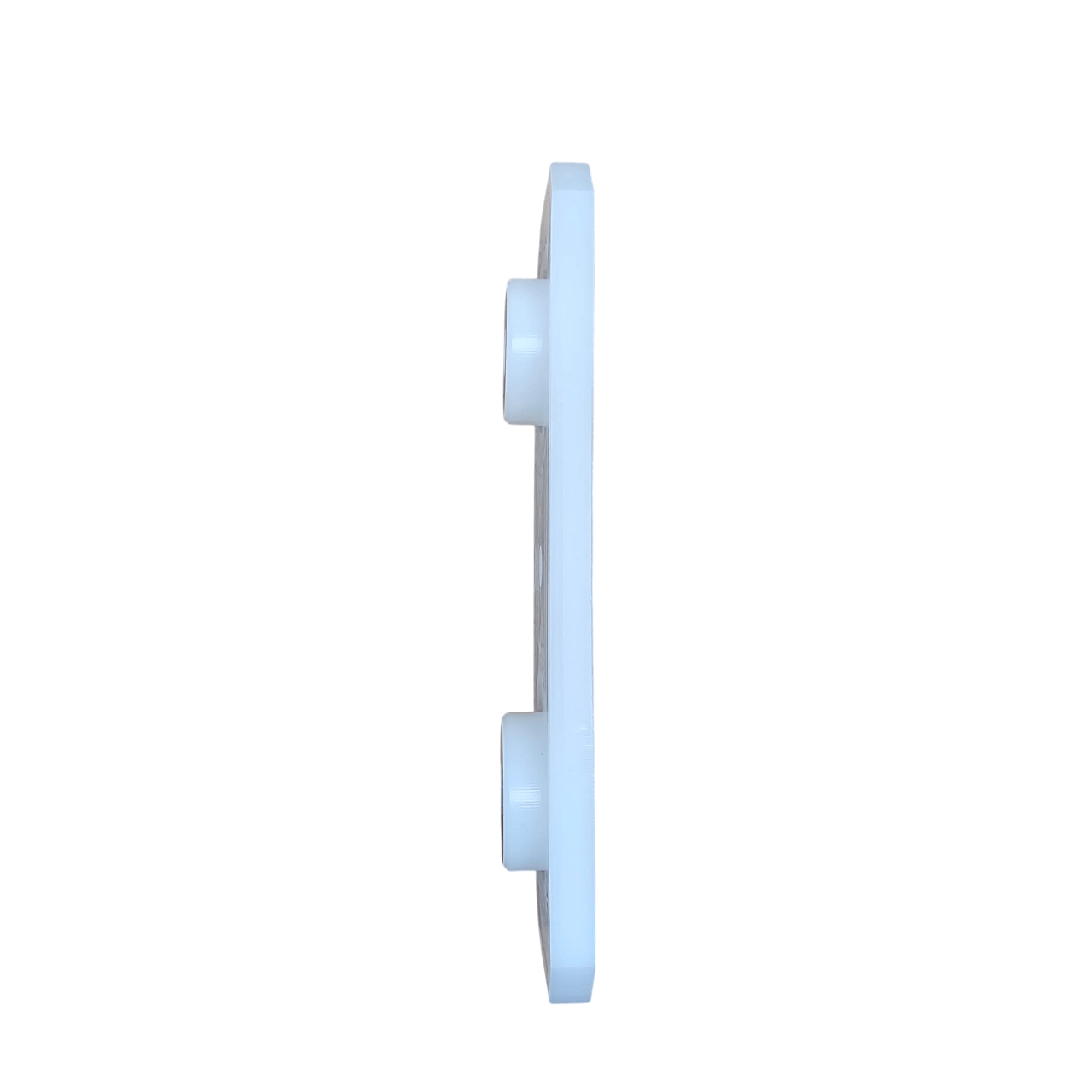

Side Shift Carriage Wear Pad Type B - Doosan D35C

Wear Pad

QUANTITY: 1

Fits

• DOOSAN D35C


Specifications

• Type wear pad: type B
• Subtype wear pad: type B1
• Total length L1 (mm): 160
• Smallest measurement L2 (mm): 16
• Measurement in between L3 (mm): 50
• Number of holes: 3
• Diameter hole D2 (mm): 8
• Distance between furthest pins/holes L4 (mm): 59
• Number of grooves: 1
• Closed side present: NO
• Lip present: NO
• Number of pins: 2
• Material of the wear pad: plastic
