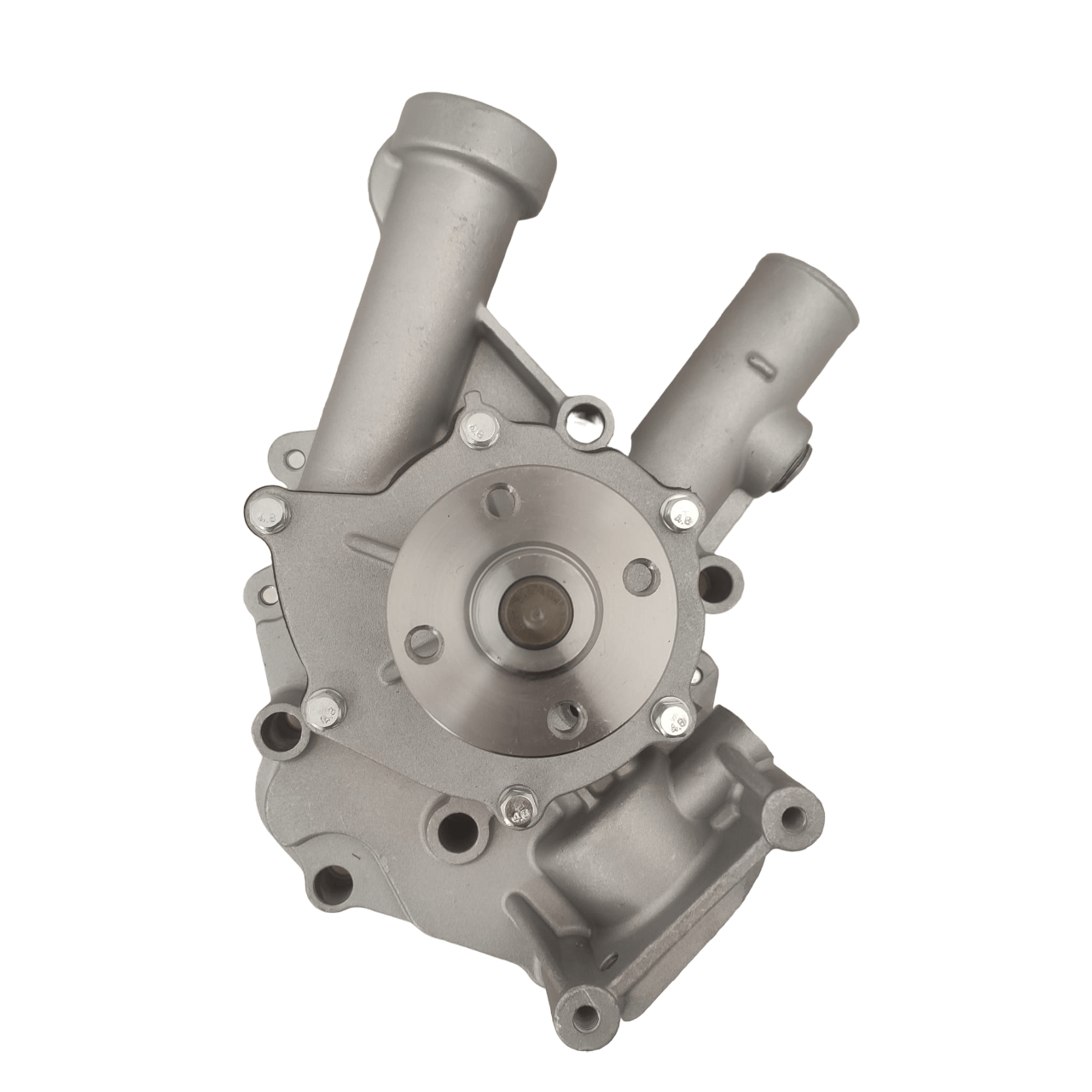

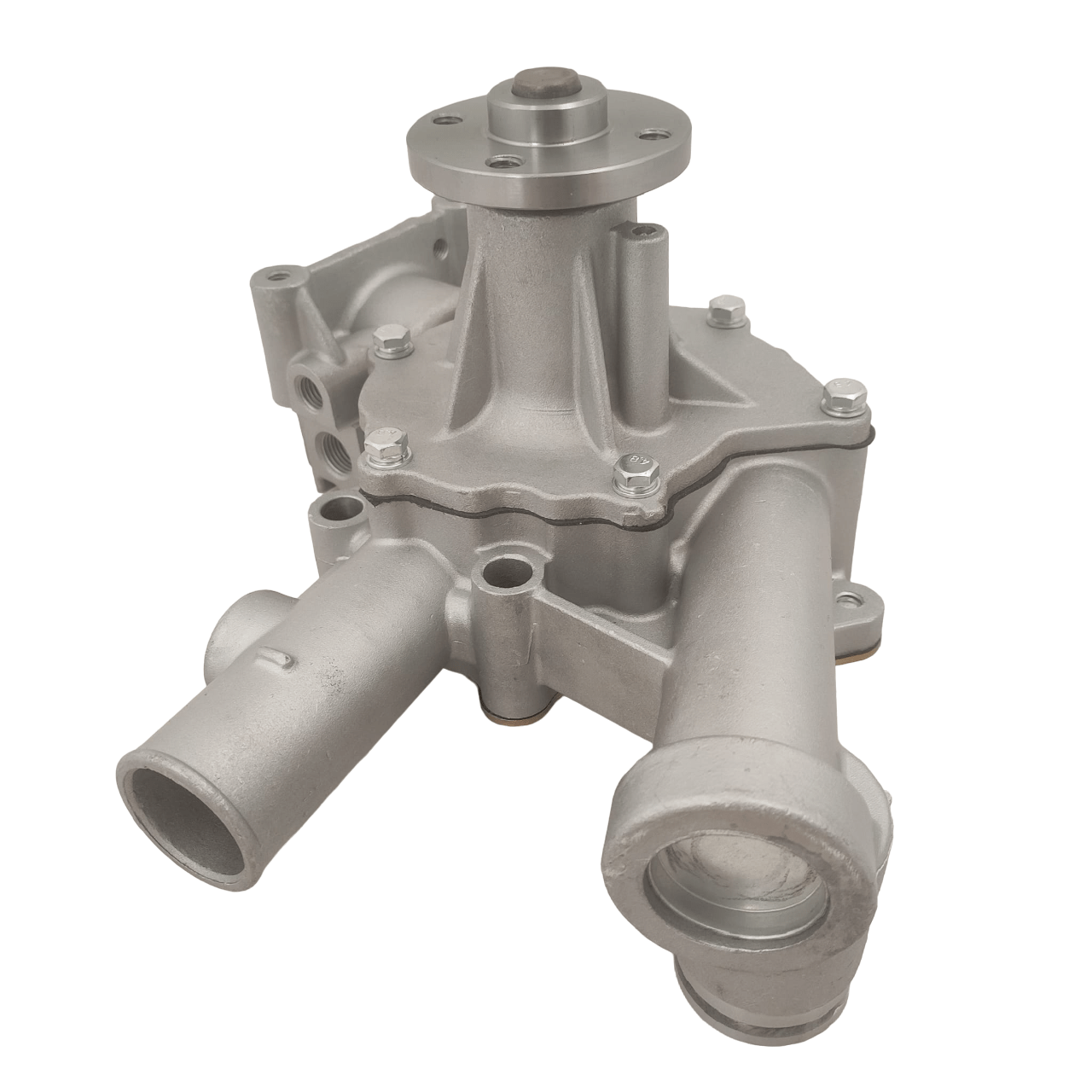

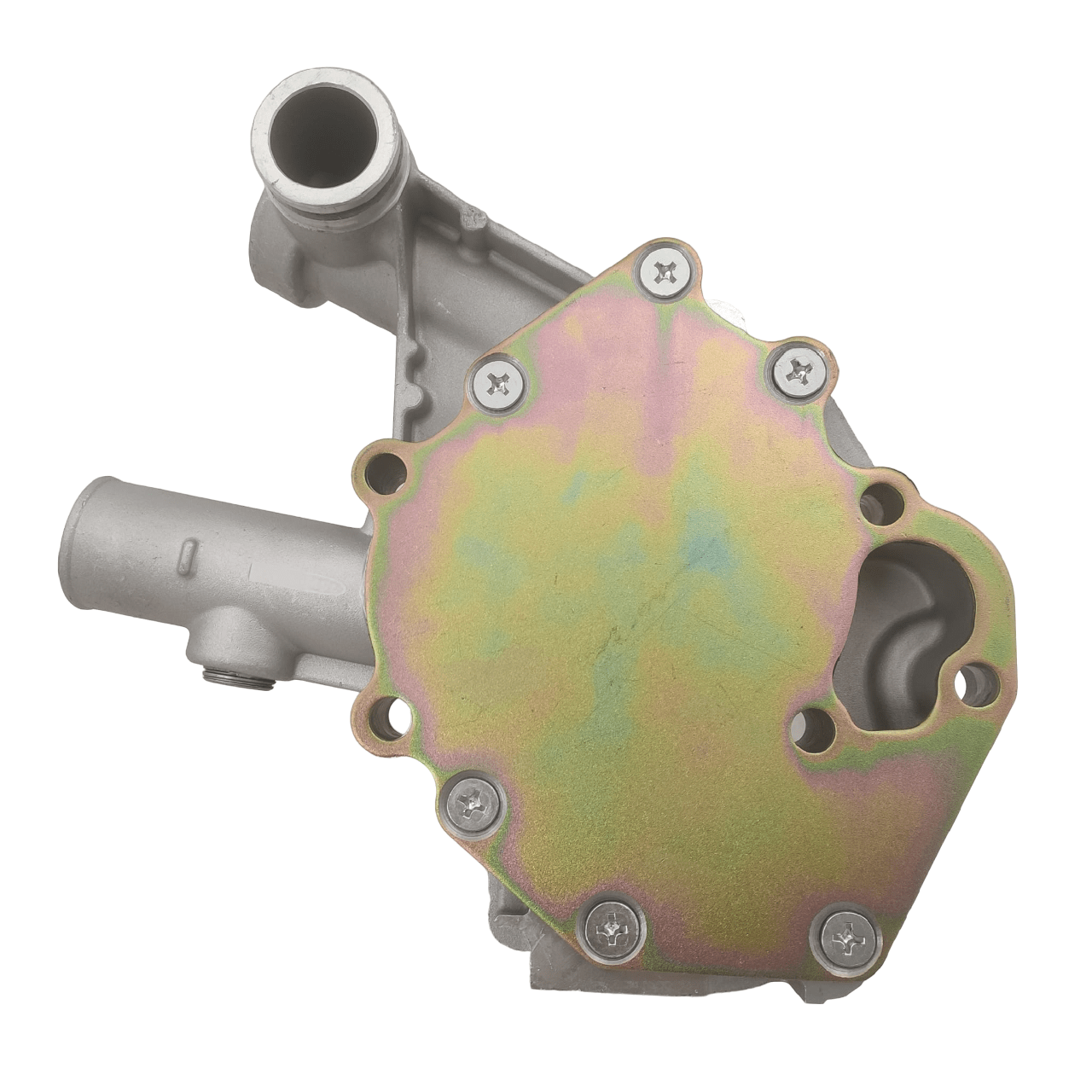

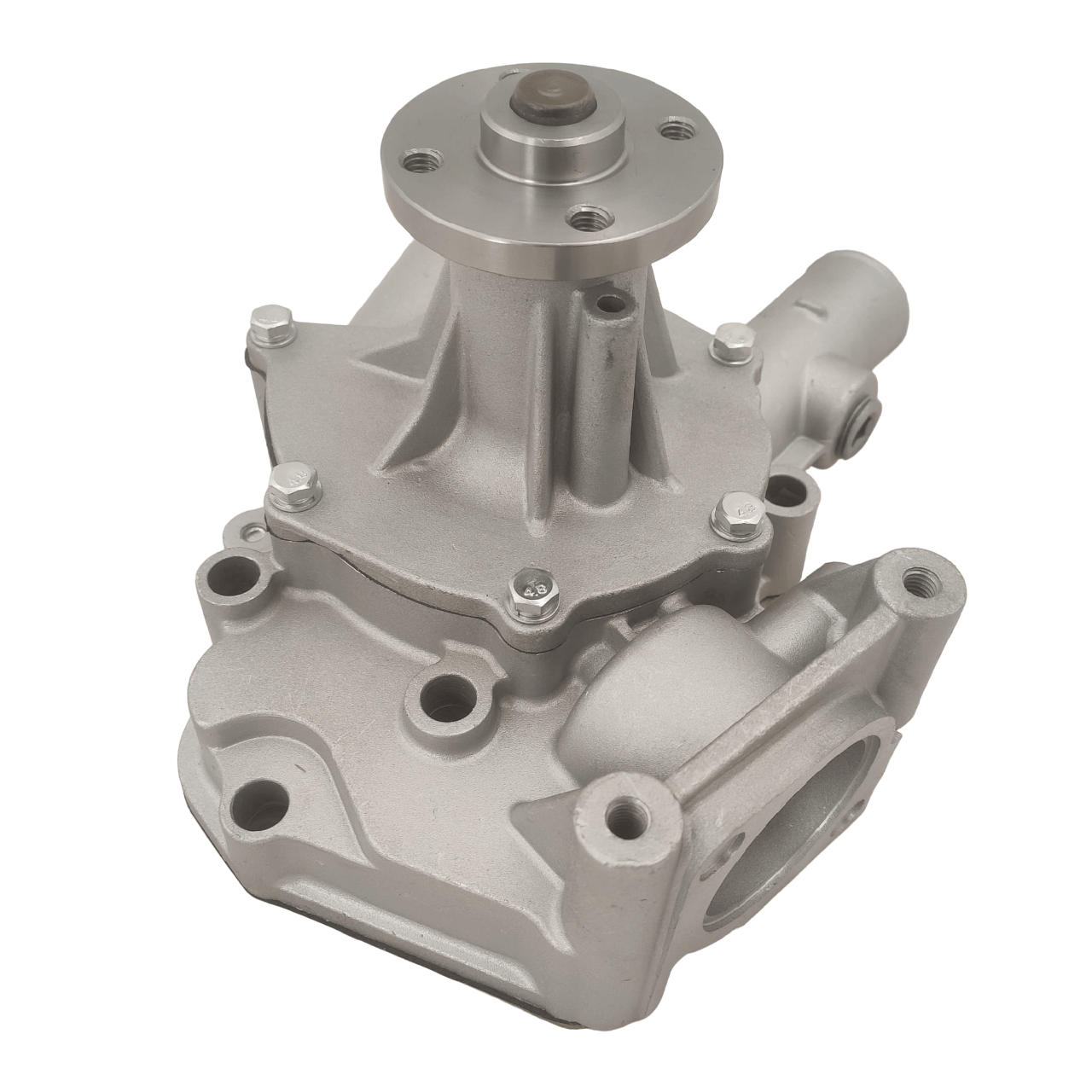

Water Pump For Toyota 3Z Engine

Specifications

• Sort waterpump: flange
• Type waterpump: A1
• Total height H1 (mm): 149
• Maximum length L1 (mm): 285
• Shaft diameter D1 (mm): 15.9
• Neck diameter D2 (mm): 28.5
• Flange/gear or pully diameter D3 (mm): 68
• Total number of mounting holes in the flange (holes + thread): 4
• Number of threads: 4
• Biggest thread TA1: M8
• Metric pitch Pm1 (mm): 1.25
• Smallest centre distance of nearest mounting holes C1 (mm): 37
• Biggest centre distance of nearest mounting holes C2 (mm): 37
• Thread of mounting cooling fan present: NO
• Gasket included: NO

The most important cause of a premature water pump malfunction is an excessive belt tension. Such defects fall outside the warranty. Please observe the manufacturer's guidelines when adjusting the belt.
