• Donaldson Transmission Filter, Spin-On - Donaldson P574731
1 1

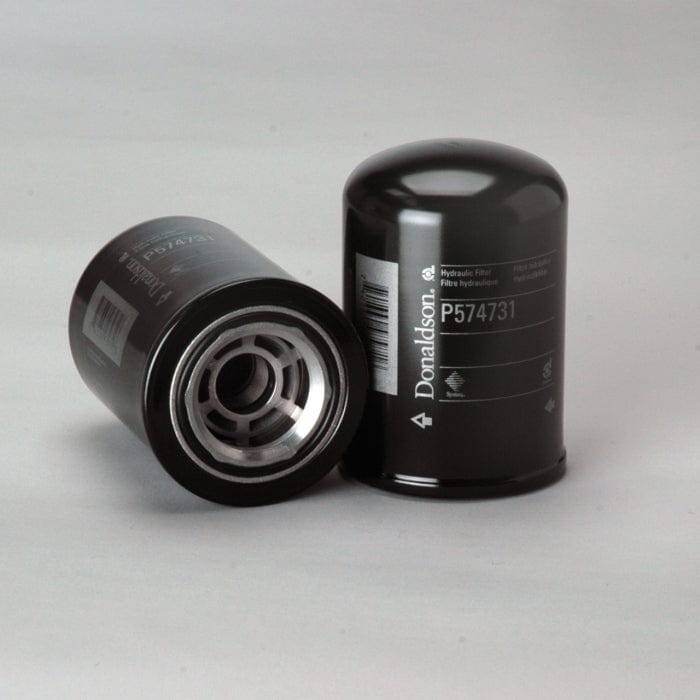

Transmission Filter, Spin-On - Donaldson P574731

Transmission Filter, Spin-On - Donaldson P574731

£46.00
£46.00
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P574731

Transmission Filter, Spin-On
View full details

Specifications

Attributes

  • Outer Diameter: 97.03 mm (3.82 inch)
  • Thread Size: 2-16 UN
  • Length: 138.78 mm (5.46 inch)
  • Gasket OD: 70.15 mm (2.76 inch)
  • Gasket ID: 63.1 mm (2.48 inch)
  • Efficiency Beta 1000: 23 micron
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 1.5 bar (22 psi)
  • Media Type: Synthetic
  • Style: Spin-On

Packaged Dimensions

  • Packaged Length: 0.108 m (4.30 inch)
  • Packaged Width: 0.105 m (4.20 inch)
  • Packaged Height: 0.168 m (6.70 inch)
  • Packaged Weight: 0.840 kg (1.85 lb)
  • Packaged Volume: 0.002 m3 (0.07 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-06
  • HTS Code: 8421298090
  • UPC Code: 742330979716

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
AVELING-BARFORD ABP3001583 short clearance version
BERGERAT MONNOYEUR E6814 short clearance version
BOBCAT 246262
BOBCAT 247051
BOBCAT 2370631
BOBCAT 234099
BOMAG 31901320 short clearance version
CASE/CASE IH 87214 short clearance version
CASE/CASE IH D87214 short clearance version
CASE/CASE IH D146735 short clearance version
CASE/CASE IH 146735 short clearance version
CASE/CASE IH 84550621 short clearance version
CATERPILLAR 814780 short clearance version
CATERPILLAR 3I1980 short clearance version
CLAAS 322998 short clearance version
CLAAS 3229980
CLARK 246262 short clearance version
CLARK 6247050 short clearance version
CLARK 8106 short clearance version
CLARK 2370631 short clearance version
CLARK 234099
CLARK 119936862 short clearance version
CLARK 247051
CLARK,J.L. 246262 short clearance version
CLARK,J.L. 234099 short clearance version
CLARK,J.L. 247051 short clearance version
CLARKE 247050 short clearance version
DANA 10058664
DANA 247050
EUCLID 2340990 short clearance version
EUCLID 11993686 short clearance version
EUCLID 11992886 short clearance version
FENWICK 19982301 short clearance version
FIAT 906041007 short clearance version
FIAT 73118171 short clearance version
FIAT 79104646 short clearance version
GRADALL 90204732 short clearance version
GREYFRIARS HS7634 short clearance version
GREYFRIARS HS7639 short clearance version
HAMM 281875
HEDEN 29802075 short clearance version
HITACHI 906041007 short clearance version
HITACHI 73118171 short clearance version
HOIST LIFTTRUCK MANUFACTURING P00052
HOIST LIFTTRUCK MANUFACTURING P00052
IMPERIAL CV102708
INGERSOLL RAND 58886136 short clearance version
INTRUPA 83285 short clearance version
INTRUPA IF4037 short clearance version
JCB 246262 short clearance version
JCB 04110147 short clearance version
JCB 4110147 short clearance version
JLG 90204732 short clearance version
KALMAR 9234580449 short clearance version
KALMAR 9210970002 short clearance version
KALMAR 9210280004 short clearance version
KOMATSU 9831967
LOESING 20527 short clearance version
LOESING 20527
MACLEAN ENGINERING & MKTG. CO. 1010385 short clearance version
MANITOU 108668 short clearance version
MCCORMICK MCD146735 short clearance version
NEW HOLLAND 906041007
NEW HOLLAND 73118171
ORENSTEIN & KOPPEL 8004659
SYSTEMS MATERIAL HANDLING CL247050 short clearance version
TAMROCK 4697505
TAMROCK 4697505 short clearance version
TAMROCK 88308129
TAMROCK 04697505 short clearance version
TAMROCK 85187419
UNITED CENTRAL INDUSTRIAL SUPP 323264 short clearance version
UP LIFTING VERTICAL S.A. 5490060009
VME 2340990 short clearance version
VME 11993686 short clearance version
VME 119936862 short clearance version
VME 11992886 short clearance version
VOLVO 247050 short clearance version
VOLVO 234099 short clearance version
VOLVO 2340990 short clearance version
VOLVO 119936862 short clearance version
VOLVO 4720309 short clearance version
VOLVO 11992886 short clearance version
VOLVO 11993686 short clearance version

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
CLAAS RANGER 911T - TELEHANDLER RANGER PERKINS 4.236T -
