• Donaldson Stack Pipe, Curved 5 In (127 Mm) Od X 24 In (610 Mm) Chrome - Donaldson J024751
1 1

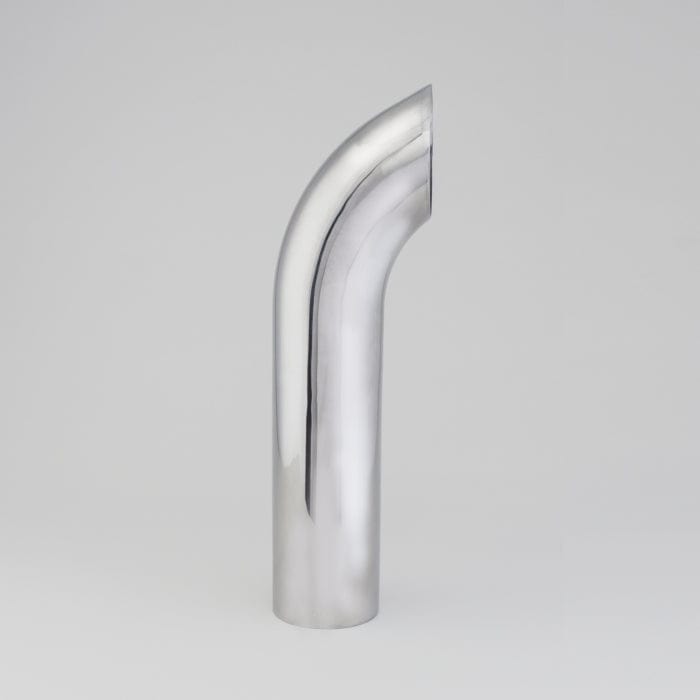

Stack Pipe, Curved 5 In (127 Mm) Od X 24 In (610 Mm) Chrome - Donaldson J024751

Stack Pipe, Curved 5 In (127 Mm) Od X 24 In (610 Mm) Chrome - Donaldson J024751

£133.80
£133.80
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson J024751

Stack Pipe, Curved 5 In (127 Mm) Od X 24 In (610 Mm) Chrome
Wall Thickness 1.65 mm
Length 24.00 inch (609.6 mm)
Inlet Diameter 5.00 inch (127 mm)
Material Chrome
Connection OD
Style Curved
View full details

Specifications

Attributes

  • Wall Thickness: 1.65 mm
  • Length: 609.6 mm (24.00 inch)
  • Inlet Diameter: 127 mm (5.00 inch)
  • Material: Chrome
  • Connection: OD
  • Style: Curved

Packaged Dimensions

  • Packaged Length: 0.628 m (25.10 inch)
  • Packaged Width: 0.185 m (7.40 inch)
  • Packaged Height: 0.133 m (5.30 inch)
  • Packaged Weight: 2.874 kg (6.33 lb)
  • Packaged Volume: 0.016 m3 (0.57 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 125850-06
  • HTS Code: 8708929900
  • UPC Code: 742330053195

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
A P PARTS 24751
ACRAFIT 50CS224C
DYNAFLEX 25P50024CP
EAGLE TRUCK PRODUCTS AG524K
FREIGHTLINER DNJ024751
HEAVY DUTY MFG 350124CP
NELSON 89046C
RIKER AA50024PL
RIKER CSP50024PL
STEMCO 2421404
TRUCKEX 824722
TRUCKEX 824751
WALKER MANUFACTURING 29202
