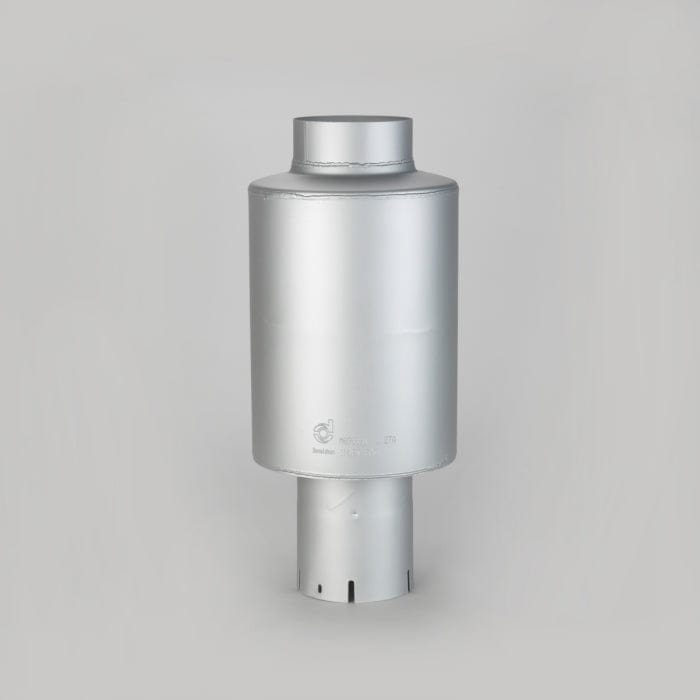

Spark Arrestor - Donaldson M090091
Spark Arrestor - Donaldson M090091
Regular price
£365.75
Regular price
Sale price
£365.75
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson M090091
Spark Arrestor| Inlet Diameter | 5.02 inch (127.63 mm) |
| Outlet Diameter | 5.02 inch (127.63 mm) |
| Body Diameter Maximum | 9.00 inch (228.6 mm) |
| Body Length | 11.78 inch (299.2 mm) |
| Overall Length | 20.69 inch (525.5 mm) |
Share
Collapsible content
Specifications
Attributes
- Inlet Diameter: 127.63 mm (5.02 inch)
- Outlet Diameter: 127.63 mm (5.02 inch)
- Body Diameter Maximum: 228.6 mm (9.00 inch)
- Body Length: 299.2 mm (11.78 inch)
- Overall Length: 525.5 mm (20.69 inch)
Packaged Dimensions
- Packaged Length: 0.585 m (23.38 inch)
- Packaged Width: 0.235 m (9.38 inch)
- Packaged Height: 0.238 m (9.50 inch)
- Packaged Weight: 7.264 kg (16.00 lb)
- Packaged Volume: 0.033 m3 (1.17 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 125850-08
- HTS Code: 8708923500
- UPC Code: 742330005071
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| A P PARTS | 3695 | |
| A P PARTS | 3695Q | |
| AGCO | 595707M91 | |
| AGCO | T0909026H | |
| AP EXHAUST PRODUCTS INC | 3695 | |
| APE INDUSTRI AB | 3695 | |
| ATLAS COPCO | 1619631801 | |
| ATLAS COPCO | FA00031639 | |
| AWD | SI1517 | |
| BADGER | 76054143 | |
| CASE/CASE IH | 12440471 | |
| CASE/CASE IH | NM090091 | |
| CASE/CASE IH | S228672 | |
| CATERPILLAR | 1042175 | |
| CATERPILLAR | 300104102 | |
| CENTURY II | 3227Q16D1 | |
| CHARDONNET | 7409009100 | |
| CLARK | 1517515 | |
| CLARK,J.L. | 1517515 | |
| CRANE CARRIER | 21095 | |
| CRANE CARRIER | 2100164 | |
| DART | FCM090091 | |
| DETROIT DIESEL | DM090091 | |
| DRESSER | MB0715 | |
| DYNAFLEX | 86500 | |
| EAGLE TRUCK PRODUCTS | E750 | |
| EAGLE TRUCK PRODUCTS | 750 | |
| EUCLID | 1517515 | |
| EUCLID | M1517515 | |
| FORD | 26624 | |
| FRANKLIN | 1504415 | |
| FREIGHTLINER | DNFCM090091 | |
| FREIGHTLINER | DNM090091 | |
| FWD | 00496696 | |
| FWD | 496696 | |
| GENERAC | 0F0904 | |
| GINAF | OG0000096052 | |
| GINAF | OG0000093039 | |
| GRADALL | X5103064 | |
| GRADALL | 85403161 | |
| GROVE | SKB830318 | |
| HAVAM | HD2260 | |
| HEAVY DUTY MFG | SA500 | |
| HITACHI | 503375 | |
| HURRICANE COMPRESSOR | 62548 | |
| INGERSOLL RAND | 36876076 | |
| INTERNATIONAL | DCM090091 | |
| IVECO | 935952 | |
| KENWORTH | D45000242 | |
| KENWORTH | FMC090091 | |
| KENWORTH | FCM090091 | |
| KOEHRING | 125669 | |
| LEROI | 78287 | |
| LIEBHERR | 10411959 | |
| LOESING | 21100 | |
| LOESING | 021100 | |
| MACK | 2ME247 | |
| MACK | 2ME384 | |
| MACK | 2191M090091 | |
| MAREMONT | ZF605 | |
| MERCEDES-BENZ | DNFCM090091 | |
| MORBARK | 29323041 | |
| NACCO MATERIALS | S00977470042 | |
| NELSON | 49150A | |
| OSHKOSH | 111641B | |
| OSHKOSH | 1116418 | |
| P & H | 27Q241 | |
| PETERBILT | FCM090091 | |
| RENAULT VI | 5430127349 | |
| RIKER | SA500 | |
| RIKER | SA5009 | |
| RIKER | MR500 | |
| SANDVIK | 64558024 | |
| STEIGER | 2621064 | |
| STEMCO | 2622050 | |
| STEMCO | 2621064 | |
| SULLIVAN PALATEK | 050170900013 | |
| TEREX | 27Q241 | |
| TEREX | 12440471 | |
| TESSI TRUCK EXHAUST INC | D150008 | |
| TESSI TRUCK EXHAUST INC | 150008 | |
| TIM | 1042175 | |
| TRACKMOBILE | 1020997 | |
| TRUCKEX | 3695 | |
| VERSATILE | 26624 | |
| VOLVO | 27138776 | |
| VOLVO | 237010001 | |
| VOLVO | 237013601 | |
| WABCO | MB0715 | |
| WALGAHN-MOTORENTECHN | 00810304 | |
| WALGAHN-MOTORENTECHN | 810304 | |
| WALKER MANUFACTURING | 21584 | |
| WESTERN STAR TRUCK | 237013407 |
