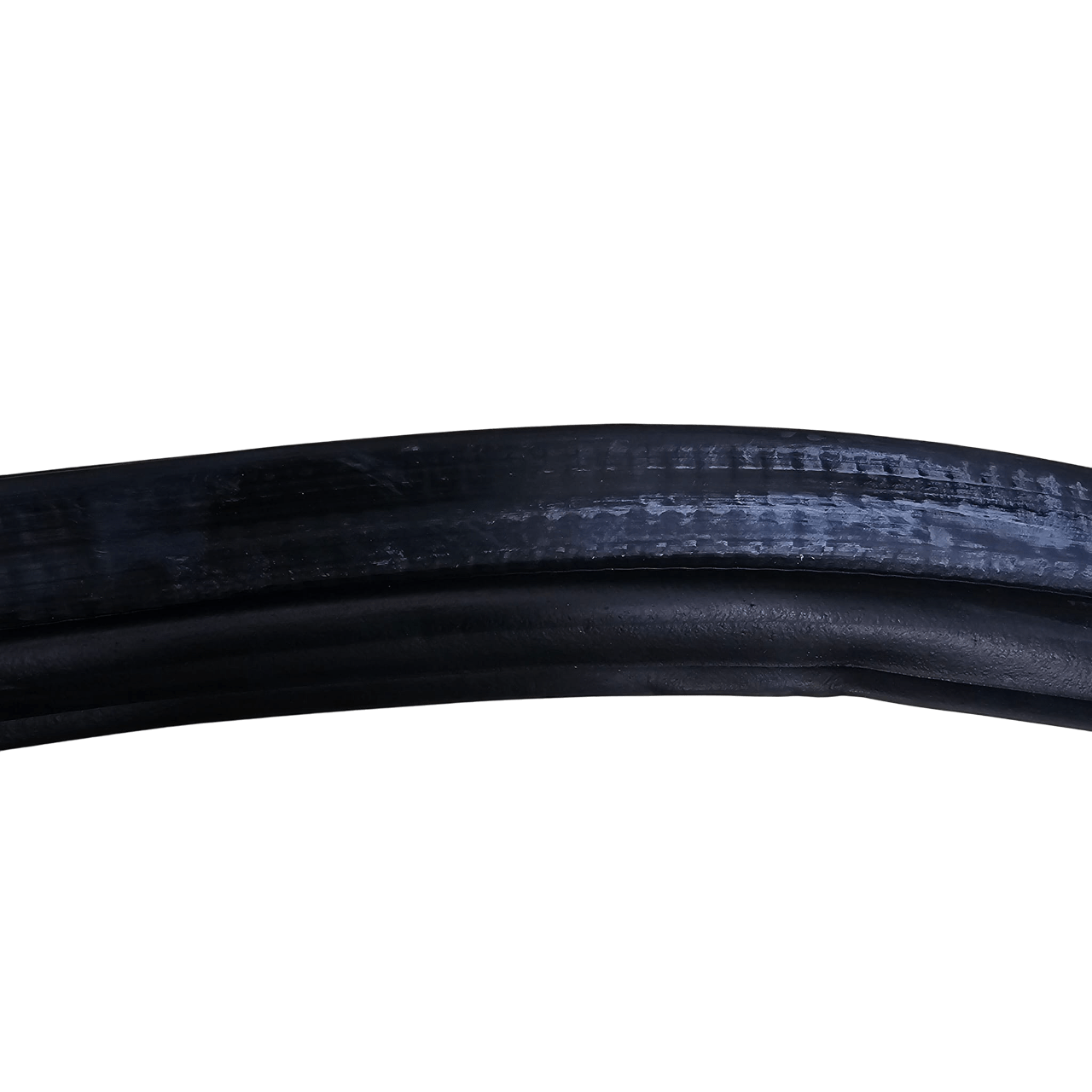

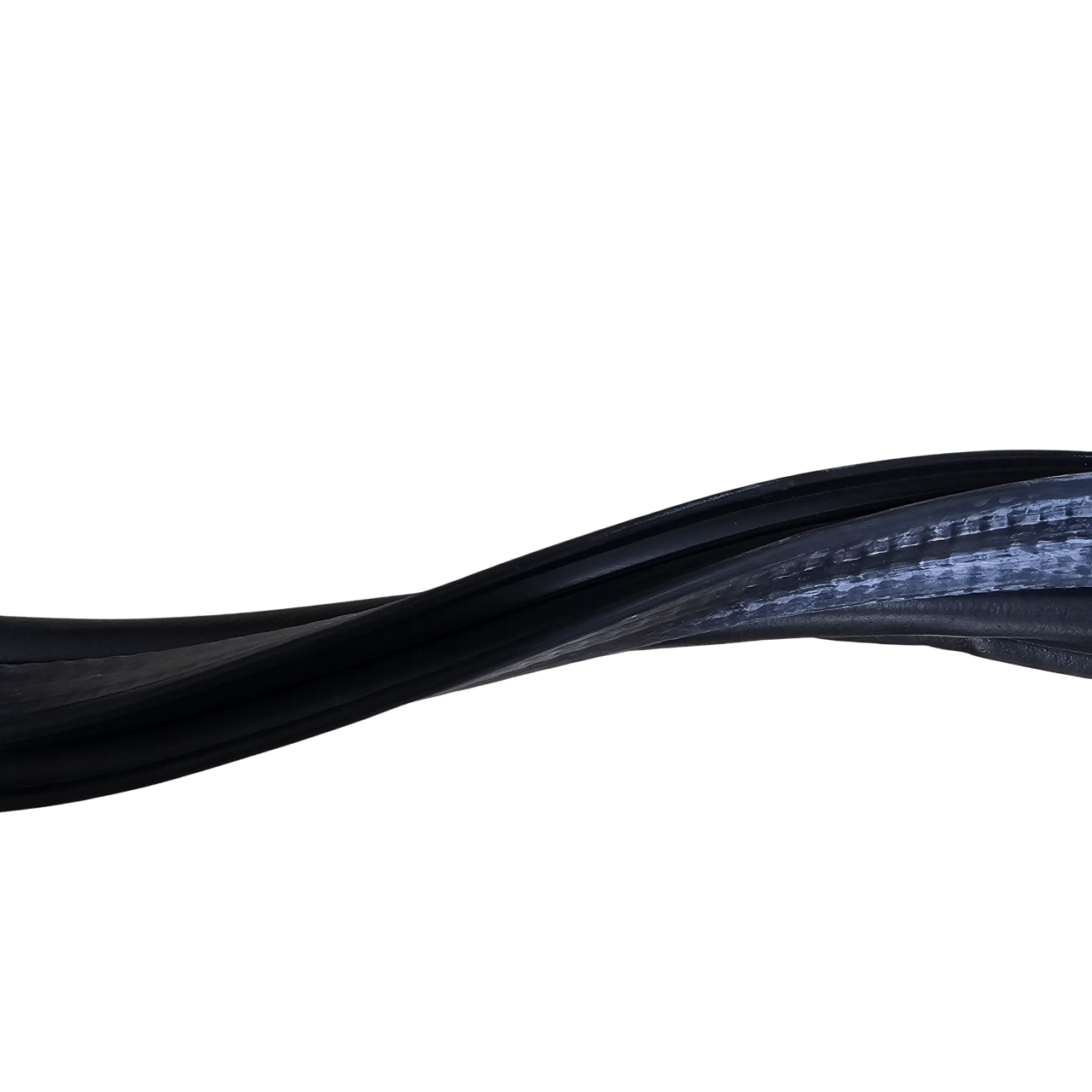

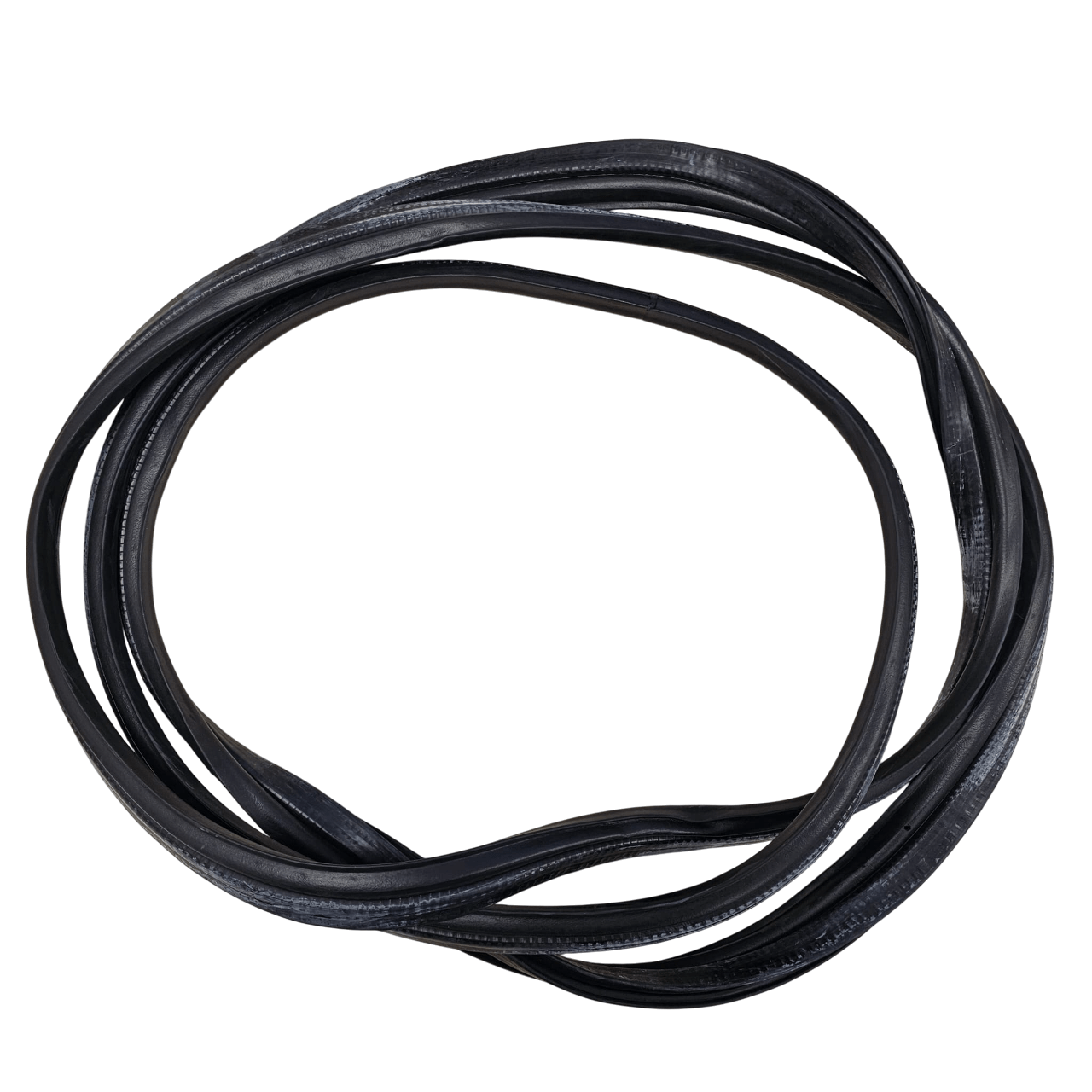

Bonnet Rubber Sealing Profile - Doosan D25S D30S D35C

Rubber EPDM Sealing Profile with reinforced clamping profile

Fits

• DOOSAN D25S
• DOOSAN D30S
• DOOSAN D35C


Specifications

• Material of the profile: EPDM
• Type of fixation: clamp
• Type of sealing: bubble gasket
• Position of the sealing: top
• Reinforcement material: metal
• Butyl glue present: NO
• Preformed: NO
• Reinforced: YES
• Number of bubble gaskets: 1
• Number of flipper gaskets on bubble gasket: 1
• Number of internal Lips: 4
• Total height H4 (mm): 32
• Total width W2 (mm): 14
• Height clamp H2 (mm): 11.2
• Minimum Clamping Range (mm): 1
• Maximum Clamping Range (mm): 3
• Height bubble gasket H3 (mm): 20.8
• Width bubble gasket W1 (mm): 14
• Weight: 1.049
