• Donaldson Resonator, 4 In (102 Mm) - Donaldson M090362
1 1

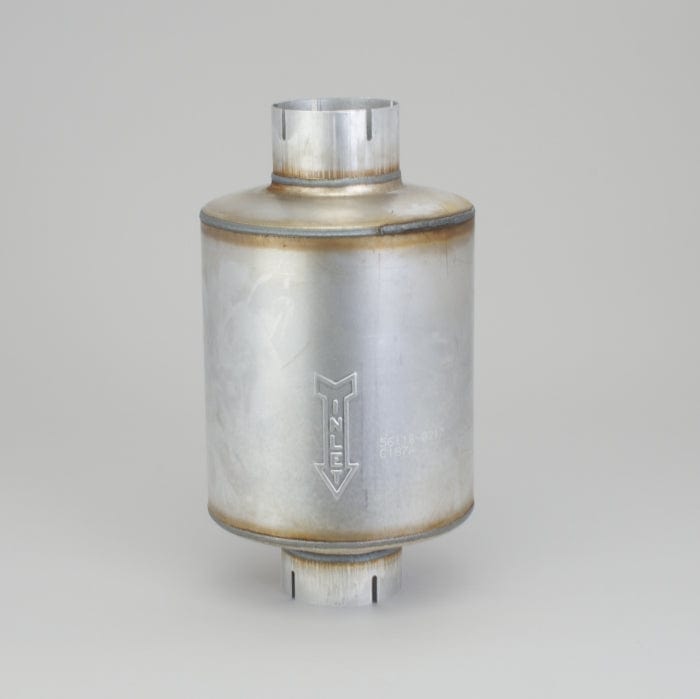

Resonator, 4 In (102 Mm) - Donaldson M090362

Resonator, 4 In (102 Mm) - Donaldson M090362

£146.08
£146.08
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson M090362

Resonator, 4 In (102 Mm)
Inlet Diameter 4.02 inch (102.11 mm)
Outlet Diameter 4.02 inch (102.11 mm)
Body Diameter Maximum 8.97 inch (227.84 mm)
Body Length 10.00 inch (254 mm)
Overall Length 16.50 inch (419 mm)
Attenuation LR 3 dBA
Attenuation HR 6 dBA
View full details

Specifications

Attributes

  • Inlet Diameter: 102.11 mm (4.02 inch)
  • Outlet Diameter: 102.11 mm (4.02 inch)
  • Body Diameter Maximum: 227.84 mm (8.97 inch)
  • Body Length: 254 mm (10.00 inch)
  • Overall Length: 419 mm (16.50 inch)
  • Attenuation LR: 3 dBA
  • Attenuation HR: 6 dBA

Packaged Dimensions

  • Packaged Length: 0.465 m (18.60 inch)
  • Packaged Width: 0.235 m (9.40 inch)
  • Packaged Height: 0.240 m (9.60 inch)
  • Packaged Weight: 4.007 kg (8.83 lb)
  • Packaged Volume: 0.027 m3 (0.97 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 125850-07
  • HTS Code: 8708923500
  • UPC Code: 742330005163

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
A P PARTS 3681Q
AP EXHAUST PRODUCTS INC 3681
BLOUNT 541565
BOSS INDUSTRIES 301999
CAMECO 551326623
CAMECO 0551326623
CATERPILLAR 541565
DART MUM090362
DYNAFLEX 87400144Q
DYNAFLEX 87400144
EAGLE TRUCK PRODUCTS E109
FORD 9575M090362
HEAVY DUTY MFG 31109
INTERNATIONAL DCM090362
LINK BELT J9A0478
NELSON 86144M
P & H R49787D1
PETTIBONE LL847325
RIKER 9LT400
RIKER 7LT400
RIKER LT409
RIKER LT400
RIKER LT509
RIKER 8LT400
STEMCO 1909303
STEMCO 1909123
SULLAIR 022501642449
SULLAIR 02250162449
TRUCKEX 3681
UNIT RIG EQUIPMENT C2785030
WALKER MANUFACTURING 21464
