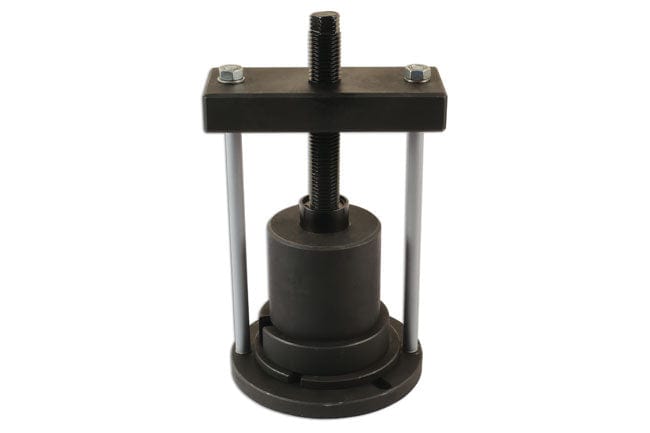

Rear Suspension Bush Tool - for Ford, Volvo - (Laser Tools 6163)

Part of a range of vehicle specific tools for the removal and fitting of bushes and ball joints without having to remove suspension legs, subframes, wishbones and trailing arms etc from the vehicle. Designed to be used in-situ, although it can also be used in a workshop press if circumstances require.

• Specially designed to install or remove the bush on the vehicle without the need to disconnect the brake lines or remove the bush positioning bolts or mounting plates.
• Applications: Ford Galaxy (2006 - 2015), Mondeo (2007 - 2015) & S-Max (2006 - 2015); Volvo S60 II (2010 - 2018), S80 II (2006 - 2016), V60 I (2010 - 2018), V70 III (2007 - 2016), XC60 (2008 - 2018) & XC70 (2007 - 2016).
• Equivalent to Ford OEM 205-1017.
• Spare parts available: Top plate (Part No. 1681) and force screw assembly (Part No. 1682). Use with ratchet ring spanner - flexi head 19mm.
• Made in Sheffield.
