• Donaldson Pre-Cleaner, Topspin Hd - Donaldson H002856
1 1

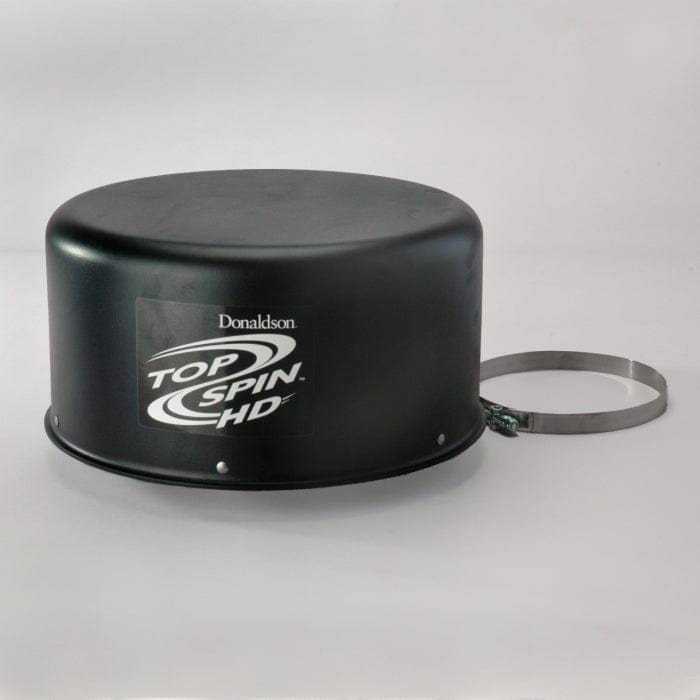

Pre-Cleaner, Topspin Hd - Donaldson H002856

Pre-Cleaner, Topspin Hd - Donaldson H002856

£466.95
£466.95
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson H002856

Pre-Cleaner, Topspin Hd
Height 8.39 inch (213 mm)
Body Diameter Maximum 14.76 inch (375 mm)
Outlet ID 7.09 inch (180 mm)
Efficiency 80.00
Efficiency Test Std ISO 5011
Rated Flow LR 742 cfm (21 m³/min)
Rated Flow HR 1342 cfm (38 m³/min)
Restriction LR 2.80 inch H2O (71 mm H2O)
Restriction HR 9.69 inch H2O (246 mm H2O)
Brand TopSpin™ HD
View full details

Specifications

Attributes

  • Height: 213 mm (8.39 inch)
  • Body Diameter Maximum: 375 mm (14.76 inch)
  • Outlet ID: 180 mm (7.09 inch)

Packaged Dimensions

  • Packaged Length: 0.373 m (14.90 inch)
  • Packaged Width: 0.375 m (15.00 inch)
  • Packaged Height: 0.228 m (9.10 inch)
  • Packaged Weight: 5.246 kg (11.56 lb)
  • Packaged Volume: 0.033 m3 (1.18 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-05
  • HTS Code: 8421197000
  • UPC Code: 742330969724

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
TURBO PRE-CLEANER 500
TURBO PRE-CLEANER 68
