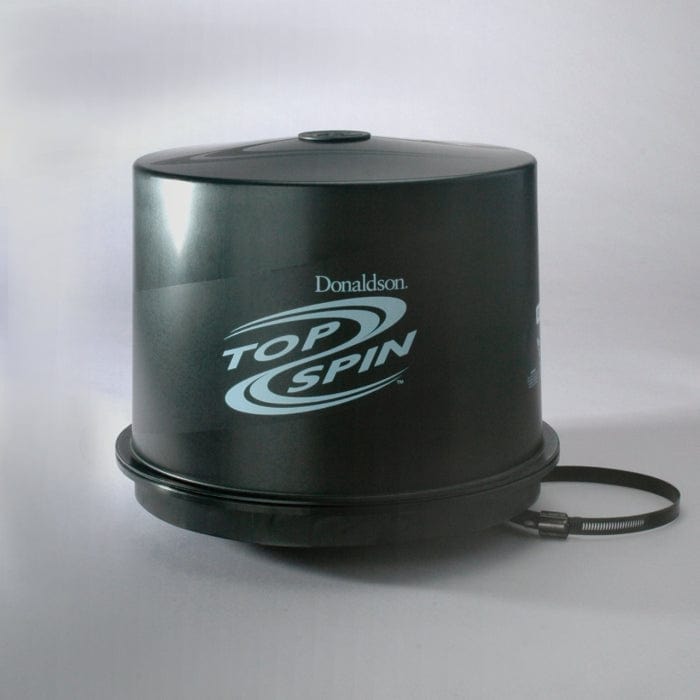

Pre-Cleaner, Topspin - Donaldson H002438

Pre-Cleaner, Topspin - Donaldson H002438

£331.66
£331.66
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson H002438

Pre-Cleaner, Topspin
Height 12.38 inch (314.45 mm)
Body Diameter Maximum 15.62 inch (396.75 mm)
Outlet ID 6.03 inch (153.16 mm)
Efficiency 85
Efficiency Test Std ISO 5011, SAE J726
Rated Flow LR 798 cfm (22.6 m³/min)
Rated Flow HR 1501 cfm (42.5 m³/min)
Restriction LR 2.01 inch H2O (51 mm H2O)
Restriction HR 8.74 inch H2O (222 mm H2O)
Brand TopSpin™ HD
View full details

Specifications

Attributes

  • Height: 314.45 mm (12.38 inch)
  • Body Diameter Maximum: 396.75 mm (15.62 inch)
  • Outlet ID: 153.16 mm (6.03 inch)
  • Efficiency: 85
  • Efficiency Test Std: ISO 5011
  • SAE J726:
  • Rated Flow LR: 22.6 m³/min (798 cfm)
  • Rated Flow HR: 42.5 m³/min (1501 cfm)
  • Restriction LR: 51 mm H2O (2.01 inch H2O)
  • Restriction HR: 222 mm H2O (8.74 inch H2O)
  • Brand: TopSpin™ HD

Packaged Dimensions

  • Packaged Length: 0.408 m (16.30 inch)
  • Packaged Width: 0.420 m (16.80 inch)
  • Packaged Height: 0.388 m (15.50 inch)
  • Packaged Weight: 3.841 kg (8.46 lb)
  • Packaged Volume: 0.069 m3 (2.46 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 156600-03
  • HTS Code: 8421197000
  • UPC Code: 742330127469

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
CATERPILLAR 0700107
CATERPILLAR 1303280
CLAAS 5810361
CUMMINS CDD001599
DULEVO INTERNATIONAL D73L900000
HAY & FORAGE 700732889
INTERNATIONAL 2592015C1
MAN 82084010002
NACCO MATERIALS 1647749
YTO 240100015979
