• Donaldson Pre-Cleaner, Topspin - Donaldson H002437
1 1

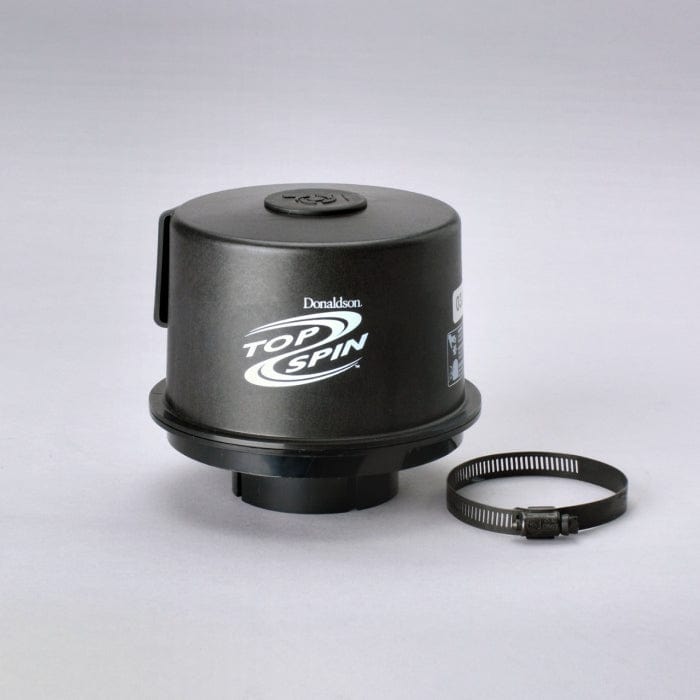

Pre-Cleaner, Topspin - Donaldson H002437

Pre-Cleaner, Topspin - Donaldson H002437

£142.51
£142.51
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson H002437

Pre-Cleaner, Topspin
View full details

Specifications

Attributes

  • Height: 146.81 mm (5.78 inch)
  • Body Diameter Maximum: 162.1 mm (6.38 inch)
  • Outlet ID: 76.96 mm (3.03 inch)
  • Efficiency: 85
  • Efficiency Test Std: ISO 5011
  • SAE J726:
  • Rated Flow LR: 2.8 m³/min (99 cfm)
  • Rated Flow HR: 5.7 m³/min (201 cfm)
  • Restriction LR: 25 mm H2O (0.98 inch H2O)
  • Restriction HR: 121 mm H2O (4.76 inch H2O)
  • Brand: TopSpin™ HD

Packaged Dimensions

  • Packaged Length: 0.178 m (7.10 inch)
  • Packaged Width: 0.173 m (6.90 inch)
  • Packaged Height: 0.168 m (6.70 inch)
  • Packaged Weight: 0.549 kg (1.21 lb)
  • Packaged Volume: 0.005 m3 (0.19 ft3)

Other Information

  • Country of Origin: Mexico
  • NMFC Code: 156600-05
  • HTS Code: 8421197000
  • UPC Code: 742330126493

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
BRODERSON 60012237
HYSTER 1501888
JOHN DEERE 688809
KRAUSS-MAFFEI 17414130NBUDE
MERCEDES-BENZ VDNH002437
NACCO MATERIALS 1501888
RANSOMES 4140275
