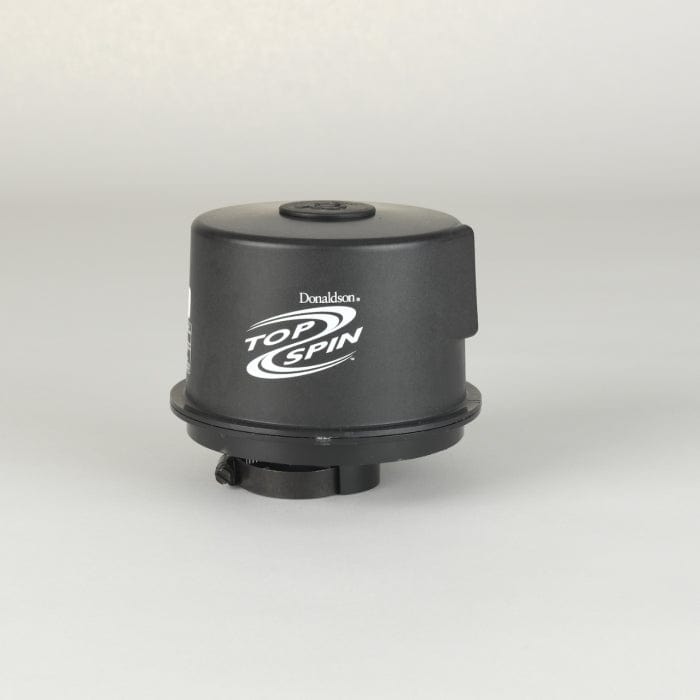

Pre-Cleaner, Topspin - Donaldson H002434

Pre-Cleaner, Topspin - Donaldson H002434

£114.79
£114.79
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson H002434

Pre-Cleaner, Topspin
Height 5.79 inch (147 mm)
Body Diameter Maximum 6.38 inch (162.1 mm)
Outlet ID 2.03 inch (51.56 mm)
Efficiency 85
Efficiency Test Std ISO 5011, SAE J726
Rated Flow LR 49 cfm (1.4 m³/min)
Rated Flow HR 201 cfm (5.7 m³/min)
Restriction LR 0.12 inch H2O (3 mm H2O)
Restriction HR 4.76 inch H2O (121 mm H2O)
Brand TopSpin™ HD
View full details

Specifications

Attributes

  • Height: 147 mm (5.79 inch)
  • Body Diameter Maximum: 162.1 mm (6.38 inch)
  • Outlet ID: 51.56 mm (2.03 inch)
  • Efficiency: 85
  • Efficiency Test Std: ISO 5011
  • SAE J726:
  • Rated Flow LR: 1.4 m³/min (49 cfm)
  • Rated Flow HR: 5.7 m³/min (201 cfm)
  • Restriction LR: 3 mm H2O (0.12 inch H2O)
  • Restriction HR: 121 mm H2O (4.76 inch H2O)
  • Brand: TopSpin™ HD

Packaged Dimensions

  • Packaged Length: 0.173 m (6.90 inch)
  • Packaged Width: 0.173 m (6.90 inch)
  • Packaged Height: 0.168 m (6.70 inch)
  • Packaged Weight: 0.520 kg (1.15 lb)
  • Packaged Volume: 0.005 m3 (0.18 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 156600-04
  • HTS Code: 8421197000
  • UPC Code: 742330126462

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
ASTEC UNDERGROUND AU111549
ASTEC UNDERGROUND AU111707
CATERPILLAR 9040108900
DULEVO INTERNATIONAL D73M600000
ROLLS ROYCE PNZ1353SC
TEREX 740455
VMC AP2434
