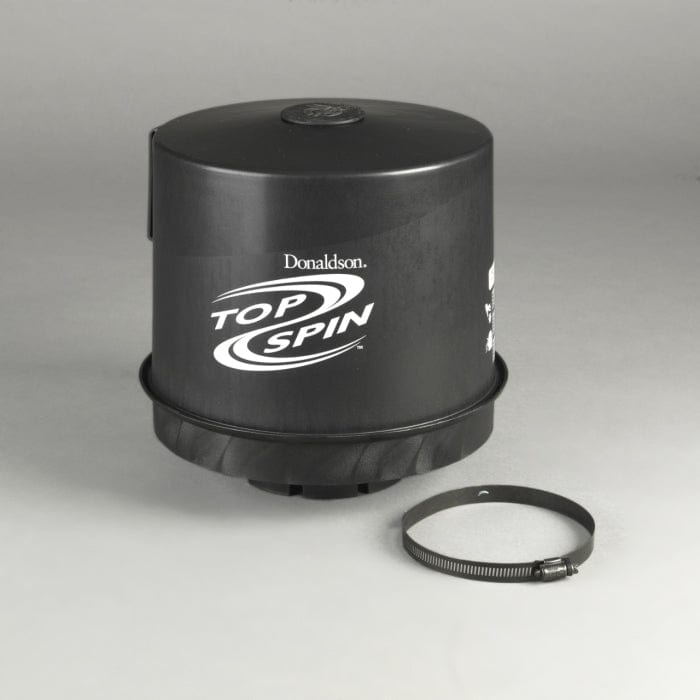

Donaldson H002433
Pre-Cleaner, Topspin| Height | 11.30 inch (287 mm) |
| Body Diameter Maximum | 11.32 inch (287.53 mm) |
| Outlet ID | 5.03 inch (127.76 mm) |
| Efficiency | 85 |
| Efficiency Test Std | ISO 5011, SAE J726 |
| Rated Flow LR | 448 cfm (12.7 m³/min) |
| Rated Flow HR | 798 cfm (22.6 m³/min) |
| Restriction LR | 0.98 inch H2O (25 mm H2O) |
| Restriction HR | 2.99 inch H2O (76 mm H2O) |
| Brand | TopSpin™ HD |
Share
Collapsible content
Specifications
Attributes
- Height: 287 mm (11.30 inch)
- Body Diameter Maximum: 287.53 mm (11.32 inch)
- Outlet ID: 127.76 mm (5.03 inch)
- Efficiency: 85
- Efficiency Test Std: ISO 5011
- SAE J726:
- Rated Flow LR: 12.7 m³/min (448 cfm)
- Rated Flow HR: 22.6 m³/min (798 cfm)
- Restriction LR: 25 mm H2O (0.98 inch H2O)
- Restriction HR: 76 mm H2O (2.99 inch H2O)
- Brand: TopSpin™ HD
Packaged Dimensions
- Packaged Length: 0.315 m (12.60 inch)
- Packaged Width: 0.313 m (12.50 inch)
- Packaged Height: 0.323 m (12.90 inch)
- Packaged Weight: 2.018 kg (4.45 lb)
- Packaged Volume: 0.033 m3 (1.18 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 156600-03
- HTS Code: 8421197000
- UPC Code: 742330117255
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| ASTEC UNDERGROUND | AU102279 | |
| BRODERSON | 60012237 | |
| CASE/CASE IH | 87359354 | |
| CUB CADET | 3697299C1 | |
| CUB CADET | 369299C1 | |
| DEZZI | 350121 | |
| FREIGHTLINER | DNH002433 | |
| FREIGHTLINER | DNHOO2433 | |
| HITACHI | YA00029949 | |
| HYSTER | 1614193 | |
| HYSTER | 1597872 | |
| INTERNATIONAL | 367299C1 | |
| INTERNATIONAL | 3697299C1 | |
| LBX COMPANY LLC | K5N0004 | |
| LIEBHERR | 10100993 | |
| MERCEDES-BENZ | DNH002433 | |
| NACCO MATERIALS | 1586313 | |
| NEW HOLLAND | 87359354 | |
| NEW HOLLAND | 76093511 | |
| ORENSTEIN & KOPPEL | 84371799 | |
| OTTAWA TRUCK | 9214240097 | |
| RAMA MOTORI | JPBH002433 | |
| RENAULT VI | 5002003951 | |
| SANDVIK | 507501 | |
| TENNANT | 1016494 | |
| TEREX | 15330498 | |
| URO VEHICULOS ESPECIALES S.A. | 125451 | |
| VMC | AP2433 |
