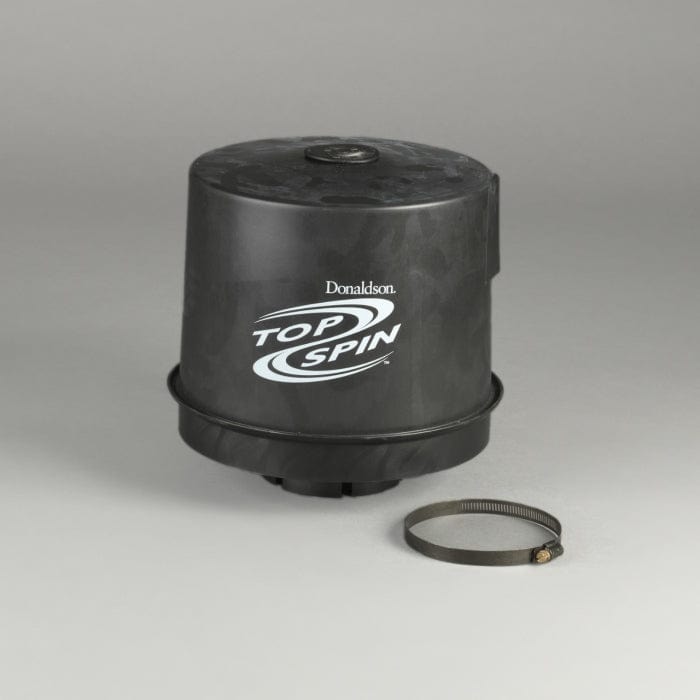

Pre-Cleaner, Topspin - Donaldson H002432

Pre-Cleaner, Topspin - Donaldson H002432

£211.35
£211.35
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson H002432

Pre-Cleaner, Topspin
View full details

Specifications

Attributes

  • Height: 287 mm (11.30 inch)
  • Body Diameter Maximum: 287.53 mm (11.32 inch)
  • Outlet ID: 115.82 mm (4.56 inch)
  • Efficiency: 85
  • Efficiency Test Std: ISO 5011
  • SAE J726:
  • Rated Flow LR: 12.7 m³/min (448 cfm)
  • Rated Flow HR: 24.1 m³/min (851 cfm)
  • Restriction LR: 25 mm H2O (0.98 inch H2O)
  • Restriction HR: 76 mm H2O (2.99 inch H2O)
  • Brand: TopSpin™ HD

Packaged Dimensions

  • Packaged Length: 0.295 m (11.80 inch)
  • Packaged Width: 0.308 m (12.30 inch)
  • Packaged Height: 0.313 m (12.50 inch)
  • Packaged Weight: 1.875 kg (4.13 lb)
  • Packaged Volume: 0.029 m3 (1.05 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 156600-04
  • HTS Code: 8421197000
  • UPC Code: 742330165423

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
RAMA MOTORI JPBH002432
RENAULT VI 5002006086
SAME 242392900
