• Donaldson Pre-Cleaner, Topspin - Donaldson H002431
1 1

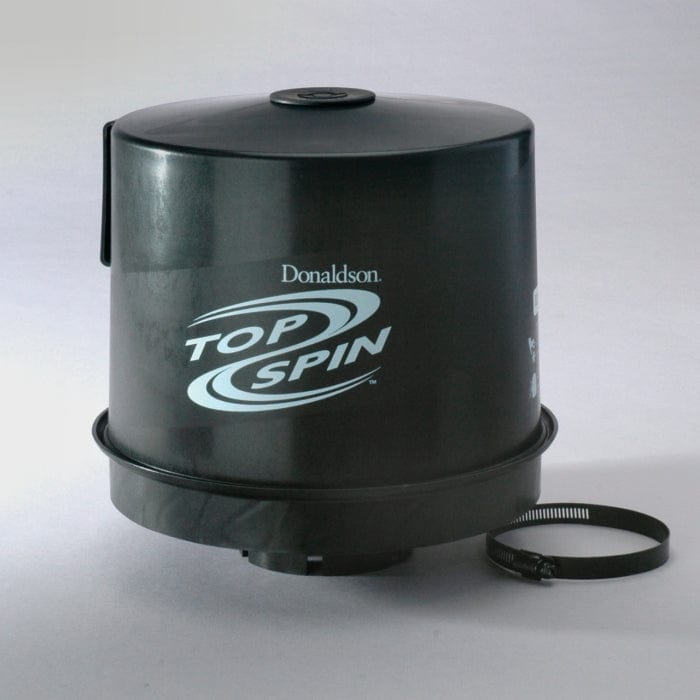

Pre-Cleaner, Topspin - Donaldson H002431

Pre-Cleaner, Topspin - Donaldson H002431

£242.73
£242.73
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson H002431

Pre-Cleaner, Topspin
Height 11.32 inch (287.53 mm)
Body Diameter Maximum 11.30 inch (287.1 mm)
Outlet ID 4.06 inch (103.12 mm)
Efficiency 85
Efficiency Test Std ISO 5011, SAE J726
Rated Flow LR 448 cfm (12.7 m³/min)
Rated Flow HR 798 cfm (22.6 m³/min)
Restriction LR 0.98 inch H2O (25 mm H2O)
Restriction HR 2.99 inch H2O (76 mm H2O)
Brand TopSpin™ HD
View full details

Specifications

Attributes

  • Height: 287.53 mm (11.32 inch)
  • Body Diameter Maximum: 287.1 mm (11.30 inch)
  • Outlet ID: 103.12 mm (4.06 inch)
  • Efficiency: 85
  • Efficiency Test Std: ISO 5011
  • SAE J726:
  • Rated Flow LR: 12.7 m³/min (448 cfm)
  • Rated Flow HR: 22.6 m³/min (798 cfm)
  • Restriction LR: 25 mm H2O (0.98 inch H2O)
  • Restriction HR: 76 mm H2O (2.99 inch H2O)
  • Brand: TopSpin™ HD

Packaged Dimensions

  • Packaged Length: 0.303 m (12.12 inch)
  • Packaged Width: 0.298 m (11.90 inch)
  • Packaged Height: 0.306 m (12.25 inch)
  • Packaged Weight: 1.489 kg (3.28 lb)
  • Packaged Volume: 0.029 m3 (1.02 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 156600-04
  • HTS Code: 8421197000
  • UPC Code: 742330165416
