• Donaldson Pre-Cleaner, Topspin - Donaldson H002427
1 1

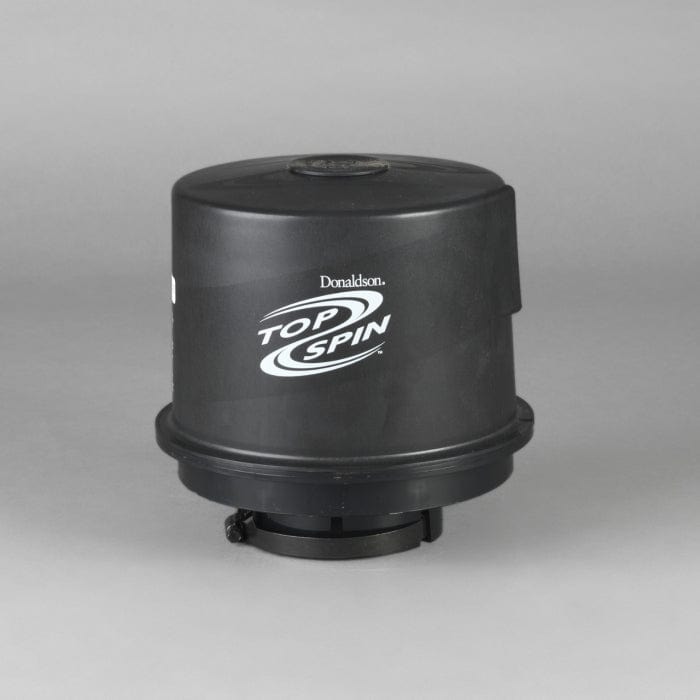

Pre-Cleaner, Topspin - Donaldson H002427

Pre-Cleaner, Topspin - Donaldson H002427

£164.80
£164.80
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson H002427

Pre-Cleaner, Topspin
View full details

Specifications

Attributes

  • Height: 238.51 mm (9.39 inch)
  • Body Diameter Maximum: 242 mm (9.53 inch)
  • Outlet ID: 115.82 mm (4.56 inch)
  • Efficiency: 85
  • Efficiency Test Std: ISO 5011
  • SAE J726:
  • Rated Flow LR: 5.7 m³/min (201 cfm)
  • Rated Flow HR: 12.7 m³/min (448 cfm)
  • Restriction LR: 25 mm H2O (0.98 inch H2O)
  • Restriction HR: 127 mm H2O (5.00 inch H2O)
  • Brand: TopSpin™ HD

Packaged Dimensions

  • Packaged Length: 0.248 m (9.90 inch)
  • Packaged Width: 0.245 m (9.80 inch)
  • Packaged Height: 0.250 m (10.00 inch)
  • Packaged Weight: 1.276 kg (2.81 lb)
  • Packaged Volume: 0.016 m3 (0.56 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-01
  • HTS Code: 8421197000
  • UPC Code: 742330116425

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
ASTEC UNDERGROUND AU118765
ASTEC UNDERGROUND AU118756
CATERPILLAR 3145631
DEZZI 350123
DYNAPAC 4700397584
HANOMAG TRAKTOREN 41809H0050
HBM-NOBAS 9343118
JLG 1001092771
KALMAR 9214240099
LIEBHERR 10815456
LOCATELLI 4430120
M.Z. IMER M009691
NEW HOLLAND FF3043134
URO VEHICULOS ESPECIALES S.A. 125447
WORDSWORTH HOLDINGS PLC SX621210
