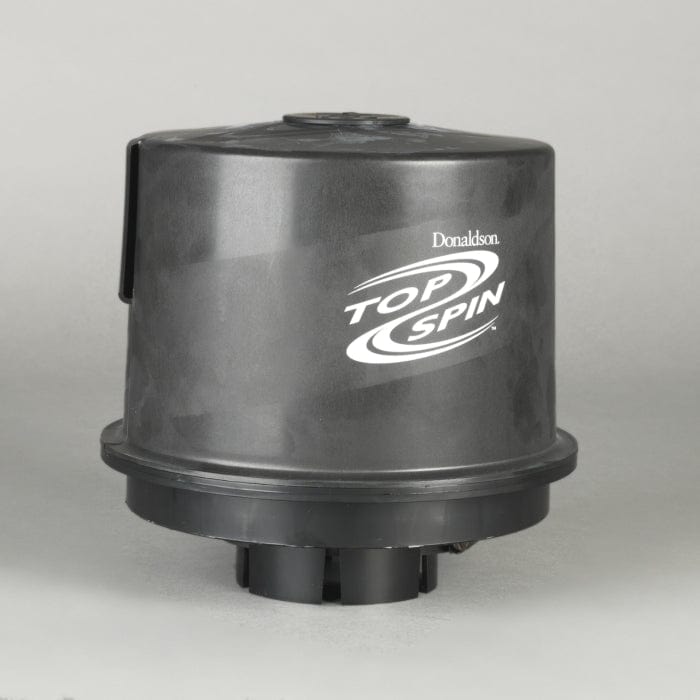

Pre-Cleaner, Topspin - Donaldson H002426

Pre-Cleaner, Topspin - Donaldson H002426

£164.80
£164.80
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson H002426

Pre-Cleaner, Topspin
Height 9.39 inch (238.51 mm)
Body Diameter Maximum 9.50 inch (241.3 mm)
Outlet ID 3.83 inch (97.28 mm)
Efficiency 85
Efficiency Test Std ISO 5011, SAE J726
Rated Flow LR 201 cfm (5.7 m³/min)
Rated Flow HR 448 cfm (12.7 m³/min)
Restriction LR 0.98 inch H2O (25 mm H2O)
Restriction HR 5.00 inch H2O (127 mm H2O)
Brand TopSpin™ HD
View full details

Specifications

Attributes

  • Height: 238.51 mm (9.39 inch)
  • Body Diameter Maximum: 241.3 mm (9.50 inch)
  • Outlet ID: 97.28 mm (3.83 inch)
  • Efficiency: 85
  • Efficiency Test Std: ISO 5011
  • SAE J726:
  • Rated Flow LR: 5.7 m³/min (201 cfm)
  • Rated Flow HR: 12.7 m³/min (448 cfm)
  • Restriction LR: 25 mm H2O (0.98 inch H2O)
  • Restriction HR: 127 mm H2O (5.00 inch H2O)
  • Brand: TopSpin™ HD

Packaged Dimensions

  • Packaged Length: 0.243 m (9.70 inch)
  • Packaged Width: 0.248 m (9.90 inch)
  • Packaged Height: 0.248 m (9.90 inch)
  • Packaged Weight: 1.255 kg (2.77 lb)
  • Packaged Volume: 0.015 m3 (0.55 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-04
  • HTS Code: 8421197000
  • UPC Code: 742330116388

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
ASTEC UNDERGROUND AU107005
BRODERSON 60012201A
BRODERSON 060012229
CASE/CASE IH 87576357
DIAMOND 2501447
DULEVO INTERNATIONAL D73L700000
KALMAR 9214240100
KALMAR 92142401
LIEBHERR 10428292
M.D.F. SARL MDA3164
MECALAC 6050178
NEUSON 1000197353
NEW HOLLAND FF3046282
PALAZZANI INDUSTRIE 14140088
TYMCO 9999
