• Donaldson Pre-Cleaner, Topspin - Donaldson H002425
1 1

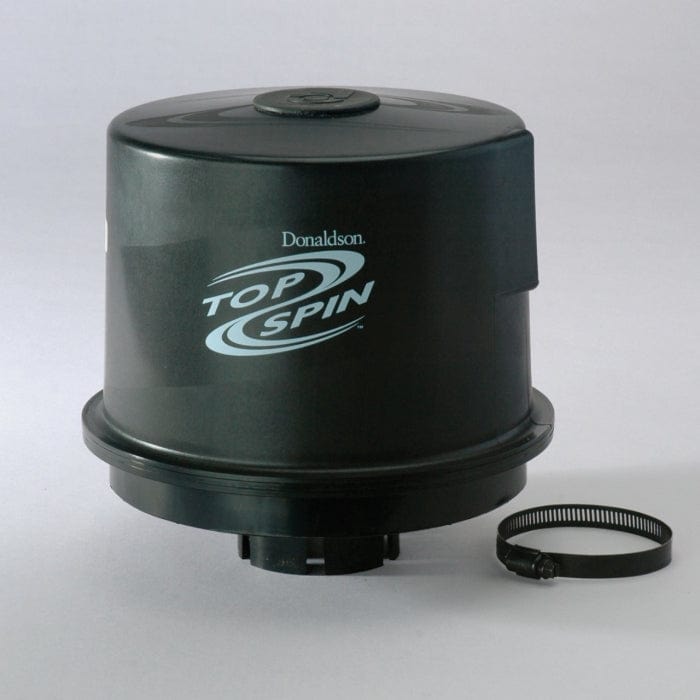

Pre-Cleaner, Topspin - Donaldson H002425

Pre-Cleaner, Topspin - Donaldson H002425

£185.85
£185.85
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson H002425

Pre-Cleaner, Topspin
Height 9.39 inch (238.51 mm)
Body Diameter Maximum 9.49 inch (241 mm)
Outlet ID 3.07 inch (77.98 mm)
Efficiency 85
Efficiency Test Std ISO 5011, SAE J726
Rated Flow LR 201 cfm (5.7 m³/min)
Rated Flow HR 448 cfm (12.7 m³/min)
Restriction LR 0.98 inch H2O (25 mm H2O)
Restriction HR 5.00 inch H2O (127 mm H2O)
Brand TopSpin™ HD
View full details

Specifications

Attributes

  • Height: 238.51 mm (9.39 inch)
  • Body Diameter Maximum: 241 mm (9.49 inch)
  • Outlet ID: 77.98 mm (3.07 inch)
  • Efficiency: 85
  • Efficiency Test Std: ISO 5011
  • SAE J726:
  • Rated Flow LR: 5.7 m³/min (201 cfm)
  • Rated Flow HR: 12.7 m³/min (448 cfm)
  • Restriction LR: 25 mm H2O (0.98 inch H2O)
  • Restriction HR: 127 mm H2O (5.00 inch H2O)
  • Brand: TopSpin™ HD

Packaged Dimensions

  • Packaged Length: 0.250 m (10.00 inch)
  • Packaged Width: 0.245 m (9.80 inch)
  • Packaged Height: 0.250 m (10.00 inch)
  • Packaged Weight: 1.249 kg (2.75 lb)
  • Packaged Volume: 0.016 m3 (0.57 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-06
  • HTS Code: 8421197000
  • UPC Code: 742330116371

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
ACMAT PROLTV069
BRODERSON 060012217
HYSTER 8541738
NACCO MATERIALS 8541738
PALAZZANI INDUSTRIE 14140089
RENAULT VI 5H0LTA0049
VAPORMATIC CLD2351
VOLVO 11888212
VOLVO CONSTRUCTION EQUIPMENT cH12953
VOLVO CONSTRUCTION EQUIPMENT VOE11888212
