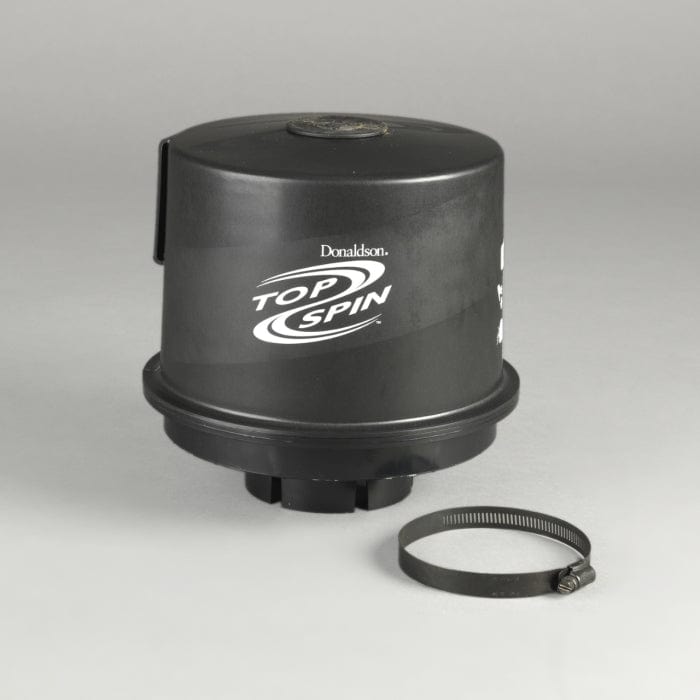

Pre-Cleaner, Topspin - Donaldson H002394

Pre-Cleaner, Topspin - Donaldson H002394

£164.80
£164.80
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson H002394

Pre-Cleaner, Topspin
View full details

Specifications

Attributes

  • Height: 238.51 mm (9.39 inch)
  • Body Diameter Maximum: 241.3 mm (9.50 inch)
  • Outlet ID: 103.12 mm (4.06 inch)
  • Efficiency: 85
  • Efficiency Test Std: ISO 5011
  • SAE J726:
  • Rated Flow LR: 5.7 m³/min (201 cfm)
  • Rated Flow HR: 12.7 m³/min (448 cfm)
  • Restriction LR: 25 mm H2O (0.98 inch H2O)
  • Restriction HR: 127 mm H2O (5.00 inch H2O)
  • Brand: TopSpin™ HD

Packaged Dimensions

  • Packaged Length: 0.248 m (9.90 inch)
  • Packaged Width: 0.248 m (9.90 inch)
  • Packaged Height: 0.253 m (10.10 inch)
  • Packaged Weight: 1.287 kg (2.84 lb)
  • Packaged Volume: 0.016 m3 (0.57 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-01
  • HTS Code: 8421197000
  • UPC Code: 742330113066

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
DULEVO INTERNATIONAL D73L800000
HITACHI YA00024955
HYSTER 8542896
PRINOTH 114666401
TEREX 88142340
VAPORMATIC CLD2352
VMC AP2394
