• Donaldson Pre-Cleaner, Stratacap - Donaldson H002704
1 1

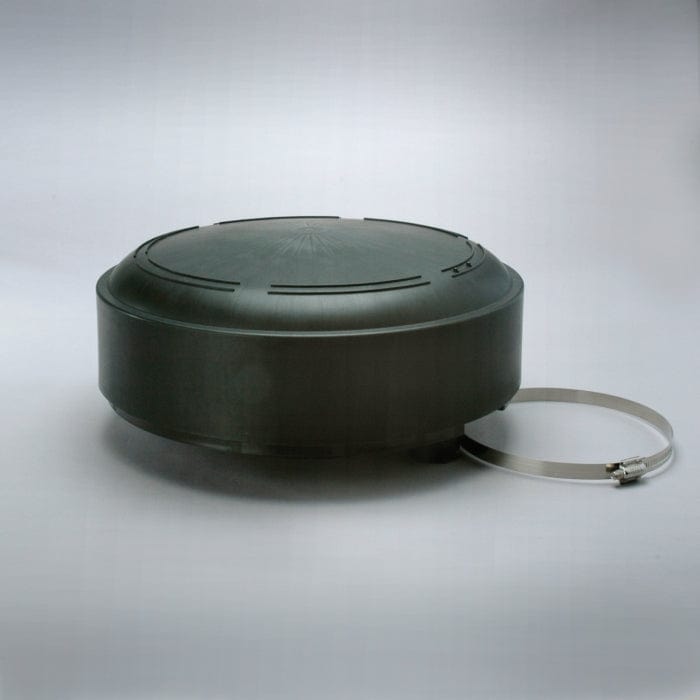

Pre-Cleaner, Stratacap - Donaldson H002704

Pre-Cleaner, Stratacap - Donaldson H002704

£313.42
£313.42
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson H002704

Pre-Cleaner, Stratacap
Height 8.62 inch (219 mm)
Body Diameter Maximum 17.20 inch (437 mm)
Outlet ID 8.03 inch (204 mm)
Efficiency 96
Efficiency Test Std ISO 5011, SAE J726
Rated Flow HR 1141 cfm (32.3 m³/min)
Restriction LR 0.98 inch H2O (25 mm H2O)
Restriction HR 5.98 inch H2O (152 mm H2O)
Brand Strata™ Cap
View full details

Specifications

Attributes

  • Height: 219 mm (8.62 inch)
  • Body Diameter Maximum: 437 mm (17.20 inch)
  • Outlet ID: 204 mm (8.03 inch)
  • Efficiency: 96
  • Efficiency Test Std: ISO 5011
  • SAE J726:
  • Rated Flow HR: 32.3 m³/min (1141 cfm)
  • Restriction LR: 25 mm H2O (0.98 inch H2O)
  • Restriction HR: 152 mm H2O (5.98 inch H2O)
  • Brand: Strata™ Cap

Packaged Dimensions

  • Packaged Length: 0.440 m (17.60 inch)
  • Packaged Width: 0.445 m (17.80 inch)
  • Packaged Height: 0.235 m (9.40 inch)
  • Packaged Weight: 5.191 kg (11.44 lb)
  • Packaged Volume: 0.048 m3 (1.70 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-06
  • HTS Code: 8421310090
  • UPC Code: 742330198575
