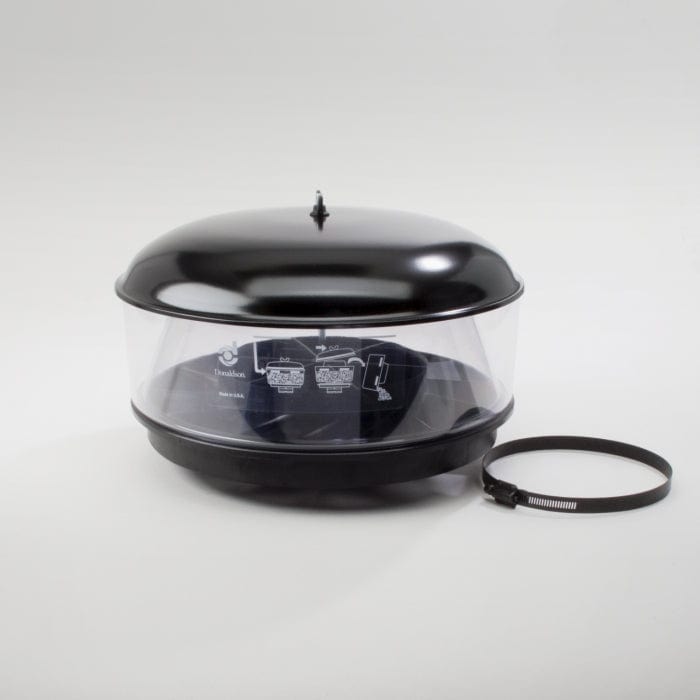

Pre-Cleaner, Full View - Donaldson H002224
Pre-Cleaner, Full View - Donaldson H002224
Regular price
£208.34
Regular price
Sale price
£208.34
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson H002224
Pre-Cleaner, Full View| Height | 10.16 inch (258.1 mm) |
| Body Diameter Maximum | 16.24 inch (412.49 mm) |
| Outlet ID | 7.01 inch (178 mm) |
| Efficiency | 75 |
| Efficiency Test Std | ISO 5011, SAE J726 |
| Rated Flow HR | 1501 cfm (42.5 m³/min) |
| Restriction LR | 0.98 inch H2O (25 mm H2O) |
| Restriction HR | 2.99 inch H2O (76 mm H2O) |
Share
Collapsible content
Specifications
Attributes
- Height: 258.1 mm (10.16 inch)
- Body Diameter Maximum: 412.49 mm (16.24 inch)
- Outlet ID: 178 mm (7.01 inch)
- Efficiency: 75
- Efficiency Test Std: ISO 5011
- SAE J726:
- Rated Flow HR: 42.5 m³/min (1501 cfm)
- Restriction LR: 25 mm H2O (0.98 inch H2O)
- Restriction HR: 76 mm H2O (2.99 inch H2O)
Packaged Dimensions
- Packaged Length: 1.39 FT
- Packaged Width: 1.39 FT
- Packaged Height: 1.03 FT
- Packaged Weight: 5.108 kg (11.25 lb)
- Packaged Volume: 0.056 m3 (1.99 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 069100-04
- HTS Code: 8421197000
- UPC Code: 742330111086
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| ATLAS COPCO | 1613771700 | |
| ATLAS COPCO | 371112 | |
| BELL | 290145 | |
| CAMECO | 0061343344 | |
| CASE/CASE IH | NH002224 | |
| CATERPILLAR | 1501714 | |
| CATERPILLAR | 4W7263 | |
| COMPACTION AMERICA | 0938153 | |
| CUMMINS | 30340211 | |
| CUMMINS | CDD000132 | |
| EIMCO | 69036844 | |
| FREIGHTLINER | DNPBH00224 | |
| FREIGHTLINER | DNPBH002224 | |
| HYSTER | 1456342 | |
| INGERSOLL RAND | 51728020 | |
| INGERSOLL RAND | 7565107800 | |
| JOHN DEERE | TT290145 | |
| KAWASAKI | 4273070090 | |
| KAWASAKI | 42730700807 | |
| KAWASAKI | 4273070080 | |
| KOEHRING | 853522009 | |
| KOEHRING | 4203955 | |
| KOHLER | 328240 | |
| KOMATSU | 152792 | |
| KRONE | 09402820 | |
| KRONE | 9402820 | |
| MI-JACK | 43950100 | |
| MI-JACK | F2PBH001221 | |
| MORBARK | 29320658 | |
| NACCO MATERIALS | 1456342 | |
| OTTAWA TRUCK | 9214240050 | |
| PERKINS | 13000536 | |
| PERKINS | OE52615 | |
| SANDVIK | 69036844 | |
| SCANIA | 1386231 | |
| SULLAIR | 405085 | |
| SULLIVAN PALATEK | 50175850003 | |
| TEREX | D6350533 | |
| TEREX | 15311498 | |
| TEREX | 4203955 | |
| TIM | 4W7263 | |
| WAGNER MINING EQUIPMENT | 371112 |
