Donaldson H002045

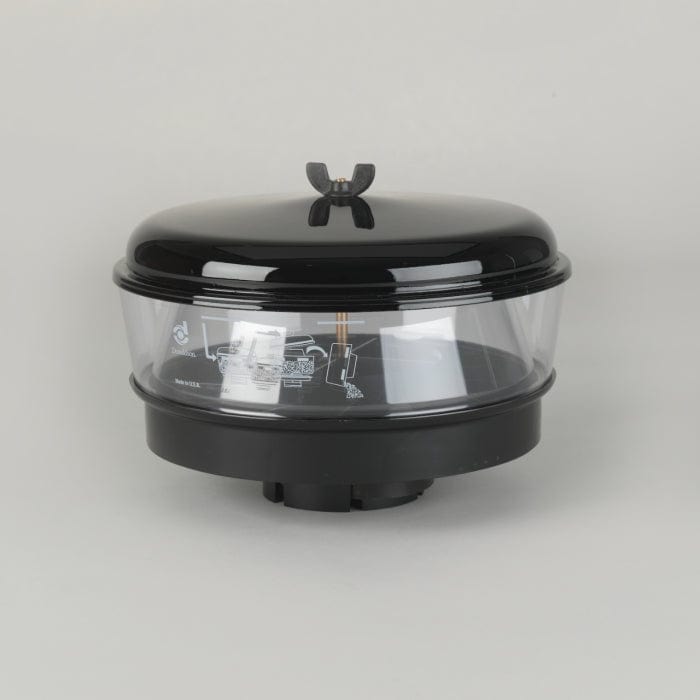

Pre-Cleaner, Full View
Height 8.03 inch (203.96 mm)
Body Diameter Maximum 12.06 inch (306.32 mm)
Outlet ID 4.03 inch (102.36 mm)
Efficiency 75
Efficiency Test Std ISO 5011, SAE J726
Rated Flow HR 660 cfm (18.7 m³/min)
Restriction LR 0.98 inch H2O (25 mm H2O)
Restriction HR 2.99 inch H2O (76 mm H2O)
View full details

Specifications

Attributes

  • Height: 203.96 mm (8.03 inch)
  • Body Diameter Maximum: 306.32 mm (12.06 inch)
  • Outlet ID: 102.36 mm (4.03 inch)
  • Efficiency: 75
  • Efficiency Test Std: ISO 5011
  • SAE J726:
  • Rated Flow HR: 18.7 m³/min (660 cfm)
  • Restriction LR: 25 mm H2O (0.98 inch H2O)
  • Restriction HR: 76 mm H2O (2.99 inch H2O)

Packaged Dimensions

  • Packaged Length: 0.310 m (12.40 inch)
  • Packaged Width: 0.315 m (12.60 inch)
  • Packaged Height: 0.243 m (9.70 inch)
  • Packaged Weight: 2.393 kg (5.27 lb)
  • Packaged Volume: 0.025 m3 (0.88 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-04
  • HTS Code: 8421197000
  • UPC Code: 742330003428

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
CASE/CASE IH 161260190701
CATERPILLAR 1002859
CLARK 1523446SUB
CLARK 1911722SUB
DAIMLER A0170946002
DITCH WITCH 194729
ENTWISTLE COMPANY 9310C3036001
FRANKLIN 1504480SUB
FRANKLIN 1504480
HAVAM HD2045
HAVAM HD9328
HYSTER 1377577SUB
HYSTER 1377577
INGERSOLL RAND 7567657803
LAND ROVER ACU3818
LAND ROVER ACU3818
LIEBHERR 10035708
MERCEDES-BENZ A0170946002
MERCEDES-BENZ A0180944102
NACCO MATERIALS 1377577
NACCO MATERIALS 1377577SUB
NACCO MATERIALS 580049375
NEW HOLLAND 61260190004
TAYLOR A219749P
TIM 1002859
TYMCO 12841
WALGAHN-MOTORENTECHN 00810162
WALGAHN-MOTORENTECHN 810162
