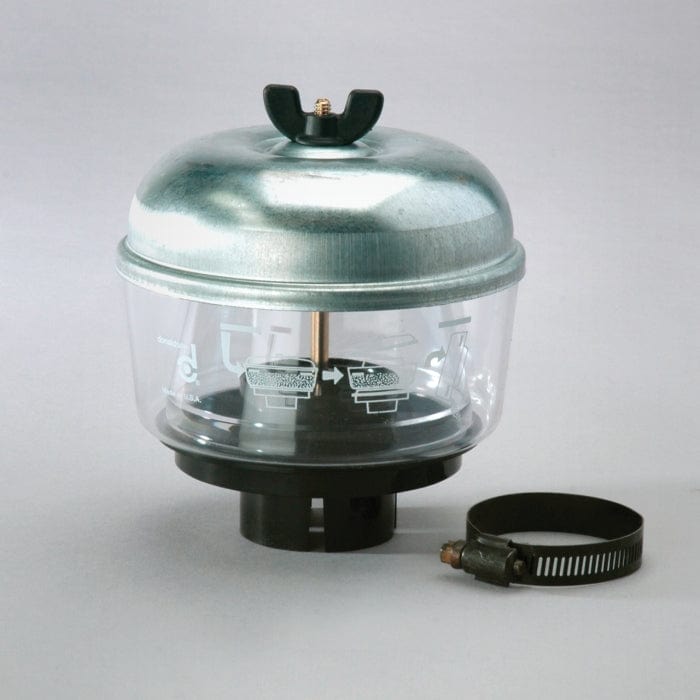

Pre-Cleaner, Full View - Donaldson H002040
Pre-Cleaner, Full View - Donaldson H002040
Regular price
£37.80
Regular price
Sale price
£37.80
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson H002040
Pre-Cleaner, Full View| Height | 5.61 inch (142.5 mm) |
| Body Diameter Maximum | 5.58 inch (141.7 mm) |
| Outlet ID | 2.01 inch (51 mm) |
| Efficiency | 75 |
| Efficiency Test Std | ISO 5011, SAE J726 |
| Rated Flow HR | 92 cfm (2.6 m³/min) |
| Restriction LR | 0.98 inch H2O (25 mm H2O) |
| Restriction HR | 2.99 inch H2O (76 mm H2O) |
Share
Collapsible content
Specifications
Attributes
- Height: 142.5 mm (5.61 inch)
- Body Diameter Maximum: 141.7 mm (5.58 inch)
- Outlet ID: 51 mm (2.01 inch)
- Efficiency: 75
- Efficiency Test Std: ISO 5011
- SAE J726:
- Rated Flow HR: 2.6 m³/min (92 cfm)
- Restriction LR: 25 mm H2O (0.98 inch H2O)
- Restriction HR: 76 mm H2O (2.99 inch H2O)
Packaged Dimensions
- Packaged Length: 0.153 m (6.10 inch)
- Packaged Width: 0.150 m (6.00 inch)
- Packaged Height: 0.168 m (6.70 inch)
- Packaged Weight: 0.479 kg (1.06 lb)
- Packaged Volume: 0.004 m3 (0.14 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 069100-06
- HTS Code: 8421197000
- UPC Code: 742330003381
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AG CHEM EQUIPMENT | 720023SUB | |
| AG CHEM EQUIPMENT | 720023 | |
| AGCO | 101579AS | |
| AGCO | 74789057 | |
| AGCO | 74789057SUB | |
| AGCO | 508372M91 | |
| AGCO | 508372M91SUB | |
| ARROW SPECIALTY | 76466B | |
| BOBCAT | 6633482 | |
| BOBCAT | 6633482SUB | |
| BURKEEN | 6633482SUB | |
| CARRIER TRANSICOLD | 66U13613 | |
| CARRIER TRANSICOLD | 66U13613 | |
| CARRIER TRANSICOLD | 66U13613SUB | |
| CARRIER TRANSICOLD | 300033300 | |
| CARRIER TRANSICOLD | 300033300 | |
| CARRIER TRANSICOLD | 300033300SUB | |
| CARRIER TRANSICOLD | 305033300 | |
| CASE/CASE IH | D020604 | |
| CASE/CASE IH | D20604 | |
| CASE/CASE IH | 303773A1 | |
| CATERPILLAR | 8N3132 | |
| CATERPILLAR | 8N3132 | |
| CETCO INCORPORATED | 407076R91 | |
| CHARDONNET | 7400021300 | |
| CLAAS | 24551111 | |
| CLARK | 068000933 | |
| CLARK | 68000933 | |
| CLARK | 6537478 | |
| CLARK | 06537478 | |
| CLARK | 537478 | |
| CLARKE | 82404092SUB | |
| COMPACTION AMERICA | 05735001SUB | |
| COMPACTION AMERICA | 853522002SUB | |
| DAEWOO | D131257 | |
| DEUTZ | 2500173 | |
| DEUTZ | 2500145SUB | |
| DIAMANT BOART INC | 162034 | |
| DIAMOND | 2500175SUB | |
| DIAMOND | 2500173 | |
| DITCH WITCH | 195623SUB | |
| DITCH WITCH | 195623 | |
| DRESSER | 363003R91 | |
| DRESSER | 407076R91 | |
| EATON | 503233803 | |
| ECL | 332816 | |
| FENWICK | 3018949 | |
| FIAT | 74789057SUB | |
| FIAT | 74789057 | |
| FREIGHTLINER | DNH002040 | |
| GARDNER DENVER | SW24772 | |
| GEHL | 114479 | |
| GEHL | 114479SUB | |
| HAVAM | HD9300 | |
| HERKULES (TELSNIG) | 28559100 | |
| HERKULES (TELSNIG) | 28559100SUB | |
| HURRICANE COMPRESSOR | 12468625 | |
| HYDRA MAC | 4108318SUB | |
| HYSTER | AS00800452 | |
| HYSTER | AS00800452SUB | |
| HYSTER | BS00800452 | |
| HYSTER | BS00800452SUB | |
| INTRUPA | 83346 | |
| INTRUPA | IF5032 | |
| IVECO | 24551111 | |
| JOHN DEERE | AT16838 | |
| JOHN DEERE | AT16837 | |
| KALMAR | 74789057 | |
| KOMATSU | 407076R91SUB | |
| KOMATSU | 407076R91 | |
| KOMATSU | 3EB01F2710 | |
| KOMATSU | 3EB01F2710SUB | |
| KOMATSU | 73A0111820 | |
| KUBOTA | K771198241 | |
| LEAR SIEGLER | 27000007SUB | |
| LEAR SIEGLER | 27000007 | |
| LISTER PETTER | 00006567 | |
| LISTER PETTER | 00006567SUB | |
| LOESING | 020244 | |
| LOESING | 20244 | |
| M.D.F. SARL | MDA2809 | |
| MANITOU | 9866 | |
| MASSEY FERGUSON | 1666356M91 | |
| MODERN LTD | 3553 | |
| MOFFET | 310652 | |
| NACCO MATERIALS | 502509302SUB | |
| NACCO MATERIALS | PBH000213 | |
| NACCO MATERIALS | PBH000213SUB | |
| NATO (NSN) | 2940009327425 | |
| NEW HOLLAND | 73740 | |
| NEW HOLLAND | 73740SUB | |
| NEW HOLLAND | 74789057SUB | |
| NEW HOLLAND | 76881 | |
| NEW HOLLAND | 76881SUB | |
| NEW HOLLAND | 303773A1 | |
| NEW HOLLAND | H002040 | |
| NEW HOLLAND | 74789057 | |
| NILFISK-ADVANCE INCORPORATED | 82404092 | |
| ONAN | 1400723 | |
| ONAN | 01400723SUB | |
| ONAN | 01400723 | |
| PETTIBONE | TTT00004481SUB | |
| POWER BOSS | 3303887 | |
| RENAULT VI | 0024551111 | |
| RENAULT VI | 24551111 | |
| SELLICK EQPT LTD | 180414 | |
| SIGMA AIR CONDITIONING | 460C745 | |
| SIGMA AIR CONDITIONING | 460C745SUB | |
| SNORKEL | 7630103SUB | |
| SNORKEL | 7630103 | |
| SYSTEMS MATERIAL HANDLING | CT8N3132 | |
| SYSTEMS MATERIAL HANDLING | CL537478 | |
| SYSTEMS MATERIAL HANDLING | H000213 | |
| TENNANT | 14431SUB | |
| TEREX | 0217656 | |
| TEREX | H000213SUB | |
| TEREX | H000213 | |
| TEREX | 217656 | |
| TIM | 8N3132 | |
| TIM | 8N3132 | |
| VERMEER | 669620011 | |
| VERMEER | 669620011SUB | |
| VERMEER | 66962001 | |
| VOLVO | 11007734 | |
| VOLVO | 11007734 | |
| WALDON | 066928SUB | |
| WALDON | 066928 | |
| WALDON | 66928 | |
| WALGAHN-MOTORENTECHN | 810157 | |
| WALGAHN-MOTORENTECHN | 00810157 | |
| WAUKESHA | 76466BSUB | |
| WESTERN STAR TRUCK | H000213SUB | |
| WESTERN STAR TRUCK | H000213 | |
| YALE | 502509302 | |
| YALE | 502509302SUB |
