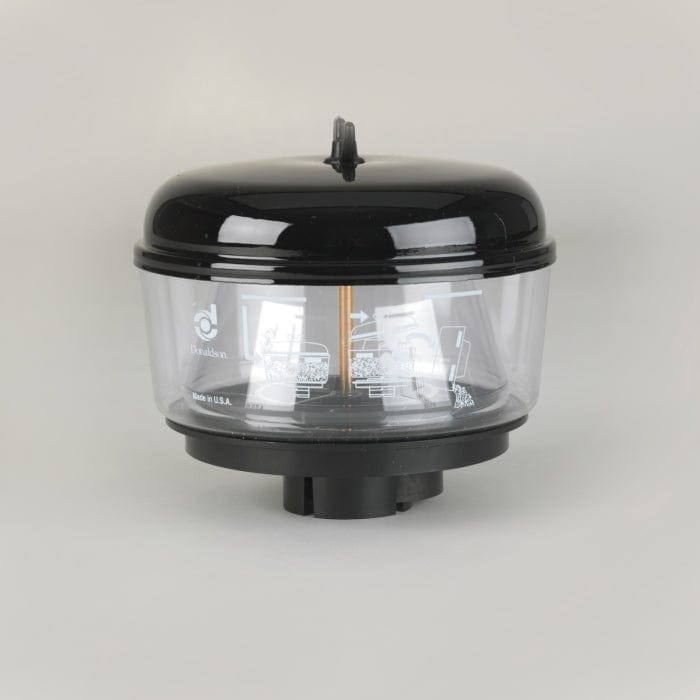

Pre-Cleaner, Full View - Donaldson H001823
Pre-Cleaner, Full View - Donaldson H001823
Regular price
£41.37
Regular price
Sale price
£41.37
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson H001823
Pre-Cleaner, Full View| Height | 6.17 inch (156.7 mm) |
| Body Diameter Maximum | 7.32 inch (186 mm) |
| Outlet ID | 2.00 inch (50.9 mm) |
| Efficiency | 75 |
| Efficiency Test Std | ISO 5011, SAE J726 |
| Rated Flow HR | 109 cfm (3.1 m³/min) |
| Restriction LR | 0.98 inch H2O (25 mm H2O) |
| Restriction HR | 2.99 inch H2O (76 mm H2O) |
Share
Collapsible content
Specifications
Attributes
- Height: 156.7 mm (6.17 inch)
- Body Diameter Maximum: 186 mm (7.32 inch)
- Outlet ID: 50.9 mm (2.00 inch)
- Efficiency: 75
- Efficiency Test Std: ISO 5011
- SAE J726:
- Rated Flow HR: 3.1 m³/min (109 cfm)
- Restriction LR: 25 mm H2O (0.98 inch H2O)
- Restriction HR: 76 mm H2O (2.99 inch H2O)
Packaged Dimensions
- Packaged Length: 0.195 m (7.80 inch)
- Packaged Width: 0.195 m (7.80 inch)
- Packaged Height: 0.188 m (7.50 inch)
- Packaged Weight: 0.763 kg (1.68 lb)
- Packaged Volume: 0.007 m3 (0.26 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 069100-05
- HTS Code: 8421197000
- UPC Code: 742330003336
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AGCO | 101964AS | |
| AGCO | 101964ASSUB | |
| AGCO | 220665M91 | |
| AGCO | 220665M91SUB | |
| ATLAS WEYHAUSEN | 3969040 | |
| BARLOWORLD FINANZAUTO | 758194M91 | |
| CASE/CASE IH | D022323 | |
| CASE/CASE IH | D022323SUB | |
| CATERPILLAR | 9040102784 | |
| CLARK | 676397 | |
| CLARK | 676397SUB | |
| DIAMANT BOART INC | 541200463 | |
| DITCH WITCH | 195626 | |
| DITCH WITCH | 195626SUB | |
| EIMCO | D2PBH000234SUB | |
| EIMCO | 65518055 | |
| HAVAM | HD9340 | |
| HAVAM | HD1823 | |
| HYSTER | S00800452 | |
| HYSTER | S00800452SUB | |
| HYSTER | SKS800452 | |
| HYSTER | SKS800452SUB | |
| LINDE | 0009832013 | |
| LINDE | 9832013 | |
| LOESING | 020250 | |
| MACDON | 21379SUB | |
| MASSEY FERGUSON | 758194M91 | |
| MILLER SPREADER | 0065SUB | |
| MILLER SPREADER | 4802009SUB | |
| MORBARK | 29321011 | |
| NACCO MATERIALS | S00800452 | |
| NACCO MATERIALS | S00800452SUB | |
| SANDVIK | 65518055 | |
| TENNANT | SP02063 | |
| TYLER POWER PRODUCTS | 4502SUB | |
| UNITED CENTRAL INDUSTRIAL SUPP | 919615 | |
| WALGAHN-MOTORENTECHN | 00810163 | |
| WALGAHN-MOTORENTECHN | 810163 |
