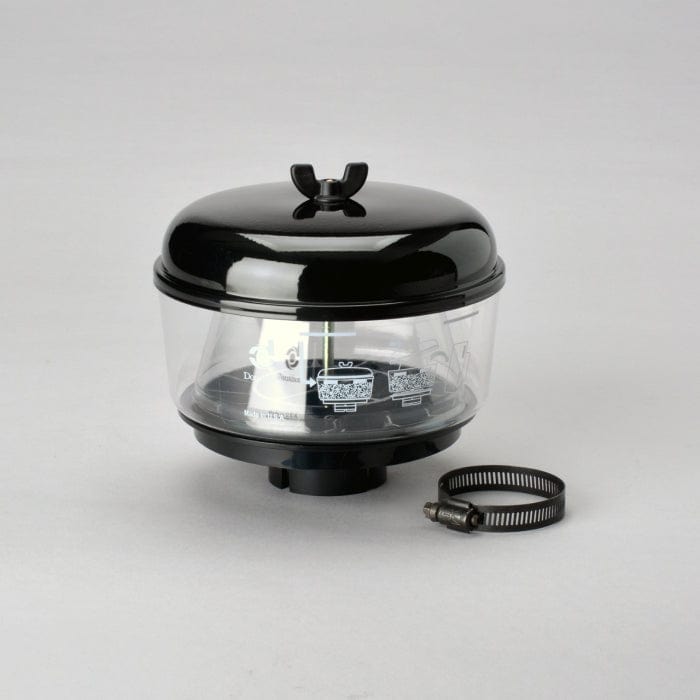

Pre-Cleaner, Full View - Donaldson H001250
Pre-Cleaner, Full View - Donaldson H001250
Regular price
£31.84
Regular price
Sale price
£31.84
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson H001250
Pre-Cleaner, Full View| Height | 6.17 inch (156.7 mm) |
| Body Diameter Maximum | 7.34 inch (186.5 mm) |
| Outlet ID | 2.26 inch (57.3 mm) |
| Efficiency | 75 |
| Efficiency Test Std | ISO 5011, SAE J726 |
| Rated Flow HR | 131 cfm (3.7 m³/min) |
| Restriction LR | 0.98 inch H2O (25 mm H2O) |
| Restriction HR | 2.99 inch H2O (76 mm H2O) |
Share
Collapsible content
Specifications
Attributes
- Height: 156.7 mm (6.17 inch)
- Body Diameter Maximum: 186.5 mm (7.34 inch)
- Outlet ID: 57.3 mm (2.26 inch)
- Efficiency: 75
- Efficiency Test Std: ISO 5011
- SAE J726:
- Rated Flow HR: 3.7 m³/min (131 cfm)
- Restriction LR: 25 mm H2O (0.98 inch H2O)
- Restriction HR: 76 mm H2O (2.99 inch H2O)
Packaged Dimensions
- Packaged Length: 0.197 m (7.87 inch)
- Packaged Width: 0.197 m (7.87 inch)
- Packaged Height: 0.177 m (7.09 inch)
- Packaged Weight: 0.687 kg (1.51 lb)
- Packaged Volume: 0.007 m3 (0.25 ft3)
Other Information
- Country of Origin: Germany
- HTS Code: 8421310090
- UPC Code: 742330003114
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AG CHEM EQUIPMENT | 71745019 | |
| AG CHEM EQUIPMENT | 71745019SUB | |
| AG CHEM EQUIPMENT | 702970SUB | |
| AG CHEM EQUIPMENT | 702970 | |
| AG CHEM EQUIPMENT | 605274SUB | |
| AG CHEM EQUIPMENT | 605274 | |
| AGCO | W10A9617 | |
| AGCO | 2732763M91 | |
| AGCO | 2732763M91SUB | |
| AGCO | 70257382 | |
| AGCO | 70257382SUB | |
| BARLOWORLD FINANZAUTO | 3292681M1 | |
| BELL | 200047SUB | |
| BELL | 200047 | |
| BEPCO GROUP LTD | 1681 | |
| CASE/CASE IH | 365261R91 | |
| CASE/CASE IH | A24439 | |
| CASE/CASE IH | 86620243 | |
| CASE/CASE IH | 81823388 | |
| CASE/CASE IH | 303729A1 | |
| CLARK | 552689 | |
| CLARK | 552689SUB | |
| CLARK,J.L. | 807842 | |
| CLARK,J.L. | M807842 | |
| DEUTZ | W10A9617 | |
| DRESSER | 365261R91 | |
| FIAT | 8562883 | |
| FIAT | 70624796SUB | |
| FIAT | 70624796 | |
| FORD | C0NN9A660A | |
| HAVAM | HD9342 | |
| HAVAM | HD9446 | |
| IVECO | 8562883 | |
| JOHN DEERE | AT170947 | |
| JOHN DEERE | AR26416 | |
| KOMATSU | 365261R91 | |
| KOMATSU | 365261R91SUB | |
| LOESING | 021845 | |
| LOESING | 21845 | |
| LULL | 3080201 | |
| MODERN LTD | 3555 | |
| NEW HOLLAND | 120211SUB | |
| NEW HOLLAND | 120211 | |
| NEW HOLLAND | NPN00843 | |
| NEW HOLLAND | 513214SUB | |
| NEW HOLLAND | 70624796SUB | |
| NEW HOLLAND | 513214 | |
| NEW HOLLAND | 70624796 | |
| NEW HOLLAND | CONN9A660A | |
| NISSAN/UD TRUCKS | 753950M1 | |
| OLSSONS I ELLOS AB | 81823388 | |
| OLSSONS I ELLOS AB | 1681 | |
| SAMCOR PRETORIA | C0NN9A660A | |
| THERMO KING | 115518SUB | |
| THERMO KING | 4666C49G02SUB | |
| THOMAS | 6441SUB | |
| VOLVO | 784646 | |
| VOLVO | VOE784646 | |
| WACKER NEUSON | 2810213 | |
| WALGAHN-MOTORENTECHN | 00810224 | |
| WALGAHN-MOTORENTECHN | 00810164 | |
| WALGAHN-MOTORENTECHN | 810224 | |
| WALGAHN-MOTORENTECHN | 810164 | |
| WEIDEMANN | 5559001250 | |
| WHITE | W10A9617 |
