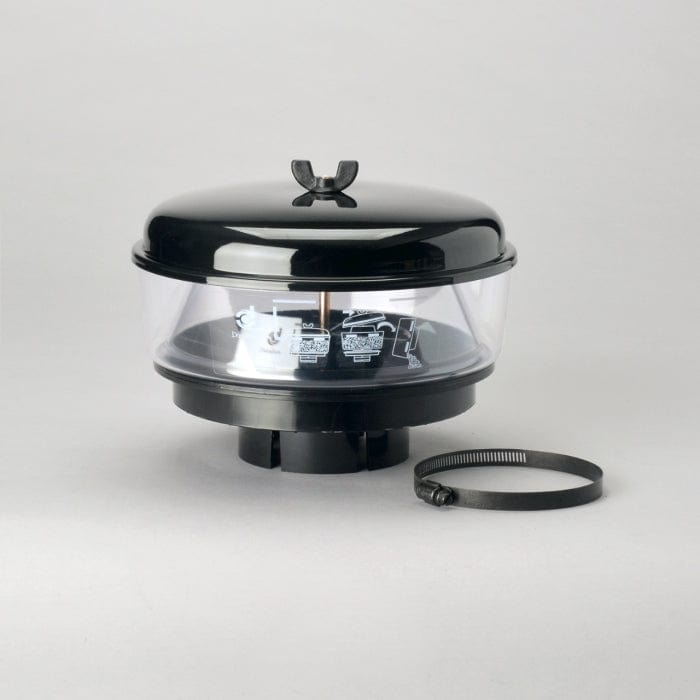

Pre-Cleaner, Full View - Donaldson H000823
Pre-Cleaner, Full View - Donaldson H000823
Regular price
£50.71
Regular price
Sale price
£50.71
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson H000823
Pre-Cleaner, Full View| Height | 7.68 inch (195 mm) |
| Body Diameter Maximum | 10.62 inch (269.75 mm) |
| Outlet ID | 4.54 inch (115.32 mm) |
| Efficiency | 75 |
| Efficiency Test Std | ISO 5011, SAE J726 |
| Rated Flow HR | 339 cfm (9.6 m³/min) |
| Restriction LR | 0.98 inch H2O (25 mm H2O) |
| Restriction HR | 2.99 inch H2O (76 mm H2O) |
Share
Collapsible content
Specifications
Attributes
- Height: 195 mm (7.68 inch)
- Body Diameter Maximum: 269.75 mm (10.62 inch)
- Outlet ID: 115.32 mm (4.54 inch)
- Efficiency: 75
- Efficiency Test Std: ISO 5011
- SAE J726:
- Rated Flow HR: 9.6 m³/min (339 cfm)
- Restriction LR: 25 mm H2O (0.98 inch H2O)
- Restriction HR: 76 mm H2O (2.99 inch H2O)
Packaged Dimensions
- Packaged Length: 0.276 m (11.02 inch)
- Packaged Width: 0.276 m (11.02 inch)
- Packaged Height: 0.256 m (10.24 inch)
- Packaged Weight: 1.689 kg (3.72 lb)
- Packaged Volume: 0.020 m3 (0.72 ft3)
Other Information
- Country of Origin: Germany
- HTS Code: 8421197000
- UPC Code: 742330002810
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AG CHEM EQUIPMENT | 514439 | |
| AGCO | 3371937M91 | |
| AGCO | AG514439 | |
| AGCO | 311466M91 | |
| AGCO | 4318403SUB | |
| AGCO | 4318403 | |
| AGCO | 521467M91 | |
| ARGO | 521467M91 | |
| ARGO | 311466M91 | |
| ARROW SPECIALTY | 209349SUB | |
| ATHEY | P83714 | |
| ATHEY | P201530 | |
| ATLAS | 16192331 | |
| ATLAS COPCO | 9724591033 | |
| ATLAS COPCO | 5540921700 | |
| ATLAS COPCO | 346253 | |
| ATLAS COPCO | 346253SUB | |
| ATLAS COPCO | 16192331 | |
| ATLAS COPCO | 16192331 | |
| ATLAS COPCO | 246253 | |
| ATLAS COPCO | 246253SUB | |
| BEPCO GROUP LTD | 1688 | |
| CAMECO | AT170942 | |
| CAMECO | AT170942J | |
| CASE/CASE IH | 258538A1 | |
| CASE/CASE IH | A171342 | |
| CASE/CASE IH | A171342 | |
| CATERPILLAR | 2001441 | |
| CHAMPION ROAD | 205133 | |
| CHARDONNET | 7400082300 | |
| COMPACTION AMERICA | 0397195 | |
| COMPAIR | 988663 | |
| COMPAIR | 25568340 | |
| DEZZI | 350015 | |
| DRESSER | 52140 | |
| EIMCO | 65820163 | |
| EIMCO | 65820163SUB | |
| EIMCO | U5820163 | |
| ENMTP CPG | 7363008 | |
| EUCLID | 3733683 | |
| EUCLID | 3733683SUB | |
| FARMHAND | 46631 | |
| FARMHAND | 46631SUB | |
| FAUN | 746433 | |
| FAUN | 0746433 | |
| FIAT | 70655272SUB | |
| FIAT | 70655272 | |
| FMC | 2262137 | |
| FMC | 253078 | |
| FORD | D4NN9A660A | |
| FORD | D4NN9A660A99M | |
| FORD | 441072 | |
| FORD | 82926171 | |
| FORD | M258538A1 | |
| FRANKLIN | O70200 | |
| FRANKLIN | 070200SUB | |
| FRANKLIN | 070200 | |
| FREIGHTLINER | DNH000823 | |
| GETMAN | 605316 | |
| GETMAN | 605316SUB | |
| HANOMAG TRAKTOREN | 2874193M92 | |
| HANOMAG TRAKTOREN | 2874193M92 | |
| HAVAM | HD9366 | |
| HAVAM | HD9416 | |
| HAWKER SIDDELEY | 38207913 | |
| HAWKER SIDDELEY | 29103 | |
| HAWKER SIDDELEY | 70200SUB | |
| HAWKER SIDDELEY | 29103SUB | |
| HAWKER SIDDELEY | 38207913 | |
| HYSTER | 397195 | |
| HYSTER | 397195SUB | |
| INGERSOLL RAND | 35295690SUB | |
| INGERSOLL RAND | 35295690 | |
| JCB | 32925400 | |
| JOHN DEERE | AT170942 | |
| JOHN DEERE | AZ21733 | |
| JOHN DEERE | AN6931 | |
| JOHNSTON SWEEPER COMPANY | 304117 | |
| KOBELCO | 258538A1 | |
| KOMATSU | 988663 | |
| KOMATSU | 52140 | |
| KOMATSU | 988663 | |
| KOMATSU | 25568340 | |
| KOMATSU | 321261R91 | |
| KOMATSU | 848101193 | |
| KOMATSU | Y848101193 | |
| KOMATSU | 25568340 | |
| KOMATSU | 42N5412780 | |
| LEROI | M438702SUB | |
| LIEBHERR | 7413341 | |
| LIEBHERR | 7363008 | |
| LISTER PETTER | 38207913 | |
| LISTER PETTER | 38207913 | |
| LISTER PETTER | 58210750 | |
| LOESING | 021681 | |
| LOESING | 21681 | |
| MACLEAN ENGINERING & MKTG. CO. | 568097 | |
| MASSEY FERGUSON | 521467M91 | |
| MASSEY FERGUSON | 521467M91 | |
| MASSEY FERGUSON | 311466M91 | |
| MASSEY FERGUSON | 311466M91 | |
| MI-JACK | F7DPBH000823 | |
| MINNPAR | 70655272 | |
| MINNPAR | 70655272SUB | |
| MODERN LTD | 35512 | |
| MORBARK | 29320663 | |
| NEW HOLLAND | 70655272SUB | |
| NEW HOLLAND | 70655272 | |
| NEW HOLLAND | 1849262 | |
| NEW HOLLAND | A171342 | |
| NEW HOLLAND | 189886 | |
| NEW HOLLAND | 371884 | |
| NEW HOLLAND | NP5102570 | |
| NEW HOLLAND | 9705285 | |
| NEW HOLLAND | 371884 | |
| OLSSONS I ELLOS AB | 83904364 | |
| OLSSONS I ELLOS AB | FD3904364 | |
| OSHKOSH | 13734PSUB | |
| OSHKOSH | 13734P | |
| PERKINS | 13000547 | |
| RENAULT VI | 0024551113 | |
| RENAULT VI | 24551113 | |
| SAME | 242391600 | |
| SANDVIK | 32914523 | |
| SANDVIK | U5820163 | |
| SISU | 3733683SUB | |
| SULLIVAN PALATEK | 5010720036SUB | |
| SUPERPAK COMPACTION | 205133 | |
| TEREX | 988663 | |
| TEREX | A171342 | |
| TEREX | 25568340 | |
| TEREX | 0906041203 | |
| TEREX | 906041203 | |
| TEREX | A171342 | |
| TEREX | W1750596 | |
| TIMBERJACK | 810483100 | |
| TIMBERJACK | 810483100SUB | |
| TROJAN | 074643300SUB | |
| TROJAN | 205232700SUB | |
| VALMET | 3733683SUB | |
| VERMEER | 21270011 | |
| VERMEER | 21270011SUB | |
| VERSATILE | 86011276 | |
| VOLVO | 205133 | |
| VOLVO | 14398365 | |
| WAGNER MINING EQUIPMENT | 346253SUB | |
| WALGAHN-MOTORENTECHN | 00810170 | |
| WALGAHN-MOTORENTECHN | 810170 | |
| WALGAHN-MOTORENTECHN | 00810191 | |
| WALGAHN-MOTORENTECHN | 810191 | |
| WAUKESHA | 179068SUB | |
| WAUKESHA | 179068 | |
| WAUKESHA | 209349 | |
| WAUKESHA | 209349SUB | |
| WAUKESHA | 10CS56SUB | |
| WAUKESHA | 10CS56 |
