• Donaldson Pre-Cleaner, Full View - Donaldson H000820
1 1

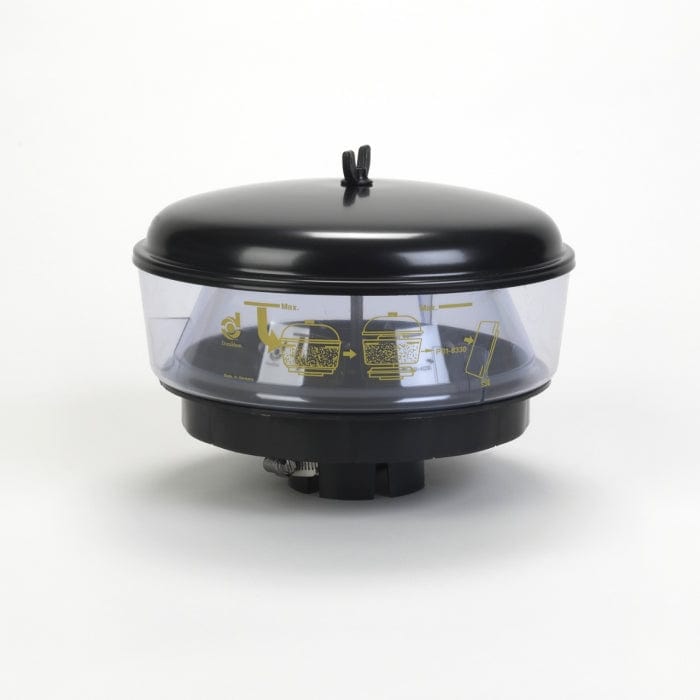

Pre-Cleaner, Full View - Donaldson H000820

Pre-Cleaner, Full View - Donaldson H000820

£42.97
£42.97
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson H000820

Pre-Cleaner, Full View
Height 7.68 inch (195 mm)
Body Diameter Maximum 10.62 inch (269.75 mm)
Outlet ID 3.04 inch (77.22 mm)
Efficiency 75
Efficiency Test Std ISO 5011, SAE J726
Rated Flow HR 321 cfm (9.1 m³/min)
Restriction LR 0.98 inch H2O (25 mm H2O)
Restriction HR 2.99 inch H2O (76 mm H2O)
View full details

Specifications

Attributes

  • Height: 195 mm (7.68 inch)
  • Body Diameter Maximum: 269.75 mm (10.62 inch)
  • Outlet ID: 77.22 mm (3.04 inch)
  • Efficiency: 75
  • Efficiency Test Std: ISO 5011
  • SAE J726:
  • Rated Flow HR: 9.1 m³/min (321 cfm)
  • Restriction LR: 25 mm H2O (0.98 inch H2O)
  • Restriction HR: 76 mm H2O (2.99 inch H2O)

Packaged Dimensions

  • Packaged Length: 0.276 m (11.02 inch)
  • Packaged Width: 0.276 m (11.02 inch)
  • Packaged Height: 0.246 m (9.84 inch)
  • Packaged Weight: 1.686 kg (3.72 lb)
  • Packaged Volume: 0.019 m3 (0.69 ft3)

Other Information

  • Country of Origin: Germany
  • HTS Code: 8421310090
  • UPC Code: 742330002797

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
ACMAT PROLTV070
AG CHEM EQUIPMENT 513782
AGCO AG513782
AGCO 70651267
AGCO 70651267SUB
AGCO 230654M91
AGCO 230654M91SUB
AGCO 3371936M91
AGCO 78627462
AGCO T1004010H
AGCO 70249888
AGCO 78627462SUB
AGCO 3728900M1
AGCO 70249888SUB
AGCO 70249888V
ALLMAND BROS 433433
ALLMAND BROS 433433SUB
ARROW-MASTER 4001904
BEPCO GROUP LTD 1682
BLAW KNOX 240631
BOBCAT 1686098
BROCE BROOM H000820764140
BROCE BROOM H000253
BROCE BROOM H000253SUB
CASE/CASE IH C0450503
CASE/CASE IH 405544A1
CASE/CASE IH 6098129M1
CASE/CASE IH 82008248
CASE/CASE IH C0450503
CATERPILLAR 7C8777
CATERPILLAR 7C8777
CHARDONNET 7400082000
CLARK 1686098SUB
CLARK 061686098
CLARK 61686098
CLARK 1686098
COMPACTION AMERICA 853522015SUB
DEUTZ 4318403KZ102
DEUTZ 04318399KZ
DOOSAN 1686098
DRESSER 3031547R92
DRONNINGBORG 46427700
DYNAPAC 499135
EIMCO 64801827
EIMCO 9112906072SUB
EIMCO 9112906072
FAUN 0746646
FAUN 746646
FENWICK 8100778
FIAT 82008248
FODEN Y05779103
FORD 82926173
FORD 82008248
FORD C9NN9A660C
FURUKAWA 31547R92
FURUKAWA 3031547R92
GETMAN 284090SUB
GETMAN 284090
HAVAM HD9410
HAVAM HD9360
HAY & FORAGE 48484
HYSTER SKS445663
HYSTER SKS445663SUB
HYSTER 1301167SUB
HYSTER 1301167
INGERSOLL RAND 1686098
JOHN DEERE AT170918
JOHN DEERE AZ24175
KALMAR H000820
KHD 4318403KZ102
KHD 04318399KZ
KOMATSU 277375R91
KOMATSU 277375R91SUB
KYSOR 460C096
LOESING 021678
LOESING 21678
LULL P19742SUB
MASSEY FERGUSON 3699806M91
MASSEY FERGUSON 3296800M91
MASSEY FERGUSON 3296800M91
MERKOTEK 0019020U1M
MODERN LTD 3558
MORBARK 29321321
NACCO MATERIALS 1301167
NACCO MATERIALS 1301167SUB
NACCO MATERIALS 580002721
NEW HOLLAND 82008248
NEW HOLLAND C0450503
OLSSONS I ELLOS AB BM795619
OLSSONS I ELLOS AB 1682
OLSSONS I ELLOS AB 81821684
ORENSTEIN & KOPPEL 8406365
SAMCOR PRETORIA 97NU9A660CA
SAMCOR PRETORIA 97NU9A660BA
SAME 104318399
SANDVIK 64801827
SIGMA AIR CONDITIONING 460C096
STILL 507629
TEREX C0450503
TEREX 8406365
TEREX C0450503
TIM 7C8777
TIM 7C8777
UNITED CENTRAL INDUSTRIAL SUPP 686400
VAPORMATIC CPD4109
VERSATILE 82008248
VOLVO 4804190
VOLVO 4804190
WALGAHN-MOTORENTECHN 00810167
WALGAHN-MOTORENTECHN 810167
WALGAHN-MOTORENTECHN 00810188
WALGAHN-MOTORENTECHN 810188
WAUKESHA 10CS55SUB
WESTERN COMBINE 48484SUB
