Piston for Toyota 3Z Engine - 1mm Oversized
Model Number: 52-8FDJF35
Equipment Start Date: 01/08/2007
Equipment End Date: 28/02/2014
NON-GENUINE high quality compatible part

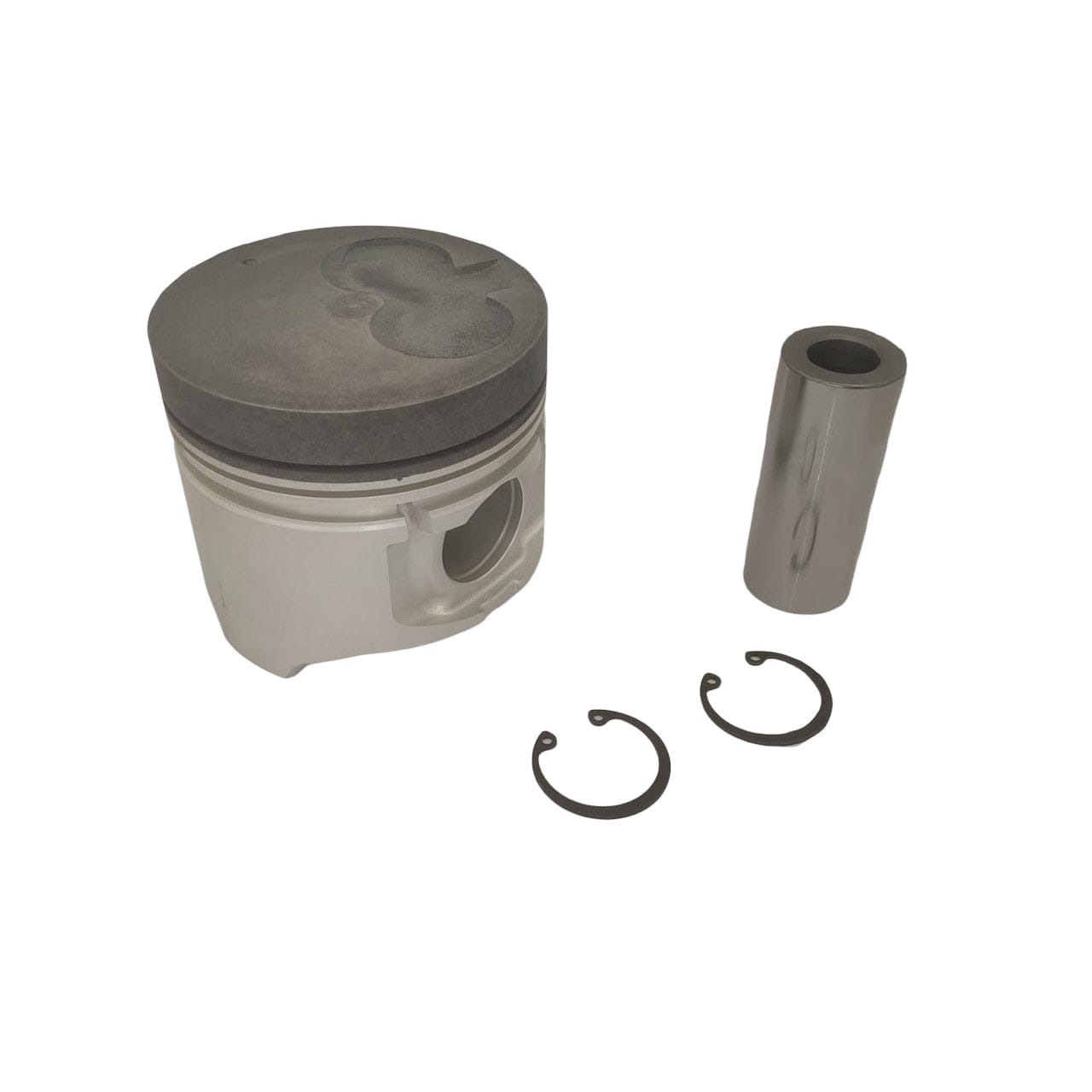

Contains
- 1 x Piston
- 1 x Gudgeon Pin
- 2 x C clips
Specifications
- Piston Diameter D1 (mm): 99
- Total Height H1 (mm): 87.4
- Shaft Diameter PD (mm): 31.9
- Shaft Length PL (mm): 77
- Compression Height CH (mm): 49.5
- Height H2: -2,40
- Width S1 (mm): 2
- Width S2 (mm): 2
- Width S3 (mm): 3.95
- Type of Head: 95
- Weight (tolerance 2%) (kg): 0.75
- Pin present: YES
