Piston (0.5mm Oversized) for Toyota 3Z Engine
Piston (0.5mm Oversized) for Toyota 3Z Engine
Regular price
£144.25
Regular price
Sale price
£144.25
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Piston for Toyota 3Z Engine - 0.5mm Oversized
Model Number: 52-8FDJF35
Equipment Start Date: 01/08/2007
Equipment End Date: 28/02/2014
NON-GENUINE high quality compatible part

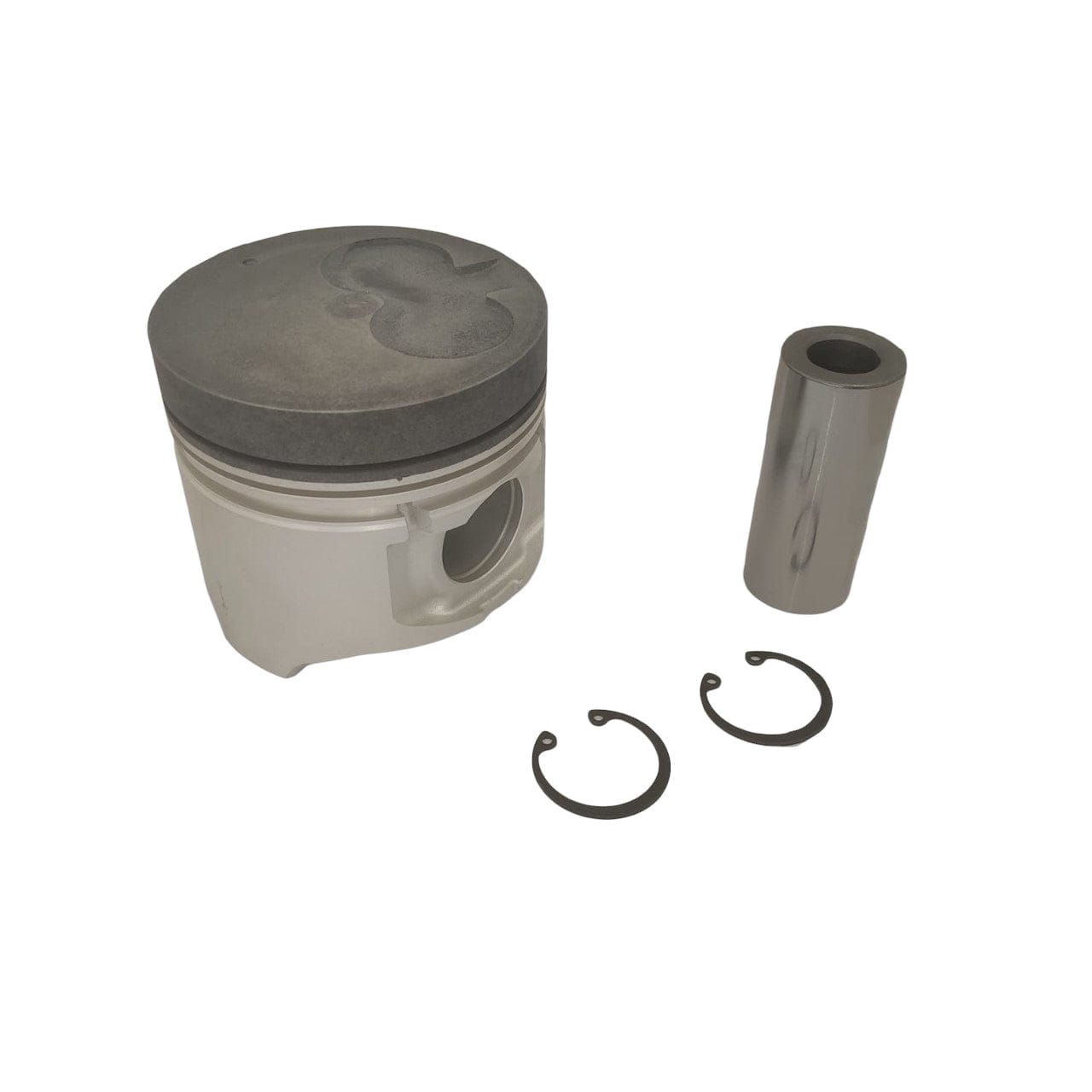

Contains
- 1 x Piston
- 1 x Gudgeon Pin
- 2 x C clips
Specifications
- Piston Diameter D1 (mm): 98.5
- Total Height H1 (mm): 87.5
- Shaft Diameter PD (mm): 32
- Shaft Length PL (mm): 77
- Compression Height CH (mm): 49.5
- Height H2: -2,40
- Width S1 (mm): 2
- Width S2 (mm): 2.1
- Width S3 (mm): 4
- Type of Head: 95
- Weight (tolerance 2%) (kg): 0.74
- Pin present: YES
