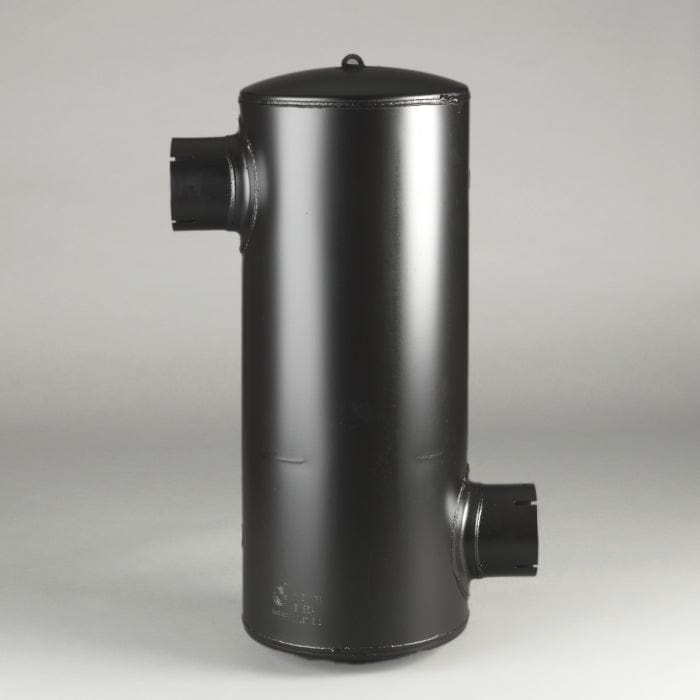

Muffler, Round Style 6 - Donaldson M101171

Muffler, Round Style 6 - Donaldson M101171

£368.83
£368.83
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson M101171

Muffler, Round Style 6
View full details

Specifications

Attributes

  • Inlet Diameter: 102 mm (4.02 inch)
  • Outlet Diameter: 102 mm (4.02 inch)
  • Body Diameter Maximum: 254 mm (10.00 inch)
  • Body Length: 596.9 mm (23.50 inch)
  • Overall Length: 666.5 mm (26.24 inch)
  • Rated Flow LR: 40 m³/min (1413 cfm)
  • Rated Flow MR: 44.4 m³/min (1568 cfm)
  • Rated Flow HR: 56.6 m³/min (1999 cfm)
  • Back Pressure Low-Range: 25 mm Hg (0.98 inch Hg)
  • Back Pressure Mid-Range: 51 mm Hg (2.01 inch Hg)
  • Back Pressure High-Range: 76 mm Hg (2.99 inch Hg)
  • Attenuation LR: 12 dBA
  • Attenuation HR: 18 dBA
  • Inlet Clock Position: 6
  • Outlet Clock Position: 12
  • Style: Style 6

Packaged Dimensions

  • Packaged Length: 0.816 m (32.63 inch)
  • Packaged Width: 0.413 m (16.50 inch)
  • Packaged Height: 0.266 m (10.63 inch)
  • Packaged Weight: 9.464 kg (20.85 lb)
  • Packaged Volume: 0.093 m3 (3.31 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 125850-08
  • HTS Code: 8708923500
  • UPC Code: 742330114032

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
AMERICAN AUGERS 8NG3100024 Muffler Clamp is P004076
AMERICAN AUGERS 8NG3100025
CASE/CASE IH N100283
LINK BELT J9A0331
NELSON 201574N
PERKINS 13000571
