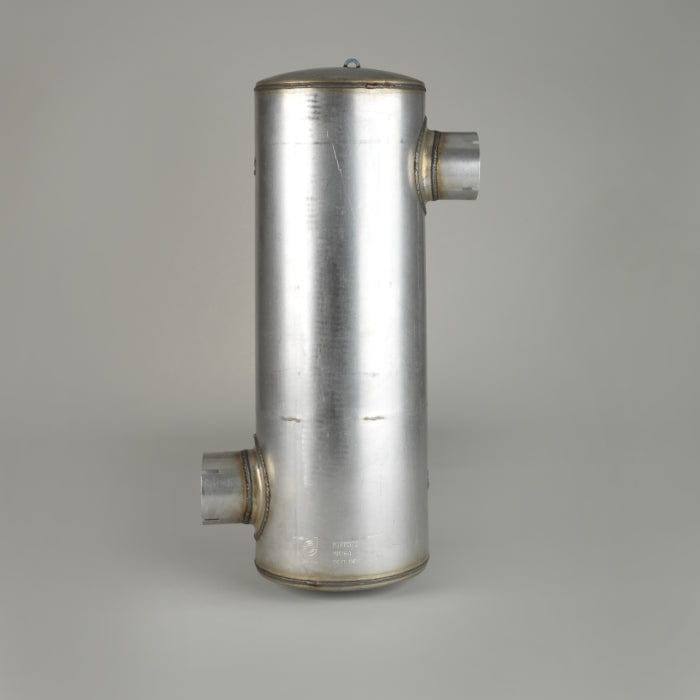

Muffler, Round Style 6 - Donaldson M100572

Muffler, Round Style 6 - Donaldson M100572

£326.52
£326.52
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson M100572

Muffler, Round Style 6
Inlet Diameter 4.02 inch (102.11 mm)
Outlet Diameter 4.02 inch (102.11 mm)
Body Diameter Maximum 10.08 inch (256 mm)
Body Length 28.00 inch (711.2 mm)
Overall Length 30.62 inch (777.7 mm)
Rated Flow LR 957 cfm (27.1 m³/min)
Rated Flow MR 1353 cfm (38.3 m³/min)
Rated Flow HR 1656 cfm (46.9 m³/min)
Back Pressure Low-Range 0.98 inch Hg (25 mm Hg)
Back Pressure Mid-Range 2.01 inch Hg (51 mm Hg)
Back Pressure High-Range 2.99 inch Hg (76 mm Hg)
Attenuation LR 15 dBA
Attenuation HR 20 dBA
Inlet Clock Position 6:00
Outlet Clock Position 12:00
Style Style 6
View full details

Specifications

Attributes

  • Inlet Diameter: 102.11 mm (4.02 inch)
  • Outlet Diameter: 102.11 mm (4.02 inch)
  • Body Diameter Maximum: 256 mm (10.08 inch)
  • Body Length: 711.2 mm (28.00 inch)
  • Overall Length: 777.7 mm (30.62 inch)
  • Rated Flow LR: 27.1 m³/min (957 cfm)
  • Rated Flow MR: 38.3 m³/min (1353 cfm)
  • Rated Flow HR: 46.9 m³/min (1656 cfm)
  • Back Pressure Low-Range: 25 mm Hg (0.98 inch Hg)
  • Back Pressure Mid-Range: 51 mm Hg (2.01 inch Hg)
  • Back Pressure High-Range: 76 mm Hg (2.99 inch Hg)
  • Attenuation LR: 15 dBA
  • Attenuation HR: 20 dBA
  • Inlet Clock Position: 6
  • Outlet Clock Position: 12
  • Style: Style 6

Packaged Dimensions

  • Packaged Length: 0.875 m (35.00 inch)
  • Packaged Width: 0.388 m (15.50 inch)
  • Packaged Height: 0.263 m (10.50 inch)
  • Packaged Weight: 11.241 kg (24.76 lb)
  • Packaged Volume: 0.092 m3 (3.30 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 125850-05
  • HTS Code: 8708923500
  • UPC Code: 742330005538

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
A P PARTS 3937
AP EXHAUST PRODUCTS INC 3937
ASTEC UNDERGROUND 306245262
ATHEY P1005585
ATHEY 6181929
BADGER 76072056
CASE/CASE IH NM100572
CATERPILLAR 5Q8753
CETCO INCORPORATED 853030041
COUGLAR INDUSTRIES T303602
CUMMINS 10000541
CUMMINS 10000641
ELGIN 6181929
FMC C6H0006
GRADALL 77383778
HEAVY DUTY MFG 31249
INTERNATIONAL DCM100572
JLG 77383778
LBX COMPANY LLC C6H0006
LINK BELT C6H0006
NACCO MATERIALS S010168452
PERKINS 13000271
RIKER 10932
STEMCO 1901337
TAYLOR 2403518
TRUCKEX 3937
TYMCO 13013
WALKER MANUFACTURING 22775
