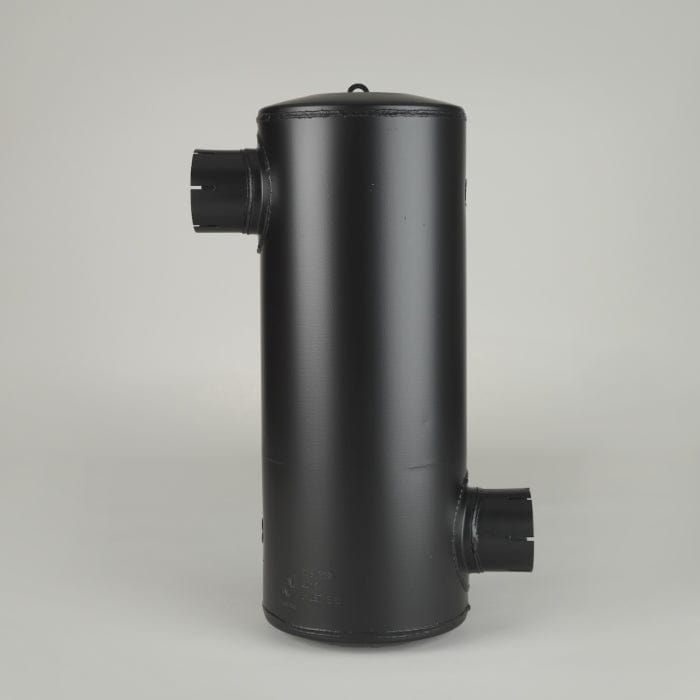

Muffler, Round Style 6 - Donaldson M091050
Muffler, Round Style 6 - Donaldson M091050
Regular price
£353.80
Regular price
Sale price
£353.80
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson M091050
Muffler, Round Style 6| Inlet Diameter | 3.51 inch (89.28 mm) |
| Outlet Diameter | 3.51 inch (89.28 mm) |
| Body Diameter Maximum | 9.00 inch (228.6 mm) |
| Body Length | 21.50 inch (546.1 mm) |
| Overall Length | 23.65 inch (600.6 mm) |
| Rated Flow LR | 865 cfm (24.5 m³/min) |
| Rated Flow MR | 1201 cfm (34 m³/min) |
| Rated Flow HR | 1201 cfm (34 m³/min) |
| Back Pressure Low-Range | 0.98 inch Hg (25 mm Hg) |
| Back Pressure Mid-Range | 2.01 inch Hg (51 mm Hg) |
| Back Pressure High-Range | 2.99 inch Hg (76 mm Hg) |
| Attenuation LR | 12 dBA |
| Attenuation HR | 18 dBA |
| Inlet Clock Position | 6:00 |
| Outlet Clock Position | 12:00 |
| Style | Style 6 |
Share
Collapsible content
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AMERICAN AUGERS | 8NG1001506 | |
| CUMMINS | 10000521 | |
| NELSON | 201569N | |
| SULLIVAN PALATEK | 050187850043 | |
| VERMEER | 296274651 |
