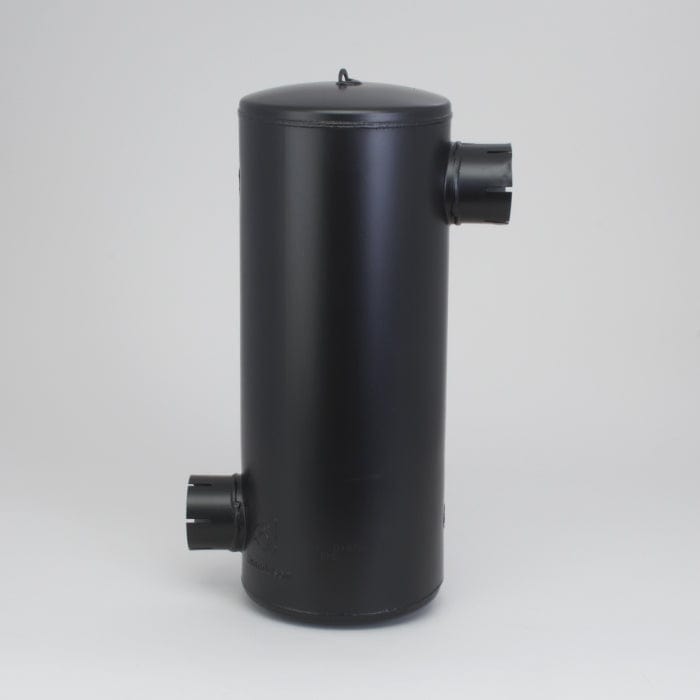

Muffler, Round Style 6 - Donaldson M085411

Muffler, Round Style 6 - Donaldson M085411

£378.18
£378.18
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson M085411

Muffler, Round Style 6
Inlet Diameter 3.02 inch (76.66 mm)
Outlet Diameter 3.02 inch (76.66 mm)
Body Diameter Maximum 8.46 inch (215 mm)
Body Length 19.75 inch (501.6 mm)
Overall Length 24.27 inch (616.4 mm)
Rated Flow LR 636 cfm (18 m³/min)
Rated Flow MR 883 cfm (25 m³/min)
Rated Flow HR 883 cfm (25 m³/min)
Back Pressure Low-Range 0.98 inch Hg (25 mm Hg)
Back Pressure Mid-Range 2.01 inch Hg (51 mm Hg)
Back Pressure High-Range 2.99 inch Hg (76 mm Hg)
Attenuation LR 12 dBA
Attenuation HR 18 dBA
Inlet Clock Position 6:00
Outlet Clock Position 12:00
Style Style 6
View full details

Specifications

Attributes

  • Inlet Diameter: 76.66 mm (3.02 inch)
  • Outlet Diameter: 76.66 mm (3.02 inch)
  • Body Diameter Maximum: 215 mm (8.46 inch)
  • Body Length: 501.6 mm (19.75 inch)
  • Overall Length: 616.4 mm (24.27 inch)
  • Rated Flow LR: 18 m³/min (636 cfm)
  • Rated Flow MR: 25 m³/min (883 cfm)
  • Rated Flow HR: 25 m³/min (883 cfm)
  • Back Pressure Low-Range: 25 mm Hg (0.98 inch Hg)
  • Back Pressure Mid-Range: 51 mm Hg (2.01 inch Hg)
  • Back Pressure High-Range: 76 mm Hg (2.99 inch Hg)
  • Attenuation LR: 12 dBA
  • Attenuation HR: 18 dBA
  • Inlet Clock Position: 6
  • Outlet Clock Position: 12
  • Style: Style 6

Packaged Dimensions

  • Packaged Length: 0.572 m (22.90 inch)
  • Packaged Width: 0.347 m (13.90 inch)
  • Packaged Height: 0.233 m (9.30 inch)
  • Packaged Weight: 6.626 kg (14.60 lb)
  • Packaged Volume: 0.048 m3 (1.71 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 125850-05
  • HTS Code: 8708923500
  • UPC Code: 742330113929

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
BOSS INDUSTRIES 307708
BOSS INDUSTRIES M085411248147
CASE/CASE IH N100270
CUMMINS 10000520
DIAMANT BOART INC 574554401
HOIST LIFTTRUCK MANUFACTURING M13035
LINK BELT E8A0593
NELSON 201564N
NEW HOLLAND 4170
SULLIVAN PALATEK 050187850042
