Muffler, Round Style 6 - Donaldson M085208
Muffler, Round Style 6 - Donaldson M085208
Regular price
£246.47
Regular price
Sale price
£246.47
Unit price
/
per
Donaldson M085208

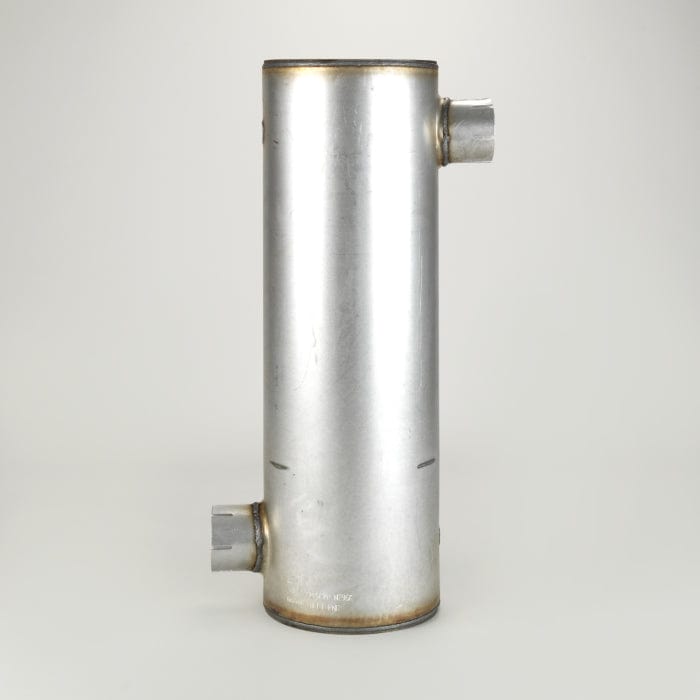

Muffler, Round Style 6Inlet Diameter | 3.02 inch (76.66 mm) |
Outlet Diameter | 3.02 inch (76.66 mm) |
Body Diameter Maximum | 8.46 inch (214.88 mm) |
Body Length | 20.00 inch (508 mm) |
Overall Length | 27.00 inch (685.8 mm) |
Rated Flow LR | 600 cfm (17 m³/min) |
Rated Flow MR | 650 cfm (18.4 m³/min) |
Rated Flow HR | 1042 cfm (29.5 m³/min) |
Back Pressure Low-Range | 0.98 inch Hg (25 mm Hg) |
Back Pressure Mid-Range | 2.01 inch Hg (51 mm Hg) |
Back Pressure High-Range | 2.99 inch Hg (76 mm Hg) |
Attenuation LR | 15 dBA |
Attenuation HR | 20 dBA |
Inlet Clock Position | 6:00 |
Outlet Clock Position | 12:00 |
Style | Style 6 |
