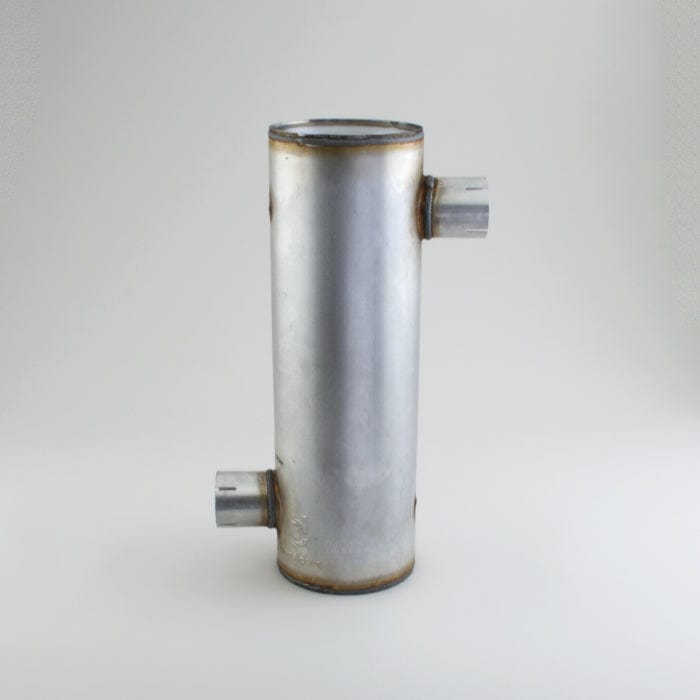

• Donaldson Muffler, Round Style 6 - Donaldson M065074
1 1

Muffler, Round Style 6 - Donaldson M065074

Muffler, Round Style 6 - Donaldson M065074

£221.52
£221.52
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson M065074

Muffler, Round Style 6
Inlet Diameter 2.51 inch (63.88 mm)
Outlet Diameter 2.51 inch (63.88 mm)
Body Diameter Maximum 6.61 inch (167.9 mm)
Body Length 20.81 inch (528.6 mm)
Overall Length 20.81 inch (528.6 mm)
Rated Flow LR 399 cfm (11.3 m³/min)
Rated Flow MR 565 cfm (16 m³/min)
Rated Flow HR 692 cfm (19.6 m³/min)
Back Pressure Low-Range 0.98 inch Hg (25 mm Hg)
Back Pressure Mid-Range 2.01 inch Hg (51 mm Hg)
Back Pressure High-Range 2.99 inch Hg (76 mm Hg)
Attenuation LR 15 dBA
Attenuation HR 20 dBA
Inlet Clock Position 6:00
Outlet Clock Position 12:00
Style Style 6
View full details

Specifications

Attributes

  • Inlet Diameter: 63.88 mm (2.51 inch)
  • Outlet Diameter: 63.88 mm (2.51 inch)
  • Body Diameter Maximum: 167.9 mm (6.61 inch)
  • Body Length: 528.6 mm (20.81 inch)
  • Overall Length: 528.6 mm (20.81 inch)
  • Rated Flow LR: 11.3 m³/min (399 cfm)
  • Rated Flow MR: 16 m³/min (565 cfm)
  • Rated Flow HR: 19.6 m³/min (692 cfm)
  • Back Pressure Low-Range: 25 mm Hg (0.98 inch Hg)
  • Back Pressure Mid-Range: 51 mm Hg (2.01 inch Hg)
  • Back Pressure High-Range: 76 mm Hg (2.99 inch Hg)
  • Attenuation LR: 15 dBA
  • Attenuation HR: 20 dBA
  • Inlet Clock Position: 6
  • Outlet Clock Position: 12
  • Style: Style 6

Packaged Dimensions

  • Packaged Length: 0.581 m (23.23 inch)
  • Packaged Width: 0.197 m (7.87 inch)
  • Packaged Height: 0.325 m (12.99 inch)
  • Packaged Weight: 5.410 kg (11.93 lb)
  • Packaged Volume: 0.039 m3 (1.38 ft3)

Other Information

  • Country of Origin: China
  • HTS Code: 8708923500
  • UPC Code: 742330004708

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
CASE/CASE IH N102766
CASE/CASE IH 3612180
CUMMINS 10000628
FIAT 3612180
FREIGHTLINER DNM065074
HEAVY DUTY MFG 31246
INTERNATIONAL DCM065074
MILLER SPREADER 4710519
MORBARK 29323094
PERKINS 13000177
PERKINS 13000451
PRINOTH 114656200
TENNANT 764077
VOLVO 36752707
WALDON 46U303
WALDON 460303
