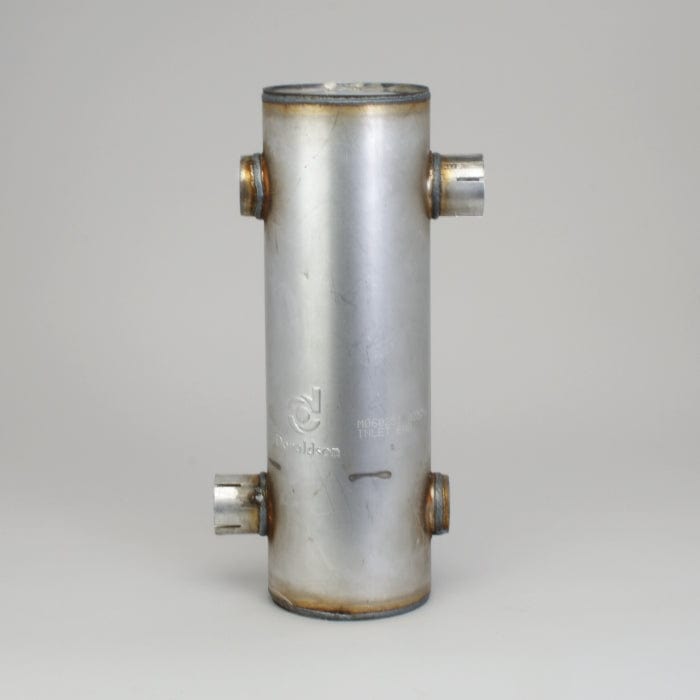

Muffler, Round Style 6 - Donaldson M060251
Muffler, Round Style 6 - Donaldson M060251
Regular price
£199.19
Regular price
Sale price
£199.19
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson M060251
Muffler, Round Style 6| Inlet Diameter | 2.02 inch (51.31 mm) |
| Outlet Diameter | 2.02 inch (51.31 mm) |
| Body Diameter Maximum | 5.98 inch (152 mm) |
| Body Length | 11.81 inch (300 mm) |
| Overall Length | 18.81 inch (477.8 mm) |
| Rated Flow LR | 283 cfm (8 m³/min) |
| Rated Flow MR | 399 cfm (11.3 m³/min) |
| Rated Flow HR | 487 cfm (13.8 m³/min) |
| Back Pressure Low-Range | 0.98 inch Hg (25 mm Hg) |
| Back Pressure Mid-Range | 2.01 inch Hg (51 mm Hg) |
| Back Pressure High-Range | 2.99 inch Hg (76 mm Hg) |
| Attenuation LR | 12 dBA |
| Attenuation HR | 18 dBA |
| Inlet Clock Position | 6:00 |
| Outlet Clock Position | 12:00 |
| Style | Style 6 |
Share
Collapsible content
Specifications
Attributes
- Inlet Diameter: 51.31 mm (2.02 inch)
- Outlet Diameter: 51.31 mm (2.02 inch)
- Body Diameter Maximum: 152 mm (5.98 inch)
- Body Length: 300 mm (11.81 inch)
- Overall Length: 477.8 mm (18.81 inch)
- Rated Flow LR: 8 m³/min (283 cfm)
- Rated Flow MR: 11.3 m³/min (399 cfm)
- Rated Flow HR: 13.8 m³/min (487 cfm)
- Back Pressure Low-Range: 25 mm Hg (0.98 inch Hg)
- Back Pressure Mid-Range: 51 mm Hg (2.01 inch Hg)
- Back Pressure High-Range: 76 mm Hg (2.99 inch Hg)
- Attenuation LR: 12 dBA
- Attenuation HR: 18 dBA
- Inlet Clock Position: 6
- Outlet Clock Position: 12
- Style: Style 6
Packaged Dimensions
- Packaged Length: 1.316 m (52.63 inch)
- Packaged Width: 0.263 m (10.50 inch)
- Packaged Height: 0.263 m (10.50 inch)
- Packaged Weight: 9.988 kg (22.00 lb)
- Packaged Volume: 0.094 m3 (3.36 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 125850-09
- HTS Code: 8708923500
- UPC Code: 742330004623
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AMERICAN AUGERS | 8NG1001608 | |
| BLUEBIRD | 3983244 | |
| BOSS INDUSTRIES | 304050 | |
| CASE/CASE IH | 3612177 | |
| CASE/CASE IH | 153612177 | |
| CUMMINS | 10000627 | |
| DITCH WITCH | 194479A | |
| FIAT | 3612177 | |
| FIAT | 153612177 | |
| FORD | 9575M060251 | |
| HEAVY DUTY MFG | 31245 | |
| INTERNATIONAL | DCM060251 | |
| KOEHRING | MK160668 | |
| NEW HOLLAND | 153612177 | |
| OTTAWA TRUCK | 507120 | |
| TAYLOR | 2001103 | |
| TYMCO | 22332 | |
| TYMCO | 9999 |
