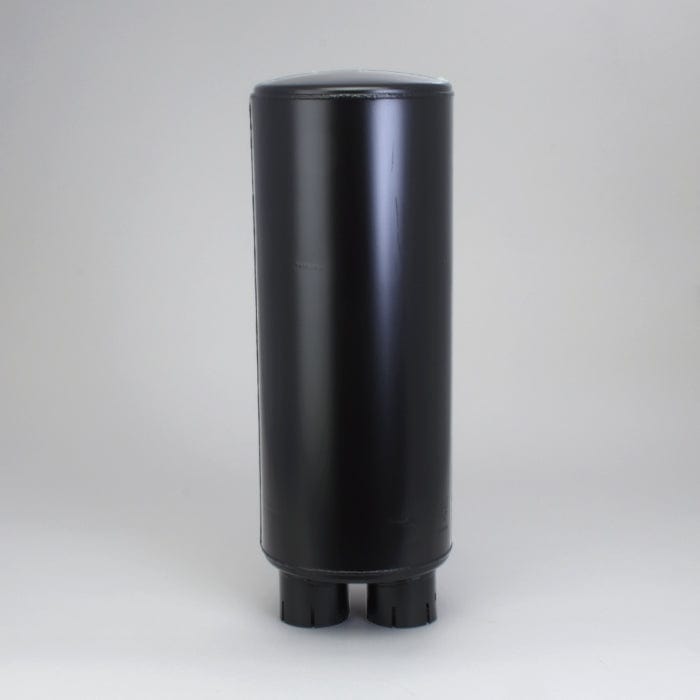

Muffler, Round Style 5 - Donaldson M085410

Muffler, Round Style 5 - Donaldson M085410

£280.04
£280.04
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson M085410

Muffler, Round Style 5
Inlet Diameter 3.02 inch (76.66 mm)
Outlet Diameter 3.02 inch (76.66 mm)
Body Diameter Maximum 8.46 inch (215 mm)
Body Length 19.75 inch (501.6 mm)
Overall Length 24.27 inch (616.4 mm)
Rated Flow LR 636 cfm (18 m³/min)
Rated Flow MR 883 cfm (25 m³/min)
Rated Flow HR 1125 cfm (31.86 m³/min)
Back Pressure Low-Range 0.98 inch Hg (25 mm Hg)
Back Pressure Mid-Range 2.01 inch Hg (51 mm Hg)
Back Pressure High-Range 2.99 inch Hg (76 mm Hg)
Attenuation LR 12 dBA
Attenuation HR 18 dBA
Inlet Clock Position 6:00
Outlet Clock Position 12:00
Style Style 5
View full details

Specifications

Attributes

  • Inlet Diameter: 76.66 mm (3.02 inch)
  • Outlet Diameter: 76.66 mm (3.02 inch)
  • Body Diameter Maximum: 215 mm (8.46 inch)
  • Body Length: 501.6 mm (19.75 inch)
  • Overall Length: 616.4 mm (24.27 inch)
  • Rated Flow LR: 18 m³/min (636 cfm)
  • Rated Flow MR: 25 m³/min (883 cfm)
  • Rated Flow HR: 31.86 m³/min (1125 cfm)
  • Back Pressure Low-Range: 25 mm Hg (0.98 inch Hg)
  • Back Pressure Mid-Range: 51 mm Hg (2.01 inch Hg)
  • Back Pressure High-Range: 76 mm Hg (2.99 inch Hg)
  • Attenuation LR: 12 dBA
  • Attenuation HR: 18 dBA
  • Inlet Clock Position: 6
  • Outlet Clock Position: 12
  • Style: Style 5

Packaged Dimensions

  • Packaged Length: 0.744 m (29.75 inch)
  • Packaged Width: 0.219 m (8.75 inch)
  • Packaged Height: 0.231 m (9.25 inch)
  • Packaged Weight: 7.786 kg (17.15 lb)
  • Packaged Volume: 0.039 m3 (1.39 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 125850-08
  • HTS Code: 8708923500
  • UPC Code: 742330113912

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
COMPACTION AMERICA 057320202
NELSON 201563N
TAYLOR 4044382
