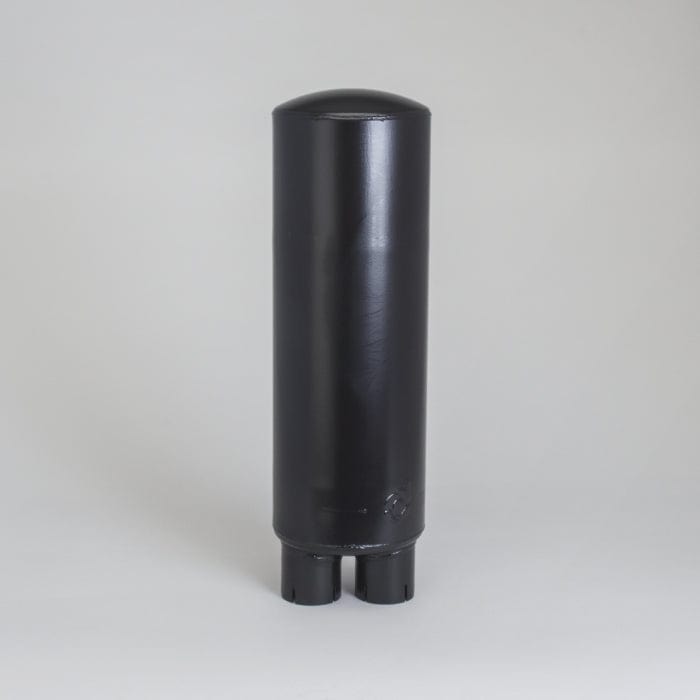

Muffler, Round Style 5 - Donaldson M065141

Muffler, Round Style 5 - Donaldson M065141

£228.95
£228.95
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson M065141

Muffler, Round Style 5
Inlet Diameter 2.51 inch (63.88 mm)
Outlet Diameter 2.51 inch (63.88 mm)
Body Diameter Maximum 6.61 inch (167.89 mm)
Body Length 17.75 inch (450.85 mm)
Overall Length 22.04 inch (559.82 mm)
Rated Flow LR 441 cfm (12.5 m³/min)
Rated Flow MR 611 cfm (17.3 m³/min)
Rated Flow HR 611 cfm (17.3 m³/min)
Back Pressure Low-Range 0.98 inch Hg (25 mm Hg)
Back Pressure Mid-Range 2.01 inch Hg (51 mm Hg)
Back Pressure High-Range 2.99 inch Hg (76 mm Hg)
Attenuation LR 12 dBA
Attenuation HR 18 dBA
Inlet Clock Position 6:00
Outlet Clock Position 12:00
Style Style 5
View full details

Specifications

Attributes

  • Inlet Diameter: 63.88 mm (2.51 inch)
  • Outlet Diameter: 63.88 mm (2.51 inch)
  • Body Diameter Maximum: 167.89 mm (6.61 inch)
  • Body Length: 450.85 mm (17.75 inch)
  • Overall Length: 559.82 mm (22.04 inch)
  • Rated Flow LR: 12.5 m³/min (441 cfm)
  • Rated Flow MR: 17.3 m³/min (611 cfm)
  • Rated Flow HR: 17.3 m³/min (611 cfm)
  • Back Pressure Low-Range: 25 mm Hg (0.98 inch Hg)
  • Back Pressure Mid-Range: 51 mm Hg (2.01 inch Hg)
  • Back Pressure High-Range: 76 mm Hg (2.99 inch Hg)
  • Attenuation LR: 12 dBA
  • Attenuation HR: 18 dBA
  • Inlet Clock Position: 6
  • Outlet Clock Position: 12
  • Style: Style 5

Packaged Dimensions

  • Packaged Length: 0.631 m (25.25 inch)
  • Packaged Width: 0.188 m (7.50 inch)
  • Packaged Height: 0.188 m (7.50 inch)
  • Packaged Weight: 5.176 kg (11.40 lb)
  • Packaged Volume: 0.023 m3 (0.82 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 125850-08
  • HTS Code: 8708923500
  • UPC Code: 742330113868

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
INGERSOLL RAND 43876716
INGERSOLL RAND 43846716
NELSON 201558N
