• Donaldson Muffler, Round Style 5 - Donaldson M065073
1 1

Muffler, Round Style 5 - Donaldson M065073

Muffler, Round Style 5 - Donaldson M065073

£180.93
£180.93
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

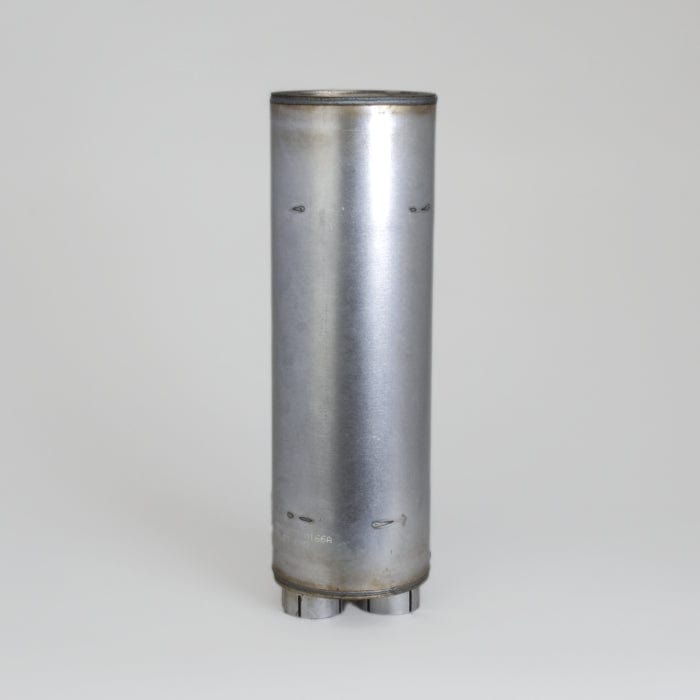

Donaldson M065073

Muffler, Round Style 5
Inlet Diameter 2.51 inch (63.88 mm)
Outlet Diameter 2.51 inch (63.88 mm)
Body Diameter Maximum 6.60 inch (167.6 mm)
Body Length 19.50 inch (495.3 mm)
Overall Length 22.00 inch (558.8 mm)
Rated Flow LR 413 cfm (11.7 m³/min)
Rated Flow MR 586 cfm (16.6 m³/min)
Rated Flow HR 717 cfm (20.3 m³/min)
Back Pressure Low-Range 0.98 inch Hg (25 mm Hg)
Back Pressure Mid-Range 2.01 inch Hg (51 mm Hg)
Back Pressure High-Range 2.99 inch Hg (76 mm Hg)
Attenuation LR 15 dBA
Attenuation HR 20 dBA
Inlet Clock Position 6:00
Outlet Clock Position 12:00
Style Style 5
View full details

Specifications

Attributes

  • Inlet Diameter: 63.88 mm (2.51 inch)
  • Outlet Diameter: 63.88 mm (2.51 inch)
  • Body Diameter Maximum: 167.6 mm (6.60 inch)
  • Body Length: 495.3 mm (19.50 inch)
  • Overall Length: 558.8 mm (22.00 inch)
  • Rated Flow LR: 11.7 m³/min (413 cfm)
  • Rated Flow MR: 16.6 m³/min (586 cfm)
  • Rated Flow HR: 20.3 m³/min (717 cfm)
  • Back Pressure Low-Range: 25 mm Hg (0.98 inch Hg)
  • Back Pressure Mid-Range: 51 mm Hg (2.01 inch Hg)
  • Back Pressure High-Range: 76 mm Hg (2.99 inch Hg)
  • Attenuation LR: 15 dBA
  • Attenuation HR: 20 dBA
  • Inlet Clock Position: 6
  • Outlet Clock Position: 12
  • Style: Style 5

Packaged Dimensions

  • Packaged Length: 0.619 m (24.75 inch)
  • Packaged Width: 0.198 m (7.90 inch)
  • Packaged Height: 0.188 m (7.50 inch)
  • Packaged Weight: 5.244 kg (11.55 lb)
  • Packaged Volume: 0.024 m3 (0.85 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 125850-08
  • HTS Code: 8708923500
  • UPC Code: 742330004692

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
CASE/CASE IH NM065073
CLARK 2797478
GRIMMER SCHMIDT 12466144
HEAVY DUTY MFG 31242
HURRICANE COMPRESSOR 12470842
INGERSOLL RAND 46634150
INGERSOLL RAND RM46634150
INGERSOLL RAND RM4664150
INGERSOLL RAND 43846716
INTERNATIONAL DCM065073
JLG 10837799
LULL 10837799
LULL 37799X
TAYLOR 2403783
TRAK INTERNATIONAL 8275035
