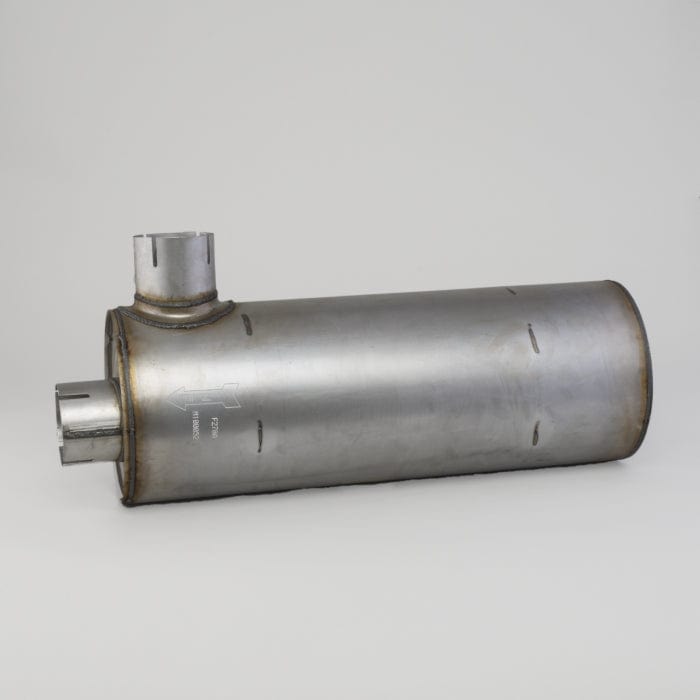

Muffler, Round Style 4 - Donaldson M100052

Muffler, Round Style 4 - Donaldson M100052

£329.39
£329.39
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson M100052

Muffler, Round Style 4
Inlet Diameter 4.02 inch (102.11 mm)
Outlet Diameter 4.02 inch (102.11 mm)
Body Diameter Maximum 10.08 inch (256 mm)
Body Length 27.75 inch (704.8 mm)
Overall Length 30.75 inch (781 mm)
Rated Flow LR 968 cfm (27.4 m³/min)
Rated Flow MR 1370 cfm (38.8 m³/min)
Rated Flow HR 1677 cfm (47.5 m³/min)
Back Pressure Low-Range 0.98 inch Hg (25 mm Hg)
Back Pressure Mid-Range 2.01 inch Hg (51 mm Hg)
Back Pressure High-Range 2.99 inch Hg (76 mm Hg)
Attenuation LR 13 dBA
Attenuation HR 18 dBA
Inlet Clock Position 6:00
Outlet Clock Position 2:00
Style Style 4
View full details

Specifications

Attributes

  • Inlet Diameter: 102.11 mm (4.02 inch)
  • Outlet Diameter: 102.11 mm (4.02 inch)
  • Body Diameter Maximum: 256 mm (10.08 inch)
  • Body Length: 704.8 mm (27.75 inch)
  • Overall Length: 781 mm (30.75 inch)
  • Rated Flow LR: 27.4 m³/min (968 cfm)
  • Rated Flow MR: 38.8 m³/min (1370 cfm)
  • Rated Flow HR: 47.5 m³/min (1677 cfm)
  • Back Pressure Low-Range: 25 mm Hg (0.98 inch Hg)
  • Back Pressure Mid-Range: 51 mm Hg (2.01 inch Hg)
  • Back Pressure High-Range: 76 mm Hg (2.99 inch Hg)
  • Attenuation LR: 13 dBA
  • Attenuation HR: 18 dBA
  • Inlet Clock Position: 6
  • Outlet Clock Position: 2
  • Style: Style 4

Packaged Dimensions

  • Packaged Length: 0.897 m (35.88 inch)
  • Packaged Width: 0.388 m (15.50 inch)
  • Packaged Height: 0.275 m (11.00 inch)
  • Packaged Weight: 13.164 kg (29.00 lb)
  • Packaged Volume: 0.099 m3 (3.54 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 125850-07
  • HTS Code: 8708923500
  • UPC Code: 742330005422

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
A P PARTS 3677
A P PARTS 3677Q
AP EXHAUST PRODUCTS INC 3677
FORD 9575M100052
FREIGHTLINER DNM100052
HEAVY DUTY MFG 31139
INTERNATIONAL DCM100052
INTERNATIONAL 315120C91
INTERNATIONAL 444229C1
INTERNATIONAL 256017C91
INTERNATIONAL 447662C1
INTERNATIONAL 439797C1
INTERNATIONAL 440377C1
MACK 2191M100052
NELSON 86151M
RIKER 10930
RIKER 19030
STEMCO 1901289
STEMCO 1909860
TRUCKEX 3918
TRUCKEX 3677
WALKER MANUFACTURING 21968
WESTERN STAR TRUCK 100052
