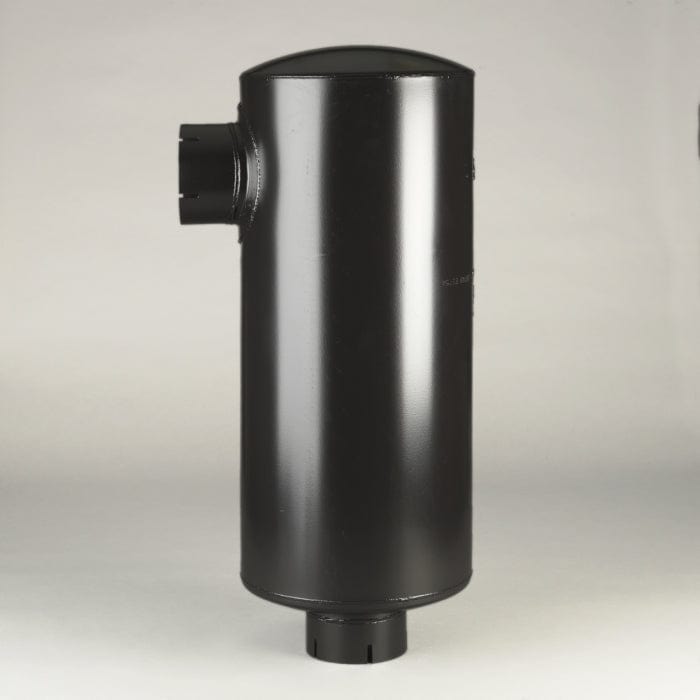

Muffler, Round Style 3/Style 4 - Donaldson M120749

Muffler, Round Style 3/Style 4 - Donaldson M120749

£584.12
£584.12
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson M120749

Muffler, Round Style 3/Style 4
Inlet Diameter 5.03 inch (127.64 mm)
Outlet Diameter 5.03 inch (127.64 mm)
Body Diameter Maximum 11.84 inch (300.7 mm)
Body Length 25.75 inch (654 mm)
Overall Length 31.69 inch (804.9 mm)
Rated Flow LR 1762 cfm (49.9 m³/min)
Rated Flow MR 2447 cfm (69.3 m³/min)
Rated Flow HR 2447 cfm (69.3 m³/min)
Back Pressure Low-Range 0.98 inch Hg (25 mm Hg)
Back Pressure Mid-Range 2.01 inch Hg (51 mm Hg)
Back Pressure High-Range 2.01 inch Hg (51 mm Hg)
Attenuation LR 12 dBA
Attenuation HR 18 dBA
Inlet Clock Position 6:00
Style Style 3/Style 4
View full details

Specifications

Attributes

  • Inlet Diameter: 127.64 mm (5.03 inch)
  • Outlet Diameter: 127.64 mm (5.03 inch)
  • Body Diameter Maximum: 300.7 mm (11.84 inch)
  • Body Length: 654 mm (25.75 inch)
  • Overall Length: 804.9 mm (31.69 inch)
  • Rated Flow LR: 49.9 m³/min (1762 cfm)
  • Rated Flow MR: 69.3 m³/min (2447 cfm)
  • Rated Flow HR: 69.3 m³/min (2447 cfm)
  • Back Pressure Low-Range: 25 mm Hg (0.98 inch Hg)
  • Back Pressure Mid-Range: 51 mm Hg (2.01 inch Hg)
  • Back Pressure High-Range: 51 mm Hg (2.01 inch Hg)
  • Attenuation LR: 12 dBA
  • Attenuation HR: 18 dBA
  • Inlet Clock Position: 6
  • Style: Style 3/Style 4

Packaged Dimensions

  • Packaged Length: 0.813 m (32.50 inch)
  • Packaged Width: 0.381 m (15.25 inch)
  • Packaged Height: 0.300 m (12.00 inch)
  • Packaged Weight: 13.388 kg (29.49 lb)
  • Packaged Volume: 0.096 m3 (3.44 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 125850-08
  • HTS Code: 8708923500
  • UPC Code: 742330114063

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
NELSON 201577N
PRINOTH 114666460
SEAGRAVE P3423079
