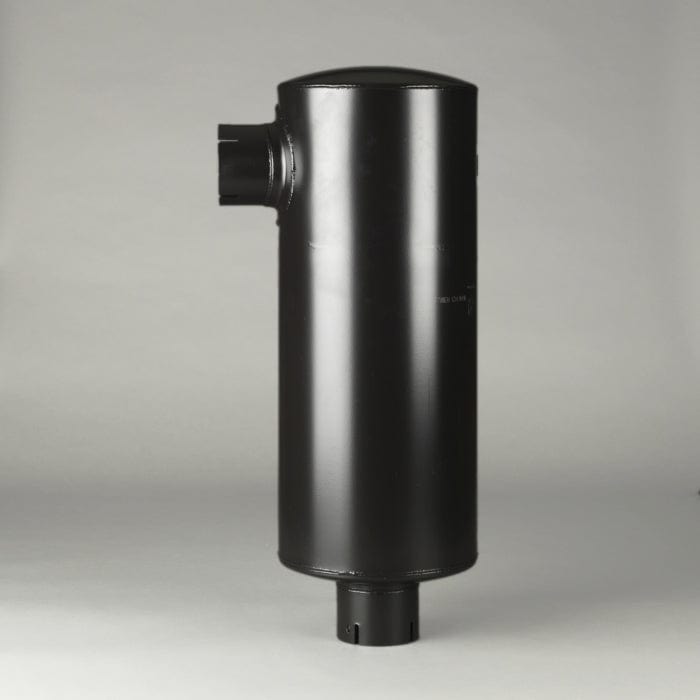

Muffler, Round Style 3/Style 4 - Donaldson M101169

Muffler, Round Style 3/Style 4 - Donaldson M101169

£329.59
£329.59
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson M101169

Muffler, Round Style 3/Style 4
View full details

Specifications

Attributes

  • Inlet Diameter: 102.11 mm (4.02 inch)
  • Outlet Diameter: 102.11 mm (4.02 inch)
  • Body Diameter Maximum: 256 mm (10.08 inch)
  • Body Length: 603.2 mm (23.75 inch)
  • Overall Length: 742.2 mm (29.22 inch)
  • Rated Flow LR: 31.9 m³/min (1127 cfm)
  • Rated Flow MR: 44.4 m³/min (1568 cfm)
  • Rated Flow HR: 56.6 m³/min (1999 cfm)
  • Back Pressure Low-Range: 25 mm Hg (0.98 inch Hg)
  • Back Pressure Mid-Range: 51 mm Hg (2.01 inch Hg)
  • Back Pressure High-Range: 51 mm Hg (2.01 inch Hg)
  • Attenuation LR: 12 dBA
  • Attenuation HR: 18 dBA
  • Inlet Clock Position: 6
  • Style: Style 3/Style 4

Packaged Dimensions

  • Packaged Length: 0.888 m (35.50 inch)
  • Packaged Width: 0.350 m (14.00 inch)
  • Packaged Height: 0.275 m (11.00 inch)
  • Packaged Weight: 10.174 kg (22.41 lb)
  • Packaged Volume: 0.089 m3 (3.16 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 125850-08
  • HTS Code: 8708923500
  • UPC Code: 742330114018

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
ASTEC UNDERGROUND AU100240
BADGER 1000146
FREIGHTLINER DNM101169
GRADALL 80973013
HURRICANE COMPRESSOR 12471558
INGERSOLL RAND 13166871
MORBARK 29228349
NELSON 201572N
NEW HOLLAND 10925
OXBO 402744
PETTIBONE LL847458
VERMEER 163642518
