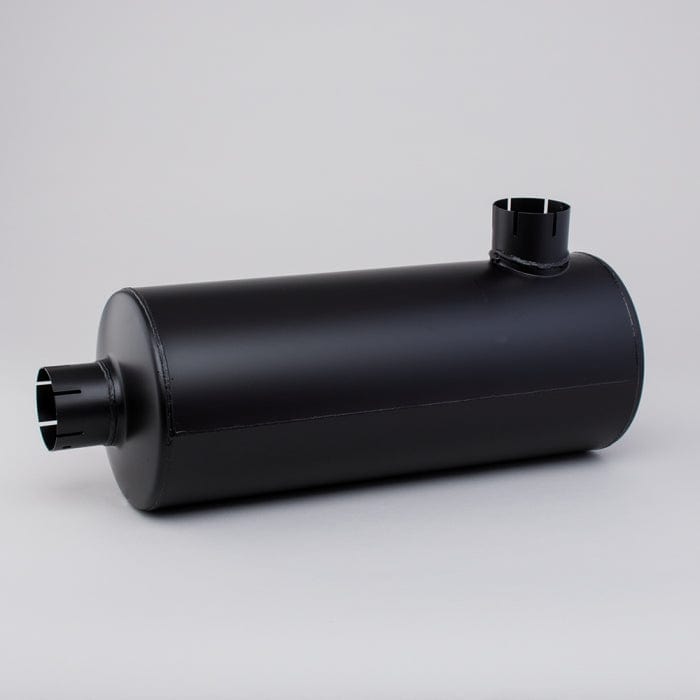

Muffler, Round Style 3/Style 4 - Donaldson M085409

Muffler, Round Style 3/Style 4 - Donaldson M085409

£314.42
£314.42
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson M085409

Muffler, Round Style 3/Style 4
Inlet Diameter 3.02 inch (76.66 mm)
Outlet Diameter 3.02 inch (76.66 mm)
Body Diameter Maximum 8.46 inch (215 mm)
Body Length 19.75 inch (501.6 mm)
Overall Length 24.27 inch (616.4 mm)
Rated Flow LR 636 cfm (18 m³/min)
Rated Flow MR 883 cfm (25 m³/min)
Rated Flow HR 883 cfm (25 m³/min)
Back Pressure Low-Range 0.98 inch Hg (25 mm Hg)
Back Pressure Mid-Range 2.01 inch Hg (51 mm Hg)
Back Pressure High-Range 2.01 inch Hg (51 mm Hg)
Attenuation LR 12 dBA
Attenuation HR 18 dBA
Inlet Clock Position 6:00
Style Style 3/Style 4
View full details

Specifications

Attributes

  • Inlet Diameter: 76.66 mm (3.02 inch)
  • Outlet Diameter: 76.66 mm (3.02 inch)
  • Body Diameter Maximum: 215 mm (8.46 inch)
  • Body Length: 501.6 mm (19.75 inch)
  • Overall Length: 616.4 mm (24.27 inch)
  • Rated Flow LR: 18 m³/min (636 cfm)
  • Rated Flow MR: 25 m³/min (883 cfm)
  • Rated Flow HR: 25 m³/min (883 cfm)
  • Back Pressure Low-Range: 25 mm Hg (0.98 inch Hg)
  • Back Pressure Mid-Range: 51 mm Hg (2.01 inch Hg)
  • Back Pressure High-Range: 51 mm Hg (2.01 inch Hg)
  • Attenuation LR: 12 dBA
  • Attenuation HR: 18 dBA
  • Inlet Clock Position: 6
  • Style: Style 3/Style 4

Packaged Dimensions

  • Packaged Length: 0.681 m (27.25 inch)
  • Packaged Width: 0.291 m (11.63 inch)
  • Packaged Height: 0.219 m (8.75 inch)
  • Packaged Weight: 7.153 kg (15.76 lb)
  • Packaged Volume: 0.045 m3 (1.60 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 125850-06
  • HTS Code: 8708923500
  • UPC Code: 742330113905

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
AG CHEM EQUIPMENT 125159
AGCO WR125159
ASTEC UNDERGROUND AU109775
BOSS INDUSTRIES 304067
BRODERSON 060094529
GROVE 7642100042
JLG 3220079
MANITOWOC 7642100042
MI-JACK 33170039
NELSON 201562N
NEW HOLLAND FF2391368
PERKINS 13000529
