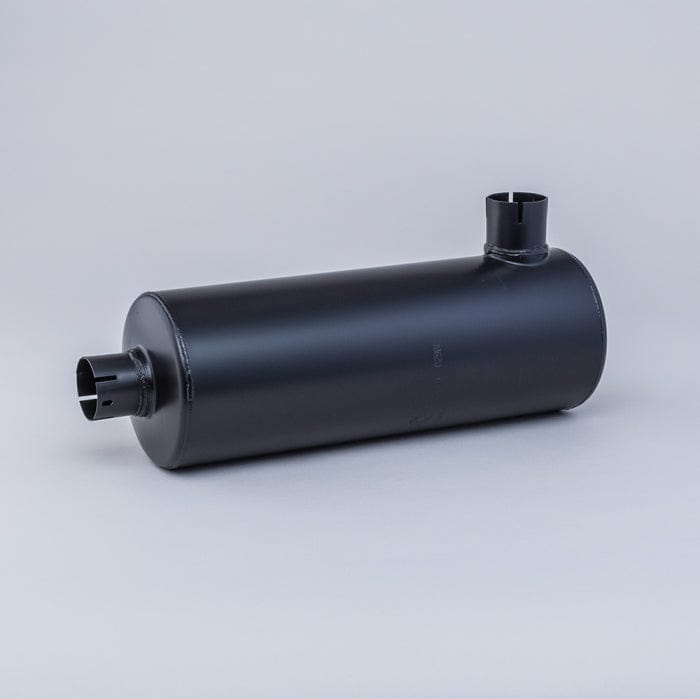

Muffler, Round Style 3/Style 4 - Donaldson M060481

Muffler, Round Style 3/Style 4 - Donaldson M060481

£217.83
£217.83
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson M060481

Muffler, Round Style 3/Style 4
Inlet Diameter 2.02 inch (51.31 mm)
Outlet Diameter 2.02 inch (51.31 mm)
Body Diameter Maximum 5.99 inch (152.2 mm)
Body Length 15.75 inch (400 mm)
Overall Length 19.25 inch (488.95 mm)
Rated Flow LR 283 cfm (8 m³/min)
Rated Flow MR 392 cfm (11.1 m³/min)
Rated Flow HR 392 cfm (11.1 m³/min)
Back Pressure Low-Range 0.98 inch Hg (25 mm Hg)
Back Pressure Mid-Range 2.01 inch Hg (51 mm Hg)
Back Pressure High-Range 2.01 inch Hg (51 mm Hg)
Attenuation LR 12 dBA
Attenuation HR 18 dBA
Inlet Clock Position 6:00
Style Style 3/Style 4
View full details

Specifications

Attributes

  • Inlet Diameter: 51.31 mm (2.02 inch)
  • Outlet Diameter: 51.31 mm (2.02 inch)
  • Body Diameter Maximum: 152.2 mm (5.99 inch)
  • Body Length: 400 mm (15.75 inch)
  • Overall Length: 488.95 mm (19.25 inch)
  • Rated Flow LR: 8 m³/min (283 cfm)
  • Rated Flow MR: 11.1 m³/min (392 cfm)
  • Rated Flow HR: 11.1 m³/min (392 cfm)
  • Back Pressure Low-Range: 25 mm Hg (0.98 inch Hg)
  • Back Pressure Mid-Range: 51 mm Hg (2.01 inch Hg)
  • Back Pressure High-Range: 51 mm Hg (2.01 inch Hg)
  • Attenuation LR: 12 dBA
  • Attenuation HR: 18 dBA
  • Inlet Clock Position: 6
  • Style: Style 3/Style 4

Packaged Dimensions

  • Packaged Length: 0.528 m (21.10 inch)
  • Packaged Width: 0.193 m (7.70 inch)
  • Packaged Height: 0.188 m (7.50 inch)
  • Packaged Weight: 4.018 kg (8.85 lb)
  • Packaged Volume: 0.020 m3 (0.71 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 125850-08
  • HTS Code: 8708923500
  • UPC Code: 742330113806

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
BOSS INDUSTRIES 307577
CASE/CASE IH NM060481
HEAVY DUTY MFG 31235
NELSON 201552N
NELSON 86190M
