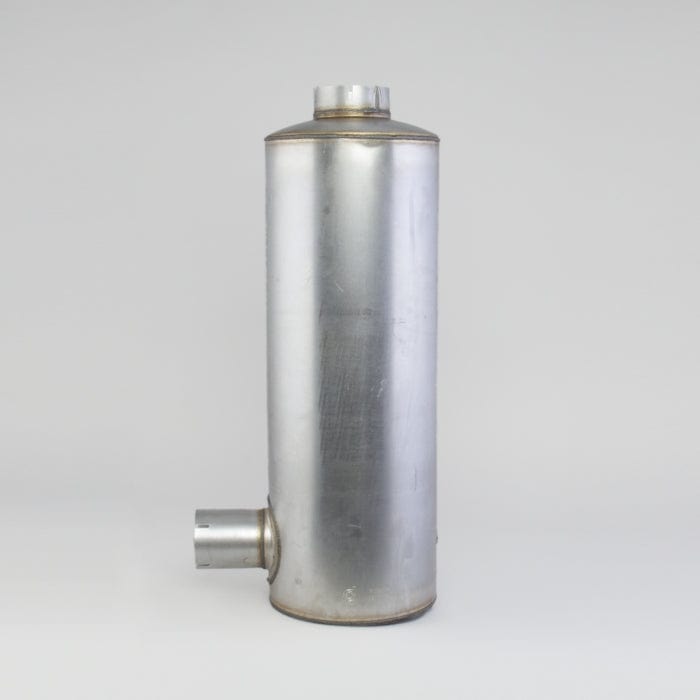

Muffler, Round Style 3 - Donaldson M120598

Muffler, Round Style 3 - Donaldson M120598

£517.52
£517.52
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson M120598

Muffler, Round Style 3
Inlet Diameter 4.02 inch (102 mm)
Outlet Diameter 5.03 inch (127.64 mm)
Body Diameter Maximum 12.01 inch (305 mm)
Body Length 31.88 inch (809.75 mm)
Overall Length 35.50 inch (901.7 mm)
Rated Flow LR 1307 cfm (37 m³/min)
Rated Flow MR 1847 cfm (52.3 m³/min)
Rated Flow HR 2264 cfm (64.1 m³/min)
Back Pressure Low-Range 0.98 inch Hg (25 mm Hg)
Back Pressure Mid-Range 2.01 inch Hg (51 mm Hg)
Back Pressure High-Range 2.99 inch Hg (76 mm Hg)
Attenuation LR 12 dBA
Attenuation HR 18 dBA
Inlet Clock Position 6:00
Style Style 3
View full details

Specifications

Attributes

  • Inlet Diameter: 102 mm (4.02 inch)
  • Outlet Diameter: 127.64 mm (5.03 inch)
  • Body Diameter Maximum: 305 mm (12.01 inch)
  • Body Length: 809.75 mm (31.88 inch)
  • Overall Length: 901.7 mm (35.50 inch)
  • Rated Flow LR: 37 m³/min (1307 cfm)
  • Rated Flow MR: 52.3 m³/min (1847 cfm)
  • Rated Flow HR: 64.1 m³/min (2264 cfm)
  • Back Pressure Low-Range: 25 mm Hg (0.98 inch Hg)
  • Back Pressure Mid-Range: 51 mm Hg (2.01 inch Hg)
  • Back Pressure High-Range: 76 mm Hg (2.99 inch Hg)
  • Attenuation LR: 12 dBA
  • Attenuation HR: 18 dBA
  • Inlet Clock Position: 6
  • Style: Style 3

Packaged Dimensions

  • Packaged Length: 0.988 m (39.50 inch)
  • Packaged Width: 0.463 m (18.50 inch)
  • Packaged Height: 0.325 m (13.00 inch)
  • Packaged Weight: 18.160 kg (40.00 lb)
  • Packaged Volume: 0.154 m3 (5.50 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 125850-05
  • HTS Code: 8708923500
  • UPC Code: 742330116029

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
FREIGHTLINER DNM120598
