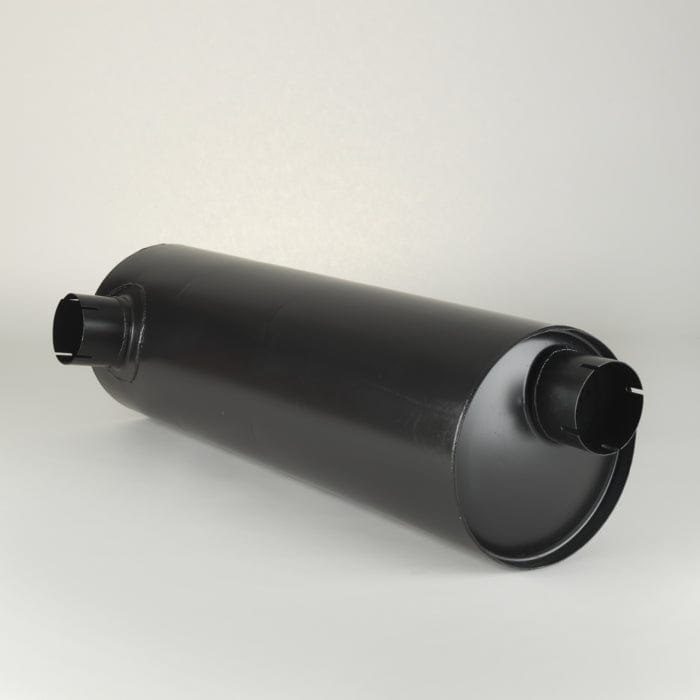

Muffler, Round Style 3 - Donaldson M110479

Muffler, Round Style 3 - Donaldson M110479

£461.51
£461.51
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson M110479

Muffler, Round Style 3
Inlet Diameter 4.02 inch (102.11 mm)
Outlet Diameter 4.02 inch (102.11 mm)
Body Diameter Maximum 11.08 inch (281.4 mm)
Body Length 36.00 inch (914.4 mm)
Overall Length 39.00 inch (990.6 mm)
Rated Flow LR 929 cfm (26.3 m³/min)
Rated Flow MR 1314 cfm (37.2 m³/min)
Rated Flow HR 1607 cfm (45.5 m³/min)
Back Pressure Low-Range 0.98 inch Hg (25 mm Hg)
Back Pressure Mid-Range 2.01 inch Hg (51 mm Hg)
Back Pressure High-Range 2.99 inch Hg (76 mm Hg)
Attenuation LR 19 dBA
Attenuation HR 25 dBA
Inlet Clock Position 6:00
Outlet Clock Position 3:00
Style Style 3
View full details

Specifications

Attributes

  • Inlet Diameter: 102.11 mm (4.02 inch)
  • Outlet Diameter: 102.11 mm (4.02 inch)
  • Body Diameter Maximum: 281.4 mm (11.08 inch)
  • Body Length: 914.4 mm (36.00 inch)
  • Overall Length: 990.6 mm (39.00 inch)
  • Rated Flow LR: 26.3 m³/min (929 cfm)
  • Rated Flow MR: 37.2 m³/min (1314 cfm)
  • Rated Flow HR: 45.5 m³/min (1607 cfm)
  • Back Pressure Low-Range: 25 mm Hg (0.98 inch Hg)
  • Back Pressure Mid-Range: 51 mm Hg (2.01 inch Hg)
  • Back Pressure High-Range: 76 mm Hg (2.99 inch Hg)
  • Attenuation LR: 19 dBA
  • Attenuation HR: 25 dBA
  • Inlet Clock Position: 6
  • Outlet Clock Position: 3
  • Style: Style 3

Packaged Dimensions

  • Packaged Length: 1.038 m (41.50 inch)
  • Packaged Width: 0.388 m (15.50 inch)
  • Packaged Height: 0.350 m (14.00 inch)
  • Packaged Weight: 11.350 kg (25.00 lb)
  • Packaged Volume: 0.146 m3 (5.21 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 125850-06
  • HTS Code: 8708923500
  • UPC Code: 742330005781

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
A P PARTS 3927
AP EXHAUST PRODUCTS INC 3927
GROVE 80015981
HEAVY DUTY MFG 31479
INGERSOLL RAND 22453625
INTERNATIONAL DCM110479
MANITOWOC 7642100004
NELSON 86724M
TRUCKEX 3927
