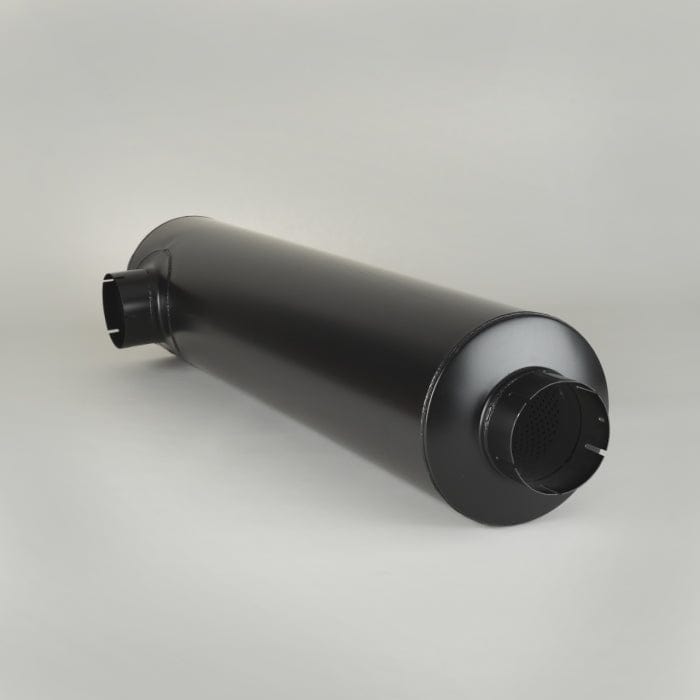

Muffler, Round Style 3 - Donaldson M100213

Attributes

• Inlet Diameter: 127.4 mm (5.02 inch)
• Outlet Diameter: 127.4 mm (5.02 inch)
• Body Diameter Maximum: 255.5 mm (10.06 inch)
• Body Length: 1130.3 mm (44.50 inch)
• Overall Length: 1219.2 mm (48.00 inch)
• Rated Flow LR: 39.5 m³/min (1395 cfm)
• Rated Flow MR: 55.8 m³/min (1971 cfm)
• Rated Flow HR: 68.3 m³/min (2412 cfm)
• Back Pressure Low-Range: 25 mm Hg (0.98 inch Hg)
• Back Pressure Mid-Range: 51 mm Hg (2.01 inch Hg)
• Back Pressure High-Range: 76 mm Hg (2.99 inch Hg)
• Attenuation LR: 13 dBA
• Attenuation HR: 18 dBA
• Inlet Clock Position: 6
• Style: Style 3

Packaged Dimensions

• Packaged Length: 1.300 m (52.00 inch)
• Packaged Width: 0.350 m (14.00 inch)
• Packaged Height: 0.281 m (11.25 inch)
• Packaged Weight: 16.526 kg (36.40 lb)
• Packaged Volume: 0.133 m3 (4.74 ft3)

Other Information

• Country of Origin: United States
• NMFC Code: 125850-07
• HTS Code: 8708923500
• UPC Code: 742330005460
