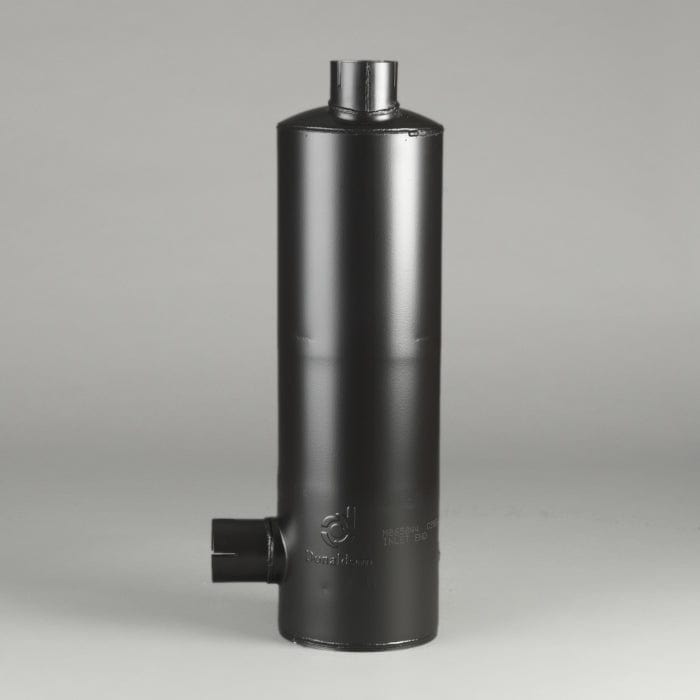

Muffler, Round Style 3 - Donaldson M065044

Muffler, Round Style 3 - Donaldson M065044

£271.92
£271.92
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson M065044

Muffler, Round Style 3
Inlet Diameter 2.51 inch (63.88 mm)
Outlet Diameter 2.51 inch (63.88 mm)
Body Diameter Maximum 6.61 inch (168 mm)
Body Length 20.63 inch (524.13 mm)
Overall Length 23.50 inch (596.9 mm)
Rated Flow LR 325 cfm (9.2 m³/min)
Rated Flow MR 459 cfm (13 m³/min)
Rated Flow HR 565 cfm (16 m³/min)
Back Pressure Low-Range 0.98 inch Hg (25 mm Hg)
Back Pressure Mid-Range 2.01 inch Hg (51 mm Hg)
Back Pressure High-Range 2.99 inch Hg (76 mm Hg)
Attenuation LR 15 dBA
Attenuation HR 20 dBA
Inlet Clock Position 6:00
Outlet Clock Position 9:00
Style Style 3
