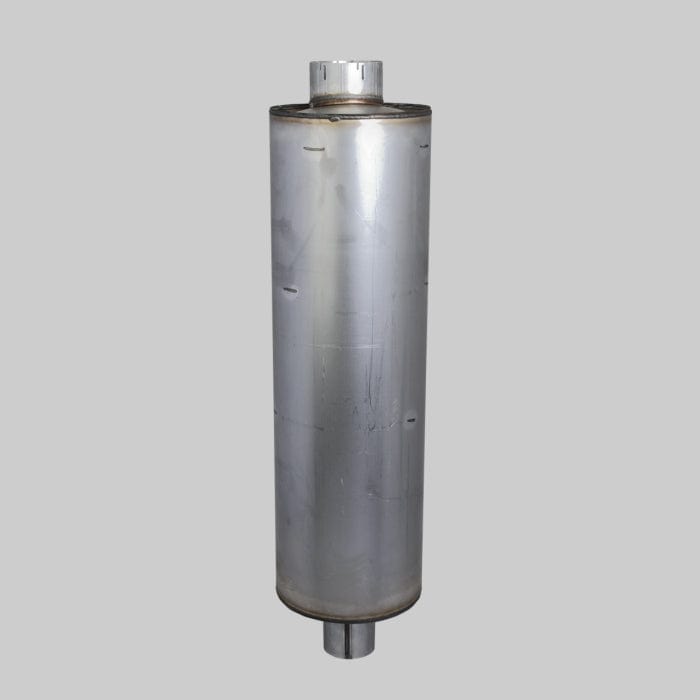

• Donaldson Muffler, Round Style 2 - Donaldson M111028
1 1

Muffler, Round Style 2 - Donaldson M111028

Muffler, Round Style 2 - Donaldson M111028

£380.15
£380.15
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson M111028

Muffler, Round Style 2
Inlet Diameter 4.00 inch (101.6 mm)
Outlet Diameter 5.00 inch (127 mm)
Body Diameter Maximum 11.08 inch (281.4 mm)
Body Length 35.50 inch (901.7 mm)
Overall Length 44.00 inch (1117.6 mm)
Rated Flow LR 1381 cfm (39.1 m³/min)
Rated Flow MR 1953 cfm (55.3 m³/min)
Rated Flow HR 2391 cfm (67.7 m³/min)
Back Pressure Low-Range 0.98 inch Hg (25 mm Hg)
Back Pressure Mid-Range 2.01 inch Hg (51 mm Hg)
Back Pressure High-Range 2.99 inch Hg (76 mm Hg)
Attenuation LR 15 dBA
Attenuation HR 18 dBA
Outlet Clock Position 12:00
Style Style 2A
View full details

Specifications

Attributes

  • Inlet Diameter: 101.6 mm (4.00 inch)
  • Outlet Diameter: 127 mm (5.00 inch)
  • Body Diameter Maximum: 281.4 mm (11.08 inch)
  • Body Length: 901.7 mm (35.50 inch)
  • Overall Length: 1117.6 mm (44.00 inch)
  • Rated Flow LR: 39.1 m³/min (1381 cfm)
  • Rated Flow MR: 55.3 m³/min (1953 cfm)
  • Rated Flow HR: 67.7 m³/min (2391 cfm)
  • Back Pressure Low-Range: 25 mm Hg (0.98 inch Hg)
  • Back Pressure Mid-Range: 51 mm Hg (2.01 inch Hg)
  • Back Pressure High-Range: 76 mm Hg (2.99 inch Hg)
  • Attenuation LR: 15 dBA
  • Attenuation HR: 18 dBA
  • Outlet Clock Position: 12
  • Style: Style 2A

Packaged Dimensions

  • Packaged Length: 1.125 m (45.00 inch)
  • Packaged Width: 0.294 m (11.75 inch)
  • Packaged Height: 0.291 m (11.63 inch)
  • Packaged Weight: 16.094 kg (35.45 lb)
  • Packaged Volume: 0.100 m3 (3.56 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 125850-08
  • HTS Code: 8708923500
  • UPC Code: 742330116081

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
FREIGHTLINER 0418814000
FREIGHTLINER 0418814003
FREIGHTLINER 418814000
FREIGHTLINER 418814003
MERCEDES-BENZ 0418814000
MERCEDES-BENZ 0418814003
