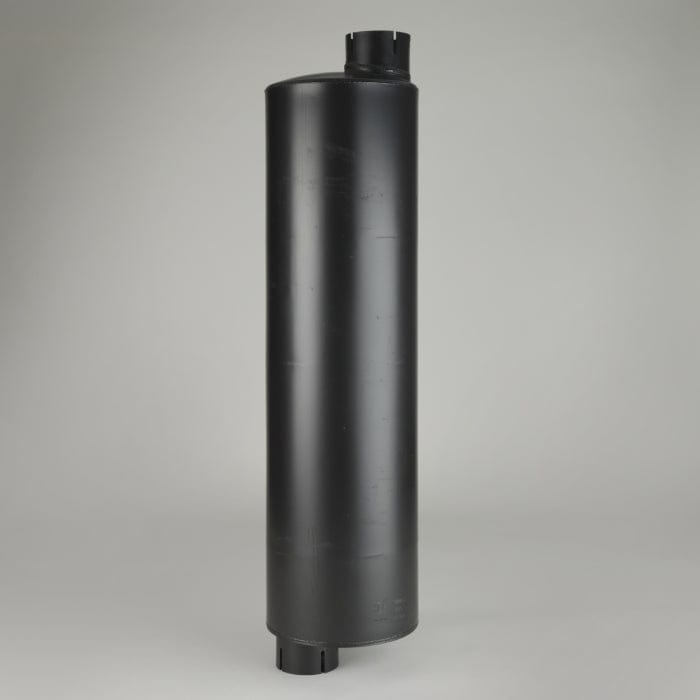

Muffler, Round Style 2 - Donaldson M100043
Muffler, Round Style 2 - Donaldson M100043
Regular price
£439.76
Regular price
Sale price
£439.76
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson M100043
Muffler, Round Style 2| Inlet Diameter | 4.02 inch (102.11 mm) |
| Outlet Diameter | 4.02 inch (102.11 mm) |
| Body Diameter Maximum | 10.10 inch (256.44 mm) |
| Body Length | 35.37 inch (898.4 mm) |
| Overall Length | 41.75 inch (1060.45 mm) |
| Rated Flow LR | 982 cfm (27.8 m³/min) |
| Rated Flow MR | 1391 cfm (39.4 m³/min) |
| Rated Flow HR | 1702 cfm (48.2 m³/min) |
| Back Pressure Low-Range | 0.98 inch Hg (25 mm Hg) |
| Back Pressure Mid-Range | 2.01 inch Hg (51 mm Hg) |
| Back Pressure High-Range | 2.99 inch Hg (76 mm Hg) |
| Attenuation LR | 15 dBA |
| Attenuation HR | 20 dBA |
| Inlet Clock Position | 6:00 |
| Outlet Clock Position | 12:00 |
| Style | Style 2 |
Share
Collapsible content
Specifications
Attributes
- Inlet Diameter: 102.11 mm (4.02 inch)
- Outlet Diameter: 102.11 mm (4.02 inch)
- Body Diameter Maximum: 256.44 mm (10.10 inch)
- Body Length: 898.4 mm (35.37 inch)
- Overall Length: 1060.45 mm (41.75 inch)
- Rated Flow LR: 27.8 m³/min (982 cfm)
- Rated Flow MR: 39.4 m³/min (1391 cfm)
- Rated Flow HR: 48.2 m³/min (1702 cfm)
- Back Pressure Low-Range: 25 mm Hg (0.98 inch Hg)
- Back Pressure Mid-Range: 51 mm Hg (2.01 inch Hg)
- Back Pressure High-Range: 76 mm Hg (2.99 inch Hg)
- Attenuation LR: 15 dBA
- Attenuation HR: 20 dBA
- Inlet Clock Position: 6
- Outlet Clock Position: 12
- Style: Style 2
Packaged Dimensions
- Packaged Length: 0.263 m (10.50 inch)
- Packaged Width: 0.263 m (10.50 inch)
- Packaged Height: 1.106 m (44.25 inch)
- Packaged Weight: 14.619 kg (32.20 lb)
- Packaged Volume: 0.079 m3 (2.82 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 125850-09
- HTS Code: 8708923500
- UPC Code: 742330005392
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AGCO | 836339052 | |
| ATLAS COPCO | 16193981 | |
| ATLAS COPCO | 1619398100 | |
| ATLAS COPCO | 16193984 | |
| AUXIFLOW | A3345404 | |
| BADGER | 76049046 | |
| BARKO HYDRAULICS | 53501019 | |
| CASE/CASE IH | 136929 | |
| CASE/CASE IH | 3612171 | |
| CASE/CASE IH | 73061486 | |
| CASE/CASE IH | 0000136929 | |
| CASE/CASE IH | 153612171 | |
| CHAMPION ROAD | 11877 | |
| COMPAIR | 1075A84440 | |
| CUB CADET | 549471C1 | |
| DART | MTM100043 | |
| DOOSAN | 51368 | |
| FIAT | 73061486 | |
| FIAT | 3612171 | |
| FIAT | 153612171 | |
| FMC | 31H0104 | |
| GILLIG | 5300248006 | |
| GRADALL | 86883067 | |
| HAVAM | HD4170 | |
| HEAVY DUTY MFG | 31043 | |
| HYSTER | 393997 | |
| INTERNATIONAL | DCM100043 | |
| JLG | 86883067 | |
| KOEHRING | 420V4383 | |
| KOMATSU | 1619398100 | |
| LBX COMPANY LLC | 31H0104 | |
| LINK BELT | 31H0104 | |
| MACK | 2ME377 | |
| MACK | 25069983 | |
| MANITOWOC | 5369600 | |
| MI-JACK | 33170099 | |
| MOXY | 051368 | |
| NELSON | 86118M | |
| NELSON | 86662M | |
| NEW HOLLAND | 153612171 | |
| NEW HOLLAND | 73061486 | |
| OSHKOSH | 120167A | |
| OTTAWA TRUCK | N0901008H | |
| OTTAWA TRUCK | N090100BH | |
| RIKER | 10918 | |
| SEDDON ATKINSON | 65297S1 | |
| TAMROCK | 501170 | |
| TEREX | 420V4383 | |
| TRUCKEX | 3911 | |
| VOLVO | 230010066 | |
| WALGAHN-MOTORENTECHN | 810322 | |
| WALGAHN-MOTORENTECHN | 00810322 |
